Single Glazed - No Fire Rating - Frameless glass partition
Verified by manufacturer 3 months ago
Life Pure 620
Life Pure 620
ISO 14021:2016
Certificate type
A range of single glazed, demountable glass partitions.
Application
- Office and conference rooms.
- Industrial and factory areas.
- Training and research facilities.
Description
With the continuous and frameless glazing Lindner Life Pure 620, a transparent and open room is created.
Aluminium profiles with powder-coated or anodised finishes provide horizontal and vertical connection to the building structure.
The partition system Lindner Life Nature is a new addition to Lindner's product portfolio. The symbiosis of wood and glass offers completely new design options, both for classically held interiors and for modern, alternate room concepts.
Features and benefits:
- Customized, project-specific solutions are possible.
- DGNB, LEED and C2C compliant.
General information
Color | Clear |
Finish | Other |
Material | Glass Aluminium Wood |
Shape | Rectangle |
Width | 1500 mm 1250 mm Manufacturer guidanceUp to. |
Height | 3500 mm Guidance for specification option: depending on glass thickness 3000 mm Manufacturer guidanceUp to. |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Product range |
Specification data - Partition panels
Unit size | |
Thickness | Manufacturer's standard. |
Partition height (nominal) | Guidance for specification option: Insert requirements, maximum 3500 mm. |
Width (nominal) | Guidance for specification option: Insert requirements, maximum 1500 mm. |
Deflection allowance (maximum) | |
Head | +5 mm/ -15 mm. |
Verticals | ±10 mm. |
Framing, fixing points and joints | Frameless. Substructure: Aluminum profiles. |
Joint treatment | |
Type | Transparent tape.Silicone. |
Finish and colour | Clear. |
Glazed panels | |
Type | Single glazed. |
Additional features | None.Glass finish - foils.Glass finish - screen printing.Glass finish - enamel. |
Door arrangement | |
Type | Manufacturer guidanceFrame and door leaf system possible. Consult manufacturer for details. |
Door frames | Manufacturer guidanceFrame and door leaf system possible. Consult manufacturer for details. |
Other features | Not required.Lindner Plus Acoustic Metal.Lindner Plus Acoustic Textile.MUTE+ board.MUTE+ skin. |
Calculated weighted sound reduction index (Rw) | 40 dB. Manufacturer guidanceTo DIN EN ISO 717-1, up to. |
Joint width | 3 mm. |
Performance | Structural performance (tested in accordance with DIN 4103, installation areas 1 and 2), non load-bearing. |
Glass thickness | 10 mm. 12 mm. 16 mm. |
Sustainability data
Material | Glass Aluminium Wood |
Recyclability | Most of the components can be reused/reprocessed |
Expected Life | 50 year |
Third party certifications
ISO 14021:2016
Lindner Life Pure 620 - Self-declaration
ISO 14021:2016
Lindner Life Nature - Self-declaration
Literature

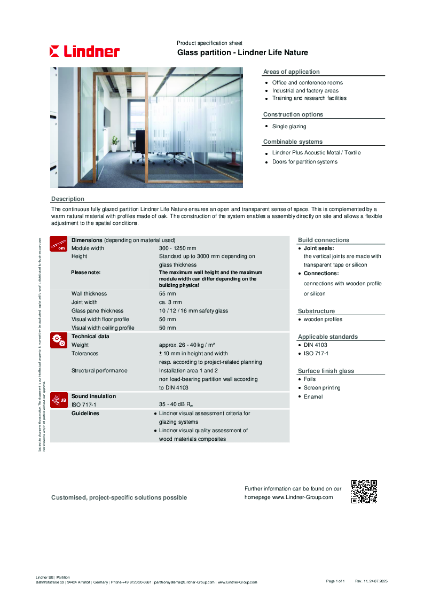

Lindner Life Pure 620 - Data sheet
Lindner Partition systems and doors - Brochure
Lindner Life Nature - Data sheet
