Single Glazed - No Fire Rating - Frameless glass partition
Single Glazed - No Fire Rating - Frameless glass partition

Verified 15 days ago

Lindner Group

Life Pure 620

Verified 15 days ago

Lindner Group

Life Nature

Summary

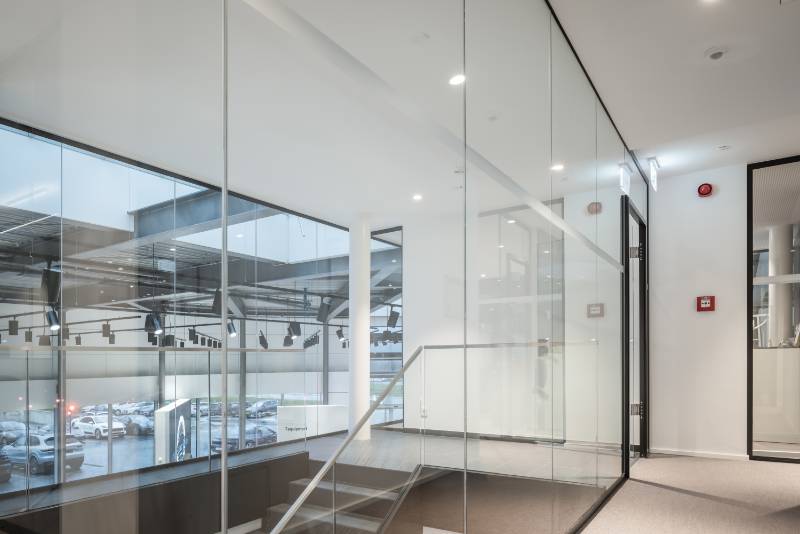

A range of single glazed, demountable glass partitions.
A range of single glazed, demountable glass partitions.
Third party certification
Color
Clear
Clear
Finish
Other
Other
Material
Glass, Aluminium, Wood
Glass, Aluminium, Wood
Shape
Rectangle
Rectangle
Width
1500 mm, 1250 mm
1500 mm, 1250 mm
Height
3500 mm, 3000 mm
3500 mm, 3000 mm

Specification

Unit size
-
-
Thickness
Manufacturer's standard.
55 mm.
Partition height (nominal)
-
-
Width (nominal)
-
-
Deflection allowance (maximum)
-
-
Head
+5 mm/ -15 mm.
±10 mm.
Verticals
±10 mm.
±10 mm.
Framing, fixing points and joints
Frameless. Substructure: Aluminum profiles.
Frameless. Substructure: Oak profiles.
Joint treatment
-
-
Type
Transparent tape., Silicone.
Transparent tape., Silicone.
Finish and colour
Clear.
Clear.
Glazed panels
-
-
Type
Single glazed.
Single glazed.
Additional features
None., Glass finish - foils., Glass finish - screen printing., Glass finish - enamel.
None., Glass finish - foils., Glass finish - screen printing., Glass finish - enamel.
Other features
Not required., Lindner Plus Acoustic Metal., Lindner Plus Acoustic Textile., MUTE+ board., MUTE+ skin.
Not required., Lindner Plus Acoustic Metal., Lindner Plus Acoustic Textile.

Additional properties

Calculated weighted sound reduction index (Rw)
40 dB.
40 dB.
Joint width
3 mm.
3 mm.
Performance
Structural performance (tested in accordance with DIN 4103, installation areas 1 and 2), non load-bearing.
Structural performance (tested in accordance with DIN 4103, installation areas 1 and 2), non load-bearing.
Glass thickness
10 mm., 12 mm., 16 mm.
10 mm., 12 mm., 16 mm.

Sustainability data

Material
Glass, Aluminium, Wood
Glass, Aluminium, Wood
Recyclability
Most of the components can be reused/reprocessed
Most of the components can be reused/reprocessed
Expected Life
50 year
50 year
