Single Glazed Edge Affinity Rebated Double Door Set

Name: Single Glazed Edge Affinity Rebated Double Door Set
Brand: Optima
SKU: ffnrnAYN9WZQMFynxt23bC

Verified by manufacturer today

A framed, double-leaf, rebated, single-glazed acoustic glass door with high acoustic performance.

Jump to:

Application

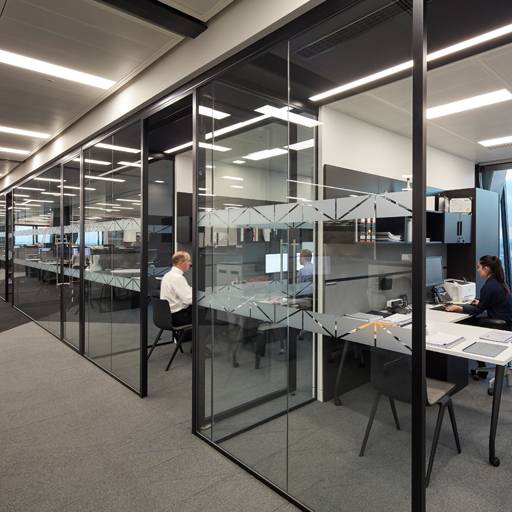

Suitable for offices and meeting rooms requiring a high level of acoustic privacy.

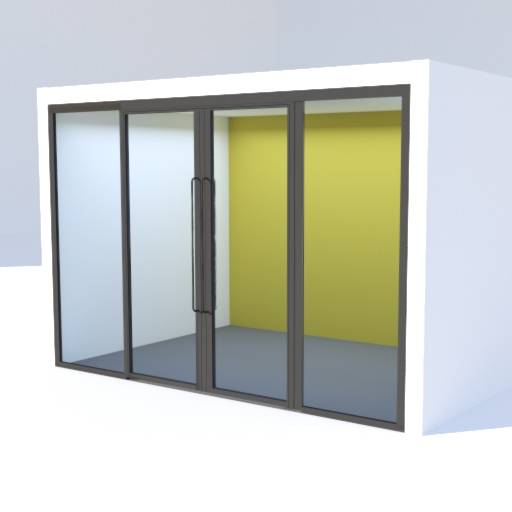

The Single Glazed Edge Affinity double door set is a rebated, framed acoustic glass door.

Features and benefits:

High-quality perimeter seals offer outstanding acoustic performance.
The door is designed for use within the Microflush door frame and can be hinged or pivoted.
78 mm-wide closing stile.
Part M-compliant clear opening included.

Color	White Silver Other Black
Finish	Anodized Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Door Leaves

Classification data
Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Doorset size	Guidance for specification option: Available up to 3000 mm in height. Leaf only: 990 mm (single leaf). Overall frame width: 2079–2099 mm.
Performance	-
Acoustic performance	39 dB. Guidance for specification option: (when used within a Microflush frame.) Manufacturer guidance (Rw, maximum):
Frame	-
Material	Aluminium.
Finish	-
Coating	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement, contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Door leaf	-
Material	Glass.
Glazing	-
Type	Single-glazed, 12.8 mm acoustic laminated glass (to BS EN 12543).
Manifestation	Guidance for specification option: Insert requirements.
Hardware	Guidance for specification option: Insert requirement, contact manufacturer for more information.
Operation	Hinges. Pivots.
Locking	Dead lock. Latch. Sash lock.
Samples required	Not required. Required.
System performance	Acoustic performance.

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Manufacturing plant location	Mill Rd, Radstock BA3, UK
Material	Glass Aluminium
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 54.8 Lower emissions Value guidance: A1-A3 See Environmental Product Declaration literature for detailed LCA data.
