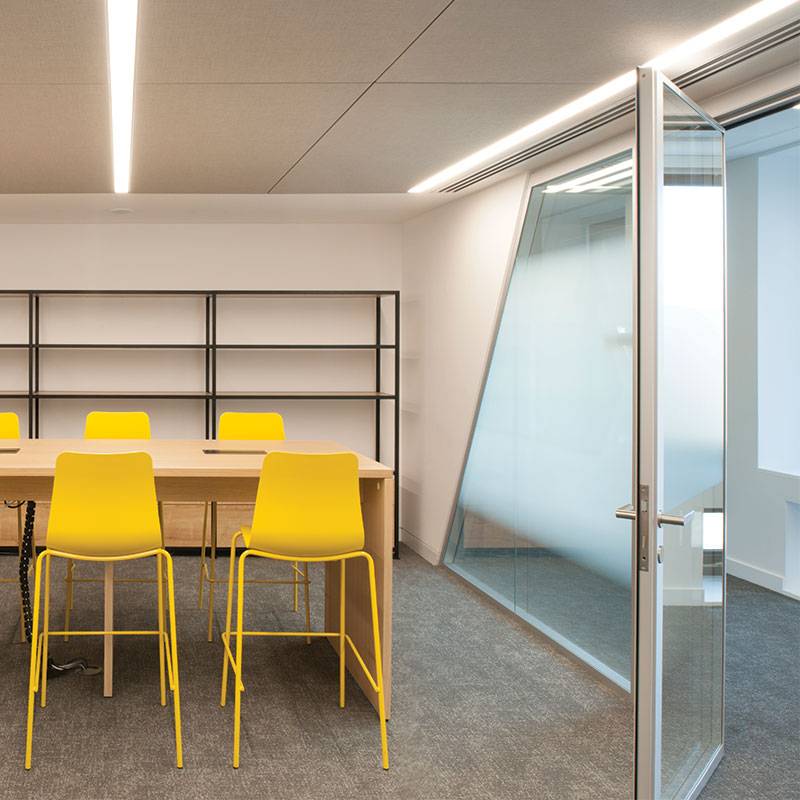

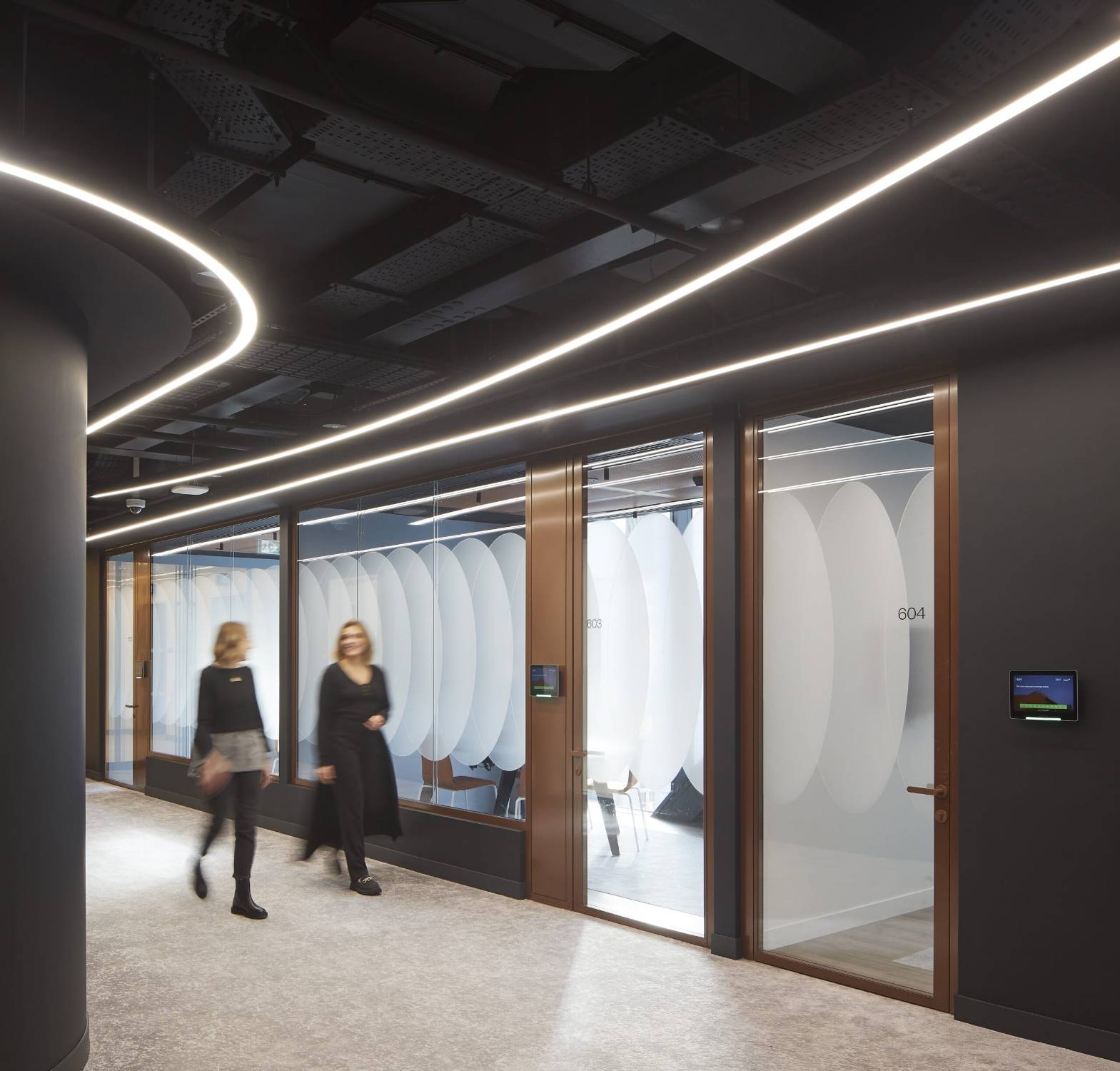

Double Glazed Edge Affinity Door
Verified by manufacturer 21 hours ago
An aluminium framed, single-leaf, double-glazed glass door providing up to Rw42dB of acoustic resistance.
Application
Suitable for applications in:
- Office and workplace buildings.
- Retail.
- Airports.
- Universities.
- Modern residential developments.
- Commercial sector environments.
Description
A framed, single-leaf, double-glazed acoustic glass door which offers high acoustic performance using high-quality perimeter seals.
Features and benefits:
- Designed for use within the Microflush door frame and can be hinged or pivoted.
- 78 mm wide closing stile.
- Part M compliant clear opening.
- Compatible with Optima’s entire range of glass partitioning systems.
General information
Color | Silver White Other Black |
Finish | Anodized Glazed Grained Laminated Polished |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: This excludes installation, moving parts, ironmongery and fire rated glass which are covered elsewhere (see Optima policy document for more information). |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Aluminium doorsets
Classification data | |
Standard | To BS EN 14179 and BS EN 12543. |
Configuration | Single leaf, single action. |
Doorset size | Manufacturer guidance
|
Performance | |
Acoustic performance | 42 dB. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Powder-coated, RAL 9010 White. |
Door leaf | |
Thickness | 6 mm + 8.8 mm. |
Material | Double glazed; 6 mm heat-soaked toughened glass (to BS EN 14179) and 8.8 mm acoustic laminate glass (to BS EN 12543). |
Glazing | |
Type | 6 mm heat soaked toughened glass and 8.8 mm laminated (acoustic) glass. |
Manifestation | Manufacturer guidanceInsert requirements; contact manufacturer for more information. |
Hardware | Guidance for specification option: Insert requirements; contact manufacturer for more information. |
Operation | Hinges. Pivots. |
Locking | Dead lock. Latch. Sash lock. |
Samples required | Not required. Required. |
System performance | Acoustic performance. |
Sustainability data
Material | Glass Aluminium |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
Literature
Literature type
Optima Doors Product Summary
000005 (3) - Warranty - Company Policy
009815 (0) - EPD - Double Glazed Doors
900001 (17) - Designer's Guide - Door Sets
