SikaProof®-P-12 - Self-adhesive sheet membrane

Verified by manufacturer 6 months ago

Sika Limited Third party certifications:
  • EPD

    EPD

    Certificate type

Flexible polyolefin (FPO) self-adhesive sheet membrane for post-applied fully bonded below ground waterproofing.

Jump to:
+44 (0)1707 394444 Website

Application

Damp-proofing, waterproofing and concrete protection for basements and other below ground structures against ground water ingress. Suitable for use on:

  • Vertical reinforced concrete walls.
  • Extensions and reconstruction works.
  • Prefabricated structures.

Description

SikaProof® P-12 is a flexible polyolefin (FPO) self-adhesive sheet membrane for post-applied, fully bonded below ground waterproofing of existing reinforced concrete structures. It is pre-coated with an adhesive sealant layer and is cold applied onto primed concrete structure by a simple peel and stick process by using SikaProof® Primer-01 as a system primer.


Features and benefits:

  • Membrane thickness 1.2 mm.
  • Will restrict the ingress of radon into buildings from naturally occurring sources.
  • Post-self-adhered, fully bonded on existing concrete structures.
  • No lateral water underflow between the concrete structure and the membrane system.
  • High flexibility and crack-bridging.
  • Validated high watertightness.
  • Easy to install with fully adhered joints (no welding required).
  • Cold applied (no heat or open flames).
  • Temporarily resistant to weathering and UV-light during construction.
  • Highly durable and resistant to aging.
  • Resistant to aggressive elements in natural ground water and soil.
  • Can be combined with other approved Sika Waterproofing/ Joint Sealing Systems.


Approvals/ standards:

  • CE Marking and Declaration of Performance to EN 13967 - Flexible sheets for waterproofing – Damp proofing and basement tanking.
  • Agrement Certificate, SikaProof® P,BBA,Certificate No.13-5075.
  • Test Report, Functionality, SikaProof P-12, WISSBAU, No. 2013-253.
  • abP Approval, SikaProof P-12, Report No. MPANRW- 2211463-1.

General information

Color

Yellow

White

Manufacturer guidance

Light yellow sheet membrane with a white release film on the adhesive side.

Material

Flexible polyolefin (FPO)

Guidance for specification option:

Membrane layer.

Polyolefin

Guidance for specification option:

Sealant/ adhesive.

Shape

Formless

Length

20000 mm

Width

1000 mm

Height

1.2 mm

Guidance for specification option:

Total thickness.

0.6 mm

Guidance for specification option:

Membrane thickness.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/20 Loose-laid plastics or rubber sheet damp-proofing

J40/120 Loose-laid plastics or rubber sheet damp-proofing

J40/35 Loose-laid plastics or rubber gas-retardant membranes

J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing

J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing

J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes

Product range

Waterproofing

Specification data - Plastics sheets

Material

Flexible polyolefin (FPO).

Purpose

Waterproofing.

Standard

To BS EN 13967.

Performance characteristics

-

Tensile strength (minimum)

To EN 12311-2, ≥6.0 N/mm².

Manufacturer guidance

Machine direction and cross direction.

Tear resistance

To EN 12310-1, ≥200 N.

Manufacturer guidance

Resistance to tearing (nail shank).

Machine direction and cross direction.

Elongation to break

To EN 12311-2, ≥350%.

Manufacturer guidance

Machine direction and cross direction.

Resistant to underground gases

Radon.

Water vapour resistance (minimum)

To EN 1931, 0.50 g/m² x 24h.

Fire performance

To EN 13501-1, Class E.

Manufacturer guidance

Reaction to fire.

Third-party certification

British Board of Agrément (BBA) certificate.

Form

Non-woven.

Physical properties

-

Colour

Light yellow.

Guidance for specification option:

Light yellow sheet membrane with a white release film on the adhesive side.

Weight (minimum)

1.20 kg/m² (-5 /+10%).

Dimensions

-

Thickness (minimum)

1.2 mm.

Width (minimum)

1 m.

Roll length (minimum)

20 m.

Primer

SikaProof® Primer-01.

Guidance for specification option:

  • Ready to use solvent-dispersed primer, available in 5 kg and 12.5 kg metal tins.
  • Consult manufacturer for details and insert requirements.

Resistance to impact

To EN 12691 (Method A), ≥200 mm.

Static load resistance

To EN 12730 (Method B), ≥20 kg.

Modulus of elasticity

To EN ISO 527-3, ≤35 N/mm² (+/- 10%).

Adhesion

To EN 1372, ≥100 N/50 mm (on primed concrete).

Manufacturer guidance

Adhesion in peel.

Shear resistance of joints (to EN 12317-2)

≥125 N/50 mm.

Crack bridging

To DIN EN 1062-7, Class A 5, no cracks.

Manufacturer guidance

Crack bridging ability.

Watertightness

To EN 1928, Pass (Method B, 24h/60 kPa).

Sustainability data

Material

Flexible polyolefin (FPO)

Guidance for specification option:

Membrane layer.

Polyolefin

Guidance for specification option:

Sealant/ adhesive.

Third party certifications

Third party certifications

EPD

EPD

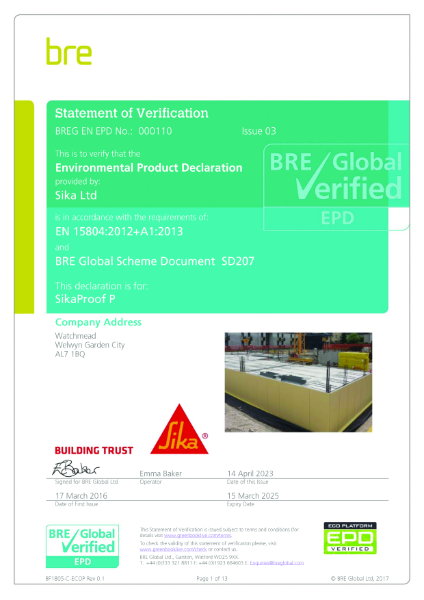

SikaProof P12 EPD
