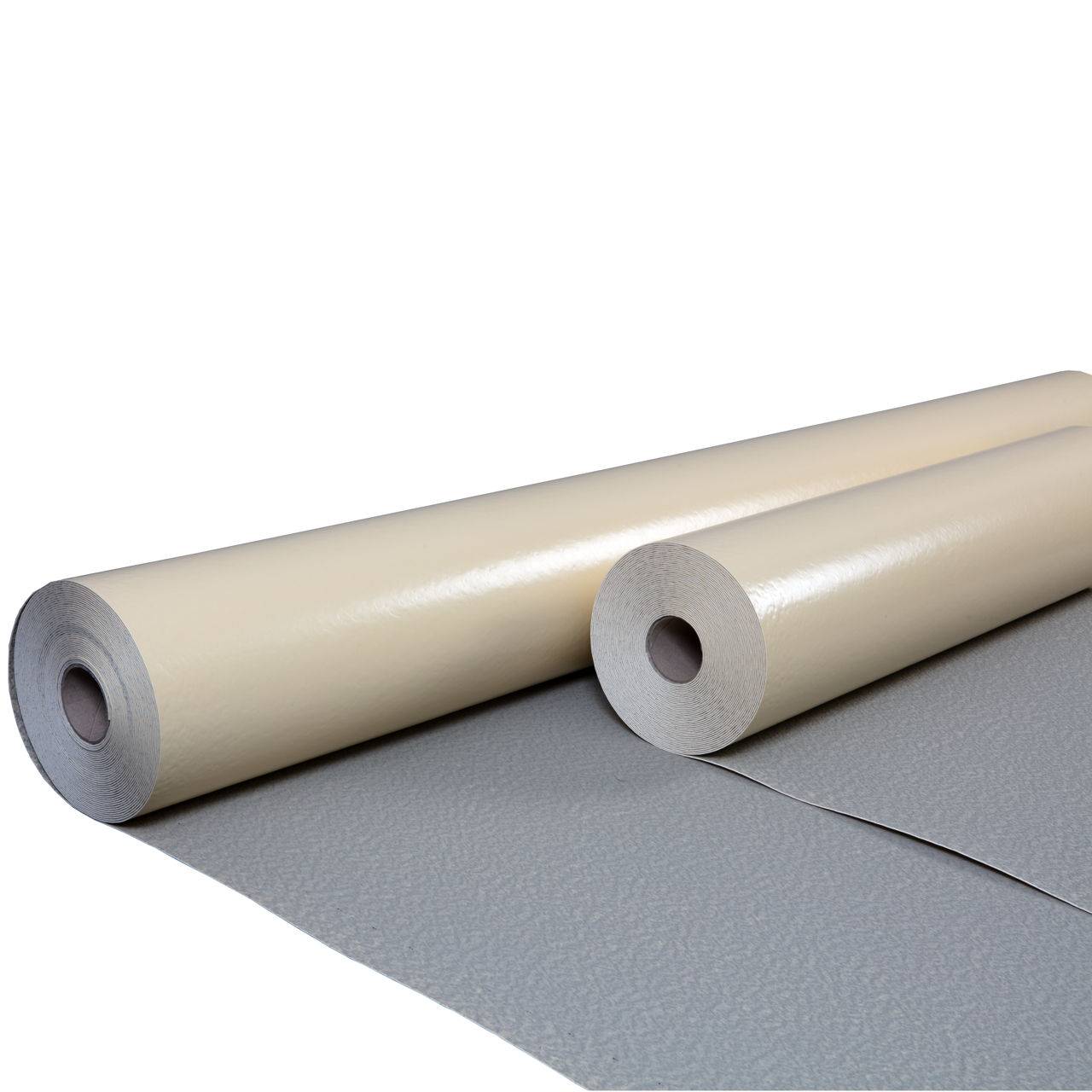

SikaProof®-A+ 08 - Sheet membrane

Name: SikaProof®-A+ 08 - Sheet membrane
Brand: Sika Limited
SKU: c9e4bfWXdFQZTgKeb3tPbF

Verified by manufacturer 25 days ago

Sika Limited

Product certifications:

BBA Agrément Certificate
Certificate type
EPD
Certificate type

Flexible polyolefin (FPO) sheet membrane for pre-applied fully bonded below ground waterproofing.

Jump to:

Request BIM

+44 (0)1707 394444 Website

Application

Damp-proofing, waterproofing and concrete protection for basements and other below ground concrete structures. Suitable for use on:

Precast reinforced concrete structures.
Cast-in-situ reinforced concrete structures.

Description

SikaProof® A+ 08 is a flexible polyolefin (FPO) based sheet membrane for below ground waterproofing of reinforced concrete structures. A special hybrid bonding layer on the membrane forms a full and permanent dual bond with the concrete structure. Joints are sealed with cold-applied tapes. The total thickness is 1.35 mm with a membrane thickness of 0.80 mm.

Features and benefits:

Dual bond: full and permanent mechanical and chemical bond with the concrete structure.
Can be used as a pre and post-applied system.
No lateral water migration between concrete and membrane.
Fast and easy installation.
High flexibility and crack-bridging capabilities.
High watertightness tested according to various standards.
Good resistance to aggressive conditions in natural ground water and soil.
Temporarily resistant to weathering and UV exposure.
Can be combined with other approved Sika® waterproofing and joint sealing systems.
Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by BRE Global.

Approvals/ standards:

CE marking and declaration of performance based on EN 13967:2012 Flexible sheets for waterproofing — Plastic and rubber damp proof sheets including plastic and rubber basement tanking sheet — Definitions and characteristics.
Watertightness functional test PG FBB Part 1, WISSBAU, Test report No. 2019-231-5-1.
Watertightness functional test PG FBB Part 1, WISSBAU, Test report No. 2019-231-4-1.

General information

Color	Yellow Guidance for specification option: Membrane layer. Grey Guidance for specification option: Bonding layer.
Material	Flexible polyolefin (FPO) Guidance for specification option: Membrane layer. Polymer-modified cement Guidance for specification option: Hybrid layer.
Shape	Formless
Length	25000 mm
Width	1000 mm 2000 mm
Height	0.80 mm Guidance for specification option: Membrane thickness.
Warranty description	15 year Guidance for specification option: https://www.sikawaterproofing.co.uk/about-sika-waterproofing/sika-concrete-and-waterproofing-guarantee-process/ 20 year Guidance for specification option: When used as part of a Dual System (Including Sika Watertight Concrete or a Sika Cavity Drain System) - https://www.sikawaterproofing.co.uk/about-sika-waterproofing/sika-concrete-and-waterproofing-guarantee-process/ 25 year Guidance for specification option: When used as part of a Triple System (Including Sika Watertight Concrete and a Sika Cavity Drain System) - https://www.sikawaterproofing.co.uk/about-sika-waterproofing/sika-concrete-and-waterproofing-guarantee-process/ Manufacturer guidance https://www.sikawaterproofing.co.uk/about-sika-waterproofing/sika-concrete-and-waterproofing-guarantee-process/

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	J40/20 Loose-laid plastics or rubber sheet damp-proofing J40/120 Loose-laid plastics or rubber sheet damp-proofing J40/35 Loose-laid plastics or rubber gas-retardant membranes J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes

Product range	Waterproofing

Specification data - Plastics sheets

Classification data
Product reference	SikaProof®-A+ 08.
Material	Flexible polyolefin (FPO). Guidance for specification option: Cement modified polymer hybrid layer.
Purpose	Waterproofing.
Standard	To BS EN 13967.
Performance characteristics	-
Tensile strength (minimum)	To EN 12311-2, ≥500 N/ 50 mm. Guidance for specification option: Accelerated Ageing in Alkaline Environment Tensile Strength: To EN 1847, Pass (28 d +23 °C); to EN 1928, Pass (Method B 24 h 60 kPa). Manufacturer guidance Longitudinal (MD) Method A and Transversal (CMD) Method A.
Elongation to break	To EN 12311-2, ≥1000%. Manufacturer guidance Longitudinal (MD) Method A and Transversal (CMD) Method A.
Resistant to underground gases	BS EN 13967.
Fire performance	To EN 13501-1, Class E. Manufacturer guidance Reaction to fire.
Form	Non-woven.
Physical properties	-
Colour	Light yellow and grey. Guidance for specification option: Light yellow membrane layer with grey bonding layer.
Weight (minimum)	1.20 kg/m² (+0.12/ -0.06). Manufacturer guidance Mass per unit area.
Dimensions	-
Thickness (minimum)	0.80 mm (membrane); 1.35 mm (total).
Width (minimum)	1 m. 2 m.
Roll length (minimum)	25 m.
Primer	SikaProof® Primer-01. Guidance for specification option: Ready to use solvent-dispersed primer, available in 5 kg and 12.5 kg metal tins. Consult manufacturer for details and insert requirements.
Components	SikaProof® Sandwich Tape and SikaProof® Tape A+ N. Guidance for specification option: SikaProof® Sandwich Tape - Double-sided adhesive overlap tape based on a polyacrylic adhesive sandwiched between release liners. SikaProof® Tape A+ N - Self-adhesive tape based on a polyacrylate adhesive with a carrier film and a release line for internal jointing.
Resistance to impact	To EN 12691 (Method A), ≥300mm.
Adhesion	To DIN EN 1372, ≥80 N / 50 mm Manufacturer guidance Adhesion in peel (to concrete after 28 days).
Shear resistance of joints (to EN 12317-2)	≥100 N/ 50 mm.
Service temperature	+35℃ (maximum); -10℃ (minimum).
Watertightness	To EN 1928, Pass (Method B, 24h/60 kPa). Guidance for specification option: Durability of Water Tightness against Chemicals: To EN 1847, Pass (28 d +23 °C); to EN 1928, Pass (Method B 24 h). Durability of Water Tightness against Ageing: To EN 1847, Pass (12 Weeks); to EN 1928, Pass (Method B 24 h 60 kPa).
Resistance	To ASTM D5385 and D5385M, Pass (up to 7 bar). Manufacturer guidance Resistance to lateral water migration.

Sustainability data

Contains Red List materials	No
Country of material origin	Switzerland
Country of product manufacture	Switzerland
Material	Flexible polyolefin (FPO) Guidance for specification option: Membrane layer. Polymer-modified cement Guidance for specification option: Hybrid layer.
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 4.3

Product certifications

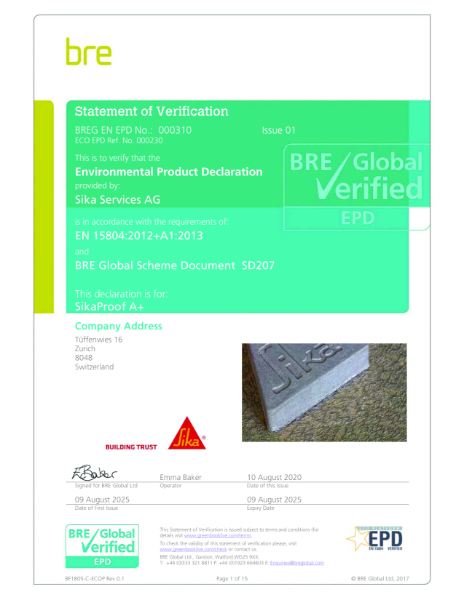

SikaProof A+08 EPD Certificate

Product certifications

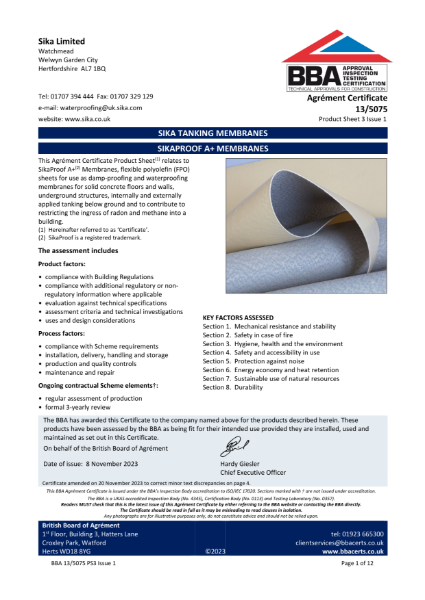

BBA Agrément Certificate

Sika Tanking Membranes

EPD

SikaProof A+08 EPD Certificate
