Sigma - Door Single

Sigma - Door Single

Troax (UK) Ltd

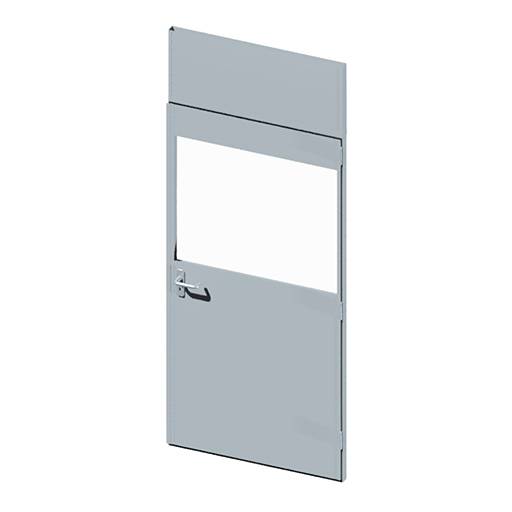

Sigma single skin steel, single hinged doors are available in a variety of styles for use with the Sigma panel partitioning wall system.

Jump to:
+44 (0)1793 542000 www.troax.com/gb
Application

Suitable for perimeter guarding for heavy-duty machinery, robots, conveyors, and other automated processes.

Description

Sigma is a fully demountable, relocatable single skin steel partitioning system designed and manufactured for factory, warehouse and storage applications where appearance is important. The system, of pressed channel frame construction is based on standard panels in full steel, steel and glass, steel and mesh and full mesh and comes complete with a range of door types and styles. All components are factory finished in epoxy powder coat. The system offers simple and quick installation.

Features and benefits:

Lightweight, durable, economical, demountable.

Application:

Suitable for perimeter guarding for heavy-duty machinery, robots, conveyors, and other automated processes.

General information

Finish

Powder coated

Material

Carbon steel

Shape

Rectangular

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

K30/135 Relocatable partition/ Ceiling system

K30/170 Mesh panel partitions

Specification data - Partition panels

Product Reference

Sigma partitioning

Unit size

-

Thickness

50 mm

Partition height (nominal)

2440 mm

2745 mm

3050 mm

3660 mm

Special order

Insert requirement.

Width (nominal)

300 mm

400 mm

500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

Panel partition type

All mesh

Full steel

Steel/ glass

Steel/ glass/ steel

Steel/ mesh

Steel/ mesh/ steel

Framing, junctions, corners

Panels sit in a floor channel and are bolted directly together or through the posts on the inside, corners are formed using a drilled and tapped post and finished with a top cap

Solid panels

-

Type

Single skin steel

Finish and colour

Powder coated paint, Blue - RAL 5010

Powder coated paint, Grey - BS.0.A.05

Powder coated paint, Grey - RAL 7037

Powder coated paint, Sandstone - BS.08.B.17

Powder coated paint, White - RAL 9010

Powder coated paint, Special order

Insert requirement.

Joint treatment

-

Type

Concealed cleat system

Glazed panels

-

Type

6 mm polycarbonate glazing with a film

6 mm polycarbonate glazing without a film

6 mm toughened glazing

6.4 mm laminated glazing

Door arrangement

-

Type

Hinged

Sliding

Door frames

Hinged: Angle frame 50 x 25 x 2.5 mm - 2006 mm high with overpanel

Door leafs

-

Type

Double

Single

Vision panels

Single glazed

Additional apertures

Insert requirements, can be provided as required.

Ceiling

-

Ceiling type

Insert requirement, steel ceilings, mesh ceilings, self-supported tiled ceilings and suspended tiled ceilings available.

Panels

Insert requirement.

Method of support

To suit the application

Joint treatment

To suit the application

Trims

Top cap options to suit application, fascias to suit when ceilings are required

Size

Insert requirement.

Panel weight

Nominally 9 kg/m² excluding glass

Accessories

None

Ceiling lights

Drop-down hatch with hinged flap

Hinged steel panel can be used as a serving shelf.

Sliding glass hatch

For inter communication between areas.

Standard product features

Colour:

Available in a range of colours.

Features:

Lightweight, durable, economical, demountable.

Finish:

Powder coated.

Material:

Carbon steel.

Shape:

Rectangular.

Warranty description:

The warranty shall apply when the products supplied by Troax and installed in accordance with the standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required.

Country of origin:

United Kingdom.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
