Shower Assembly with Timed Flow and Temp. Controls and VR Head (excl. ILTDU)
Verified by manufacturer 1 month ago
Top entry inlets, standard controls - T113A
Top entry inlets, standard controls - T113A
Type 3 (Healthcare) approved TMV
Certificate type
UK Water Regulation 4
Certificate type
Surface mounted, pre-plumbed shower panels.
Application
Thermostatic shower panel assembly:
- Suitable for healthcare, secure, sport and leisure, education, prison accommodation and other institutional settings where water and energy conservation is of importance.
- For new build, refurbishment, retrofit and temporary installations.
Description

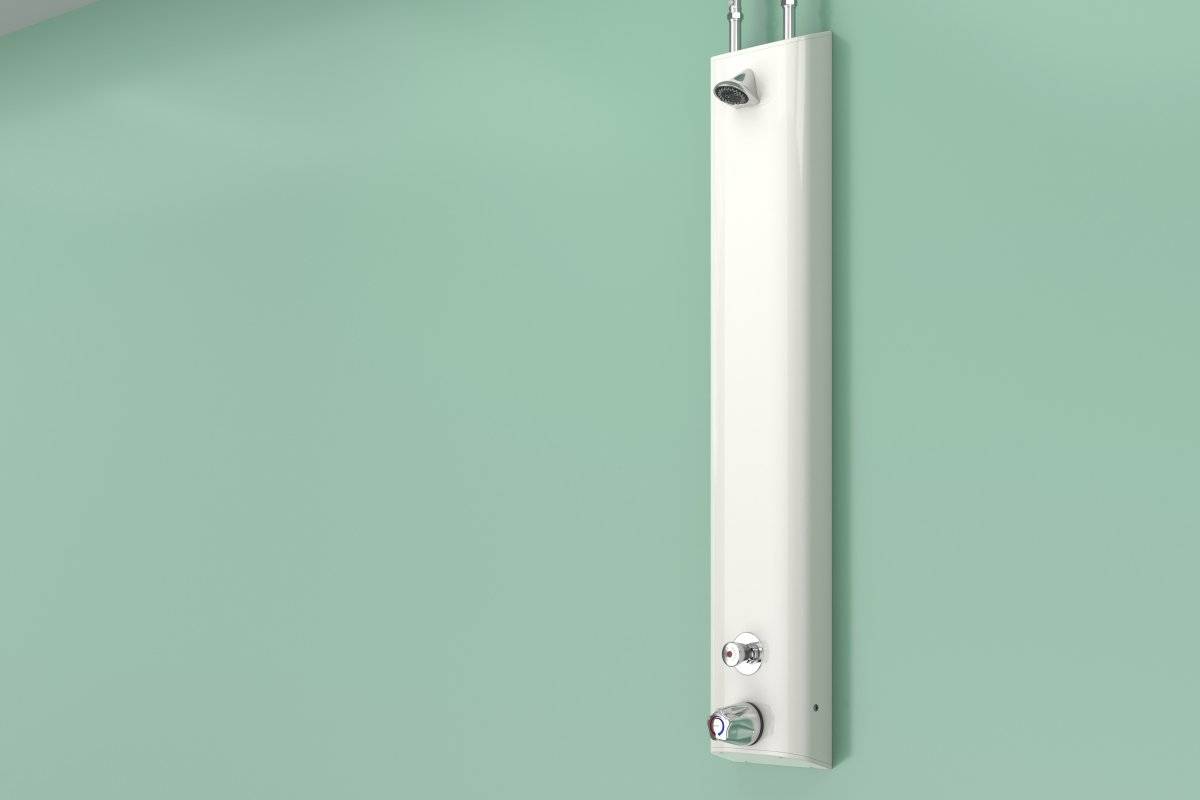

A range of shower panels with temperature and timed flow controls, and vandal resistant shower head. Includes integral Type 3 approved thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push-button timed flow control and shower head in chromium plated finish.
Features and benefits:
- Durable, anodized and powder-coated (RAL 9010) panel and robust fittings ensure long lifespan.
- Integral healthcare-approved TSV-TFC shower valve.
- User temperature control
- Push-button timed flow control for water and energy conservation (approximate duration 45 seconds).
- Standard or ligature resistant controls
- Fixed, vandal and ligature resistant shower head with large size spray plate and two directional spray settings. Easy to clean and maintain.
- 8 L/min flow regulator for water and energy conservation.
- Low level integral isolating service valves for ease of maintenance.
- Fast and easy installation.
- Pressure tested assembly.
Required accessory:
- Flushing kit (for compliant commissioning, and periodic elevated velocity pipework flushing for biofilm control & improved water quality).
Optional Accessory
- Pipe cover in same profile as panel, to suit 'A' variants. Two lengths available.
Alternatives
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium Brass Copper Zinc Polymer |
Shape | Rectangle |
Width | 180 mm |
Height | 1076 mm Guidance for specification option: 'A' variants with top entry supply pipework 1013 mm Guidance for specification option: 'B' variants with rear entry supply pipework |
Warranty description | Two year Guidance for specification option: Warranty only applies to materials and workmanship.
Does not cover inappropriate handling, incorrect installation, commissioning, operation or maintenance (or lack of). www.horne.co.uk/contact-us/customer-services/the-horne-guarantee/ |
Uniclass | |
CAWS | N13/377 Wet room showers N13/45 Wet room showers N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units |
Specification data - Shower fittings package
Standards | |
Shower mixers | To HTM Performance specification D 08.Guidance for specification option: Type 3 TMV is to HTM 04:01 supplement: Performance Specification D08: thermostatic mixing valves (healthcare premises). Previously TMV3 Scheme. |
Approvals | Type 3 and UK Water Regulation 4 Approved.Guidance for specification option: Previously TMV3 Scheme and WRAS Approval. |
Form | Wall-mounted shower panel with thermostatic mixer valve, temperature and timed flow controls and vandal resistant shower head. |
Materials | |
Body | Shower panel: Aluminium extrusion; Shower valve: Brass. |
Finish and colour | Epoxy-polyester powder-coated white (RAL 9010) panel, chromium-plated shower head and hand controls. |
Flow rate (maximum) | 8 L/min. |
Water supply temperature (maximum) | 41°C.Guidance for specification option: Hot water supply temperature: 55–65°C. Pre-set maximum outlet temperature 41°C (with 1°C margin). |
Connections | Hot and cold, 15 mm compression fittings. |
Outlet | One head (single mode) - fixed, vandal and ligature resistant. |
Mixer valve | TSV-TFC, with timed flow and temperature control. |
Water pressure | Maximum static pressure: 10 bar. |
Accessories | Flushing kit, P/N 5138. Guidance for specification option: Required accessory - for compliant commissioning and periodic elevated velocity flushing for biofilm control and improved water quality. 465 mm Pipe cover kit, P/N SA-465PC. 940 mm Pipe cover kit, P/N SA-940PC. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Brass Copper Zinc Polymer |
Recyclability | Can be recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
Horne Pre-plumbed Shower Panels

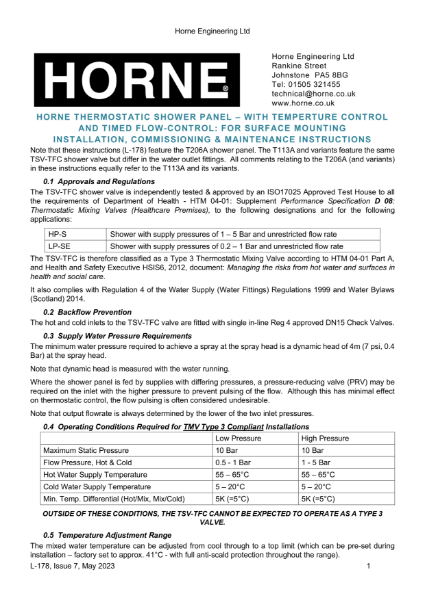

Instructions - Horne TSV-TFC Thermostatic Shower Panels
