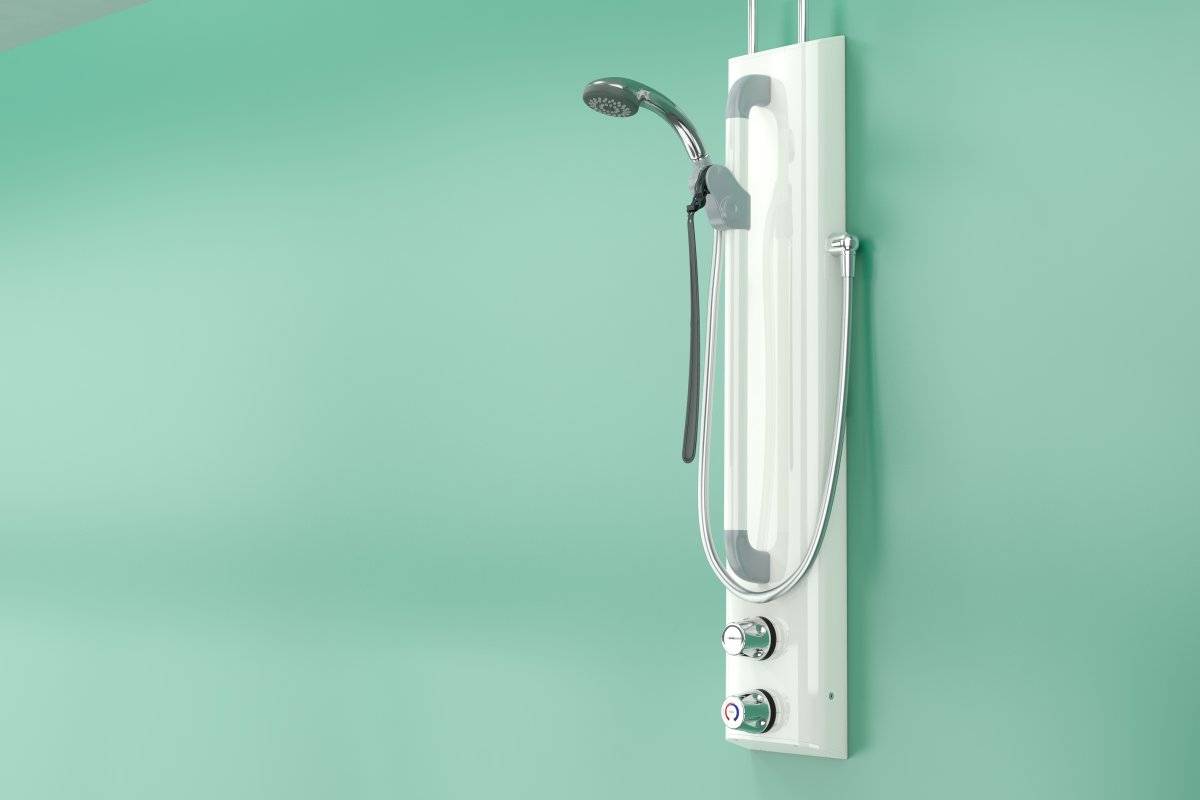

Shower Assembly with Dual Controls, Riser, Hose & Single Function Handset (excl. ILTDU) - Doc M Accessible Showers

Verified by manufacturer 2 months ago

Top entry inlets, white riser rail, standard controls - T108A

Horne Engineering Ltd Variant:
Third party certifications:
  • Type 3 (Healthcare) approved TMV

    Certificate type

  • UK Water Regulation 4

    UK Water Regulation 4

    Certificate type

Surface mounted, pre-plumbed shower panels.

Jump to:
BOS
+44 (0)1505 321455 Website

Application

Thermostatic shower panel assembly:

  • Suitable for various commercial and institutional applications, including healthcare, residential and dementia care, inclusive / accessible, Doc M and Changing Places, disability adaptations, student and other accommodations, education and leisure.
  • For new build, refurbishment, retrofit and temporary installations.

Description

Horne TSV1 shower panel includes integral Type 3 (healthcare) approved thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with dual hand controls, single function handset, hose and riser rail.


Features and benefits:

  • Durable, anodized and powder coated (RAL 9010) panel and robust fittings ensure long lifespan.
  • Integral healthcare-approved TSV1-3 dual control shower valve.
  • Standard knob or BS 8300 / Doc M lever controls.
  • Robust riser / grab rail (maximum load 150 kgf) in white or dementia-friendly deep orange, with inclusive design handset holder.
  • Single function handset with 1.25m easy-clean and anti-kink UK Water Regulation 4 Approved hose (PVC liner).
  • 8 L/min flow regulator for water and energy conservation.
  • Low level integral isolating service valves for ease of maintenance and performance testing.
  • Fast and easy installation.
  • Pressure tested assembly


Required accessory


Optional accessories


Alternatives

  • For managing the risk of retrograde contamination by pathogens, this shower arrangement is also available with added integral ILTDU, In-Line Thermal Disinfection Unit, and security pipe cover. Product detail here

General information

Color

White

Orange

Guidance for specification option:

Riser rail colour option (aiding users with limited sight)

Grey

Guidance for specification option:

Riser elbow and handset holder

Finish

Powder-coated

Material

Aluminium

Brass

Copper

Zinc

PVC

Show more

Shape

Rectangle

Width

181 mm

Height

1076 mm

Guidance for specification option:

 'A' variants with top entry supply pipework

1013 mm

Guidance for specification option:

'B' variants with rear entry supply pipework

Warranty description

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary
Pr_40_20_87_80 Shower thermostatic valves
Pr_40_20_87_81 Shower thermostatic water supply sets

CAWS

N13/377 Wet room showers

N13/45 Wet room showers

N13/42 Shower mixer valves

N13/40 Shower units

N13/375 Shower units

Specification data - Shower fittings package

Standards

-

Shower mixers

To HTM Performance specification D 08.

Guidance for specification option:

Type 3 TMV is to HTM 04:01 supplement: Performance Specification D08: thermostatic mixing valves (healthcare premises). Previously TMV3 Scheme.

Approvals

Type 3 and UK Water Regulation 4 Approved.

Guidance for specification option:

Previously TMV3 Scheme and WRAS Approval.

Form

Wall-mounted shower panel with thermostatic mixer valve, dual hand controls, single function handset, hose and riser rail.

Materials

-

Body

Shower panel: Aluminium extrusion; Shower valve: Brass.

Finish and colour

Epoxy-polyester powder-coated white (RAL 9010) panel, chromium-plated shower head and hand controls, white riser rail.

Flow rate (maximum)

8 L/min.

Water supply temperature (maximum)

41°C.

Guidance for specification option:

Hot water supply temperature: 55–65°C.

Pre-set maximum outlet temperature 41°C (with 1°C margin).

Connections

Hot and cold, 15 mm compression fittings.

Outlet

One head (single mode) - riser rail, hose and handset - single spray pattern.

Mixer valve

TSV1-3, with dual controls.

Water pressure

Maximum static pressure: 10 bar.
Range of maintained water supply pressures: 0.2–5 bar.

Accessories

Flushing Kit, P/N 5138.

Guidance for specification option:

Required accessory - for compliant commissioning and periodic elevated velocity flushing for biofilm control and improved water quality.

465 mm Pipe cover kit, P/N SA-465PC.

940 mm Pipe cover kit, P/N SA-940PC.

2 metre hose, P/N SA-108B.

Wall-mounted grab rail, white/grey, P/N 70-6011.

Show more

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium

Brass

Copper

Zinc

PVC

Show more

Recyclability

Can be recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Type 3 (Healthcare) approved TMV

Type 3 (Healthcare) approved TMV

Performance & Materials compliance (Optitherm Tap, H15, TSV1-3, TSV-TFC)

UK Water Regulation 4

UK Water Regulation 4
