SF62 Silicone Glazed Curtain Wall System

Verified by manufacturer 1 month ago

Senior Architectural Systems Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

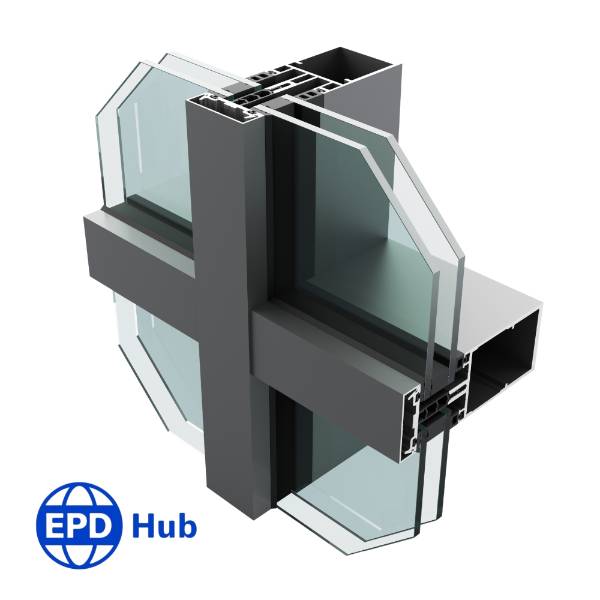

The SF62 Aluminium Curtain Wall System is very similar in design to the SF52 system, but has a wider 62 mm box which allows more flexibility in accommodating structural movement.

Jump to:
+44 (0)1709 772600 Website

Application

For ultra-high-rise projects and those where structural movement is a challenge on the project.

Description

The SF62 Aluminium Curtain Wall System is very similar in design to the popular SF52 system, but has a wider 62 mm box which allows more flexibility in accommodating structural movement.


This makes it particulary suitable for ultra-high-rise projects and those where structural movement is a challenge on the project.


The increased rebate size means that it is possible to provide either additional clearance between the section and infill, so that the system is able to allow the glass to move more if there is structural movement, or greater edge cover for issues such as guarding.


At the same time, SF62 offers enhanced thermal performance which exceeds current building regulations. The system has been rigorously tested for safety, weather, impact, and transom loads up to 750 kg giving you peace of mind for every application.


Features and benefits:

  • The system is mullion drained.
  • Fully silicone glazed (using the SAS toggles) or a combination of the two using either horizontal or vertical capping.
  • All internal gaskets are designed to mate with injection moulded corner pieces which are sealed at joints.
  • Large range of transom and mullion sizes with reinforcing sleeves, steel and back boxes available to strengthen mullions and achieve longer spans.
  • Improved thermal break to accommodate for movement and allow for variations in glass tolerance.
  • Punch tools and jigs are available for easy manufacture.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Framing

-

Frame members

Aluminium curtain wall frame sections.

Cladding units

-

Glass units

Insulated glass units (IGUs).

Panels and facings

-

Material

Aluminium infill panels.

Perimeter seals

Glazing and panel gaskets for curtain walling.

Thickness

28—46 mm.

Glazing units

Double.

Triple.

Manufacturer guidance

with SAS approval

Mullion

72 mm.

92 mm.

117 mm.

142 mm.

167 mm.

Show more

Transom

80 mm.

100 mm.

125 mm.

150 mm.

175 mm.

Show more

Safety

To EN 13830:2003, 3600 Pa.

Air permeability

To EN 13830:2003, 600 Pa.

Watertightness

To EN 13830:2003, 600 Pa.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

Third party certifications

UKAS

UKAS

ISO 14001

UKAS

UKAS

ISO 45001

UKAS

UKAS

ISO 9001
