SF52 Silicone Glazed Curtain Wall System

Verified by manufacturer 5 months ago

Senior Architectural Systems Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

Curtain wall system with enhanced thermal performance.

Jump to:
BIM object icon
+44 (0)1709 772600 Website

Application

Curtain wall applications.

Description

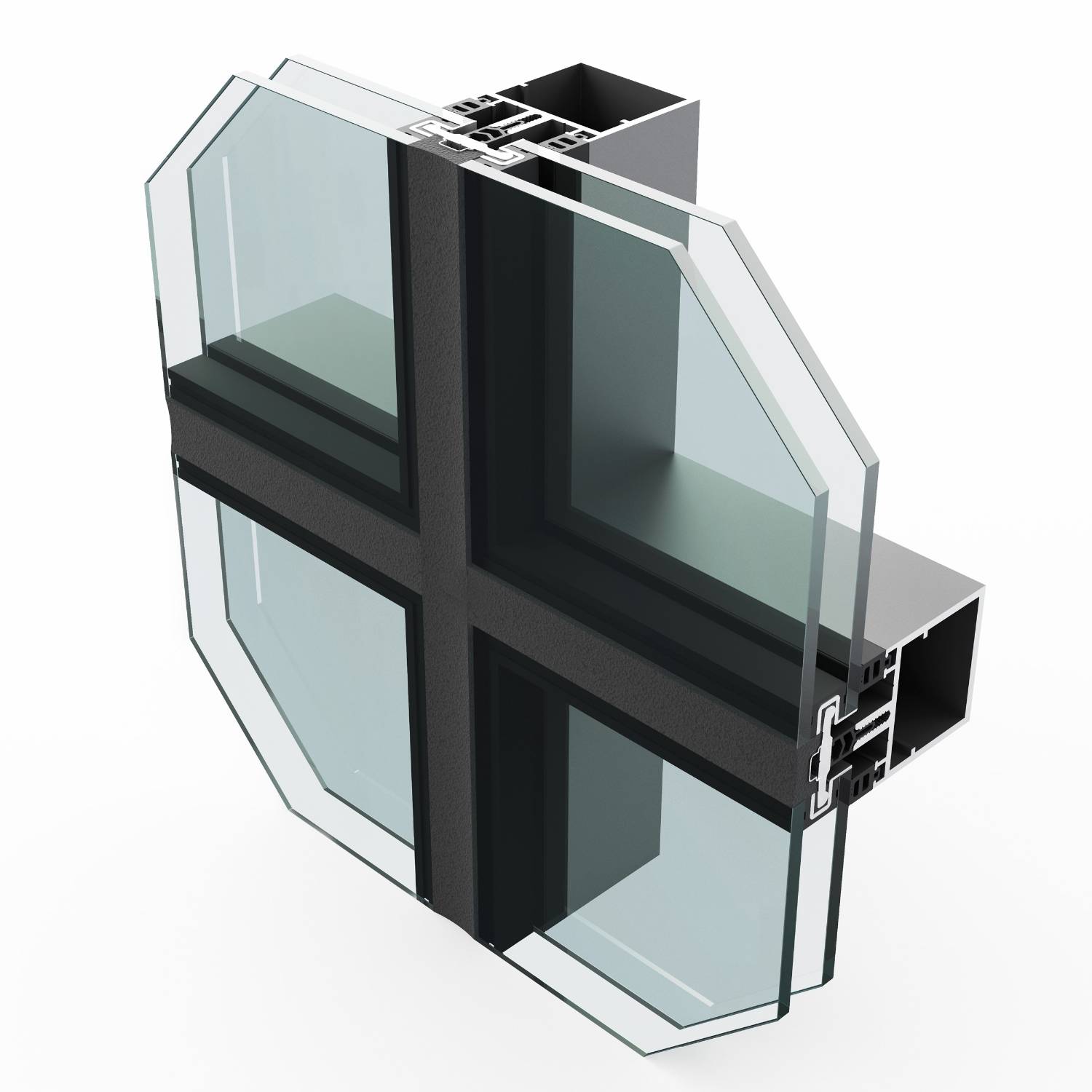

A curtain wall system which has been designed to enhance thermal performance meaning the system can exceed current building regulations. It is a stick type front loaded system using spring pins and a specially designed cleat which allows square cutting throughout.


The system can be either zone drained (via conventional pressure plate drainage or using a specially designed spout system) or it can be mullion drained.


The zone drained system can be assembled capped, uncapped (using the SAS toggles) or combination of the two.


Section sizes vary from 50–250 mm (50, 80, 100, 125, 150, 175, 200, 225 and 250 mm). Specific profiles can be incorporated offering design flexibility.


Material:

  • Aluminium alloy 6060, 6063 or 6083 (for improved strength). T6 to BS EN 755-9 or BS EN 12020-2.
  • Thermal breaks are extruded to BS 7619.
  • Gaskets are manufactured in accordance with BS 3734.


Performance:

Tested to CWCT specification sequence B and in accordance with BS EN 13830:

  • Air permeability: 600 Pa.
  • Water tightness: 600 Pa.
  • Wind resistance: 2400 Pa.

General information

Color

Other

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Product range

SF52 curtain wall systems

Specification data - Stick curtain walling systems

Framing

-

Frame members

SF050.

SF080.

SF100.

SF125.

SF150.

SF175.

SF200.

SF225.

SF250.

As drawing.

Guidance for specification option:

Insert details.

Frame accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Cladding units

-

Glass units

Insulated glass units (IGUs).

Guidance for specification option:

Insert required thickness.

Manufacturer guidance

Glazing:

  • 22–50 mm thick glazing available.
  • Consult with Senior Aluminium Systems for recommendations and details. All glazing complies with BS 6262 and ground floor glazing will comply with Secure By Design (inner pane to be a minimum of 6.8 mm laminated).

Mullions:

Mullion size dependent on wind load, mullion centres and tie back positions. Transom size subject to span and glass weight and in-conjunction with architectural design.

Glazing accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Perimeter seals

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

System accessories

Aluminium/ co extruded plastic pressure plate, fixed to mullions and transoms at a maximum of 25 mm from ends and at a maximum of 150 centres.

Finish

Anodized.

Guidance for specification option:

Insert colour requirements.

Mill finish.

Polyester powder coated, RAL.

Guidance for specification option:

Insert colour requirements. Standard RAL range available.

Manufacturer guidance

Typically available in three finishes:

  • Polyester powder coating to BS EN 12206-1. Painted in-house, the surface finish is 40 microns as standard, or enhanced to 60 microns for marine environments.
  • Anodized finish to BS 3897 to a minimum of 25 microns (AA25), available in a limited range of colours.
  • Mill finish.


Vertical

SMR998.

SMR997.

SCW002.

SCW008.

As drawing.

Guidance for specification option:

Insert details.

Horizontal

SMR997.

SCW055.

SCW003.

SCW007.

As drawing.

Guidance for specification option:

Insert details.

Air permeability

600 Pa.

Watertightness

600 Pa.

Wind resistance

2400 Pa.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2016

1

Third party certifications

UKAS

UKAS

ISO 14001

UKAS

UKAS

ISO 45001

UKAS

UKAS

ISO 9001

Literature

Introduction to Senior Architectural Systems Brochure

Introduction to Senior Architectural Systems Brochure

SAS BREEAM Brochure

SAS BREEAM Brochure

SAS SF52 Curtain Wall Technical Datasheet

SAS SF52 Curtain Wall Technical Datasheet

SAS CPD Seminars 2023

SAS CPD Seminars 2023

SAS Featured Projects Brochure

SAS Featured Projects Brochure

SAS Accommodation Brochure

SAS Accommodation Brochure

SAS Commercial Brochure

SAS Commercial Brochure

SAS Education Brochure

SAS Education Brochure

Similar products from Senior Architectural Systems Ltd

SCW Curtain Wall System

SCW Curtain Wall System

SF52 Fully Capped Curtain Wall System

SF52 Fully Capped Curtain Wall System

SF52 Horizontal Capped Curtain Wall System

SF52 Horizontal Capped Curtain Wall System

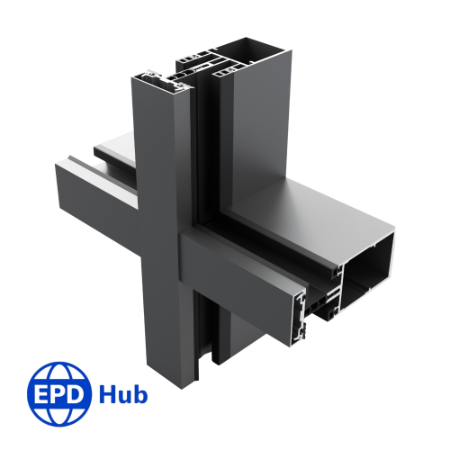

SF52 Mullion Drained Curtain Wall System
