Sentinel Extruded Aluminium Beaded Half Round Snap-fit Gutter
Verified by manufacturer 27 days ago
114 mm
114 mm

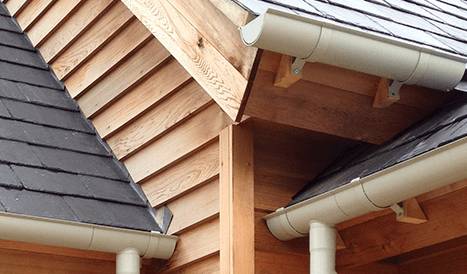

A range of beaded half-round gutters, manufactured from extruded aluminium.
Application
Suitable for new build and refurbishment applications.
Description
Sentinel extruded aluminium beaded half-round gutters are available in various sizes and are supplied with a complete range of accessories, such as angles, outlets, stop ends and brackets.
The snap-fit jointing system provides a quick, easy and mess-free; silicone is simply injected into the joints and left to cure.
Extruded aluminium gutters are a suitable option for new build and refurbishment applications due to their smooth lines, clean appearance and robust properties. The silicone injection system (SIS) jointing method combined with the long available lengths makes this system easy to fit, maintain and has a large rainwater capacity to provide drainage for all sizes of pitched roofs.
Features and benefits:
- Made from aluminium alloy 6063 T6 and LM6.
- 100% recyclable, lightweight and strong.
- Radius gutters - Faceted radius available.
- Other profiles available.
- Supplied mill finished (uncoated) or polyester powder-coated in RAL or BS standard colours.
General information
Color | Black Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Length | 3000 mm 2500 mm 2000 mm 1000 mm 500 mm |
Width | 114 mm 125 mm 150 mm |
Height | 47 mm 65 mm 79 mm |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Specification data - Aluminium eaves gutters
Form | Extruded with cast fittings. |
Profile | Half-round. |
Size (nominal width) | 114 mm. |
Finish | Mill.Powder coating. |
Colour | Manufacturer guidancePolyester powder-coating is available in RAL or BS standard colours. Consult manufacturer and insert requirements. |
Integral accessories | 4.5BHRA90 - 90° Universal Angle.4.5BHRA135 - 135° Universal Angle.4.5BHRO2R - Running Outlet (Ø63 mm, Tapered).4.5BHRO3R - Running Outlet (Ø76 mm, Tapered).4.5BHRO2S - Running Outlet (63 x 63 mm, Standard).4.5BHRO3S - Running Outlet (76 x 76 mm, Standard).4.5BHRO43 - Running Outlet (101 x 76 mm, Standard).4.5BHRSE - Universal Stopend.4.5BHRUC - Union Connector.4.5BHRBF - Fascia Bracket.4.5BHRBRT - Top Fix Rafter Bracket.4.5BHRBRS - Side Fix Rafter Bracket.4.5BHRBRF - Rise and Fall Bracket. |
Length | 4.5BHRG3 - 3000 mm. 4.5BHRG2.5 - 2500 mm. 4.5BHRG2 - 2000 mm. 4.5BHRG1 - 1000 mm. 4.5BHRG0.5 - 500 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Manufacturing plant location | |
Recyclability | 100% recyclable |
Expected Life | 30 year |
Literature
Sentinal Beaded Half Round Data Sheet
Technical Product Guide - Sentinel
