Mustang 5" Seamless Gutter - Seamless 5" Aluminium Ogee Guttering

Verified by manufacturer 11 days ago

Aluminium Roofline Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

BBA approved seamless ogee profile 125 mm (5") aluminium guttering.

Jump to:
+44 (0)116 289 4400 Website

Application

Rainwater drainage.

Description

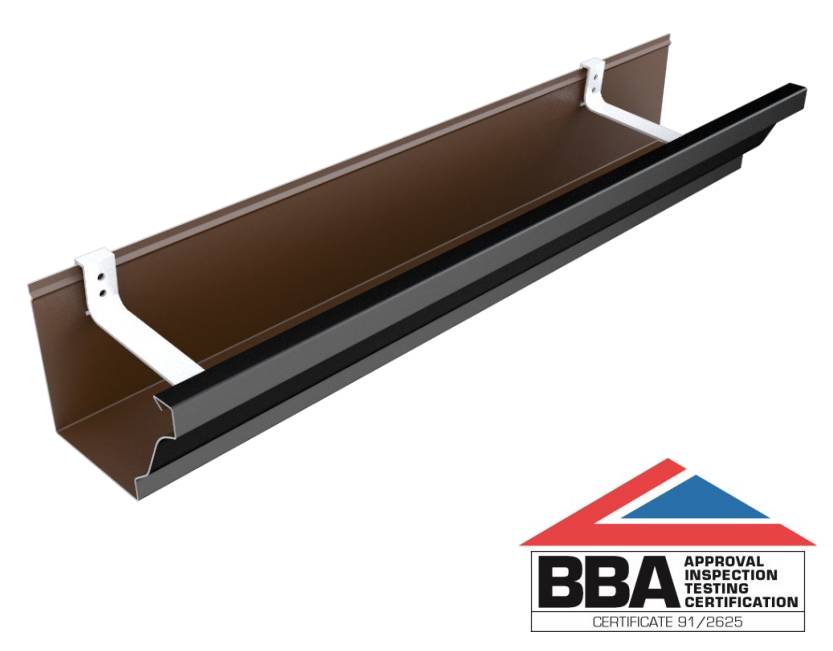

Seamless ogee-profile 125 mm (5") aluminium guttering.


Mustang® Seamless aluminium gutters are roll-formed on-site in lengths of up to 30 metres. No joints mean no leaks, creating a neat, maintenance-free product of the highest quality for peace of mind and the added extra of the visual appeal of smooth, neat lines.


Manufactured from a minimum of 83% recycled aluminium, which can be further recycled once it has reached the end of its useful life.


Features and benefits:

  • BBA approved, certificate 91/2625.
  • Pre-coated dual-coloured 0.9 mm-thick 3105 H45 aluminium.
  • No joints, no leaks.
  • Quick, easy and safe to install, most of the work is carried out a ground level.
  • Minimal maintenance, fit and forget.
  • Strong and fit for purpose, with a life expectancy over 30 years accredited by the BBA.
  • Quality assured.
  • No wastage – made to the exact dimensions of the building.
  • Colourfast – will not fade.
  • Sustainable product – manufactured using recycled aluminium.
  • Installed by ARP-trained and approved contractors.
  • Range of colour options.
  • Free flow capacity (minimum): 2.33 L/s.
  • Functional life expectancy: Over 30 years.

General information

Color

Black

White

Brown

Grey

Finish

Matt

Satin

Material

Aluminium

Shape

Other

Length

Bespoke

Width

125 mm

Guidance for specification option:

5".

Height

87 mm

Uniclass

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters

Form

Roll-formed on site.

Guidance for specification option:

Consult manufacturer for details.

Third-party product certification

British Board of Agrément certificate 91/2625.

Profile

Ogee.

Size (nominal width)

125 mm.

Thickness or gauge

0.9 mm.

Guidance for specification option:

3105 H45 aluminium.

Finish

Pre-coated dual coloured Abrasion Resistant System (ARS).

Colour

RAL 9005m.

Guidance for specification option:

Black.

RAL 9016s.

Guidance for specification option:

White.

RAL 7016m.

Guidance for specification option:

Dark grey.

RAL 7037m.

Guidance for specification option:

Grey.

BS08B29m.

Guidance for specification option:

Brown.

Film thickness (minimum)

Manufacturer's standard.

Integral accessories

Not required.

Mustang polycarbonate corners and stop ends with approved sealant as stipulated in BBA 91/2625.

Mustang Straight Connectors with approved sealant.

Guidance for specification option:

For creation of expansion gaps in gutter runs over 30 m.

Manufacturer guidance

See below for fixing brackets and optional leaf guards.

Outlet size

60 mm.

70 mm.

Fixing brackets

Mill finish aluminium grade 6063 T6, minimum thickness 2 mm.

Leaf guard

Not required.

ARP Gutter Grid Roll.

Alu-Rex T-Rex.

Alu-Rex Gutter Clean.

Installation

Installation must be carried out by ARP Approved Contractor using materials supplied by ARP Ltd in accordance with British Board of Agrément Certificate No 91/2625.
Gutter to be formed on site in seamless lengths and secured/ supported with extruded mill finish aluminium fixing support brackets 16 mm wide x 2.0 mm-thick at 450 mm centres, using 4x40mm stainless steel countersunk screws.

Sustainability data

Contains Red List materials

No

Country of material origin

Norway

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

83 %

Guidance for specification option:

Minimum.

Expected Life

30 year

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Mustang Gutter and Accessories BBA 91/2625 Product Sheet
