Application

Can be used for:

  • High security temporary and major events.
  • Construction sites.
  • To protect roadworks.
  • Utilities.
  • Infrastructure.

Description

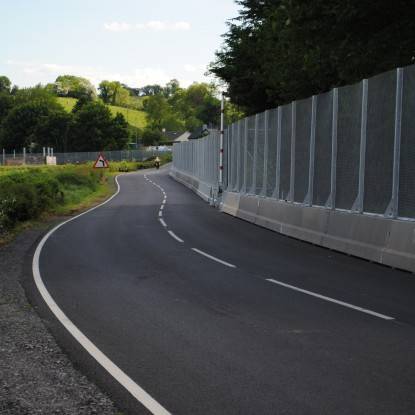

Advanced anti-vehicle barrier perimeter fencing system.

Features and benefits:

  • High performance and durable.
  • Designed to immobilise vehicles.
  • Easy to erect and install - only shallow foundations are required for permanent applications, while road surface anchoring is available for non-permanent applications.
  • Anchors into shallow depth concrete pads or suitable existing pavement, dependent on application.
  • Highly portable.
  • Low maintenance.
  • Available with a range of Zaun's existing fence panel and post designs.
  • The fence line has a low footprint.
  • Panel termination to the top of the barrier.
  • Provides protection against rock fall and debris dispersion.
  • Prevents pedestrian intrusion.
  • Rapidly deployable at locations where a non-permanent solution is required.
  • Cost effective.
  • Barriers and gates can be incorporated into the fence line.
  • Crash-friendly for normal road users, and is safe to use next to perimeter access roads.
  • Can be supplied with turnstiles and access portals, CCTV columns, PID systems, fence toppings and PAS 68 enhancements.
  • Anti-climb.
  • Vertical and cranked top posts are available.
  • Mesh conforms to BS1722, Part 14.
  • Secured by Design.

Applications:

Can be used for:

  • High security temporary and major events.
  • Construction sites.
  • To protect roadworks.
  • Utilities.
  • Infrastructure.

General information
Finish

Galvanized and polyester powder-coated (PPC)

Uniclass 2015 Metal post and mesh panel barrier systems (Ss_25_15_60_54)
Specification data
Product Reference

Secure Guard

Panel/ mesh type

ArmaWeave

With 4 mm vertical and horizontal wires.

HiSec

Standard. With 4 mm vertical and horizontal wires.

HiSec Super 6

With 6 mm vertical and 4 mm and horizontal wires.

Height

1.8–3.5 m. Consult manufacturer and insert requirements.

Colour

Insert RAL colour requirement.

Gates -
Pedestrian

Required

Available in single leaf, 1.2 m wide, or width to suit. Consult manufacturer and insert requirements.

Not required

Vehicular

Required

Available in single and double leaf, 3.0 m wide, or width to suit. Consult manufacturer and insert requirements.

Not required

Accessories/ Other requirements:

Not required

Access portals

CCTV columns

Fence toppings

Consult manufacturer and insert requirements.

PAS 68 enhancements

Perimeter Intrusion Detection (PID) systems

Top posts

Vertical or cranked. Insert requirements.

Turnstiles

Standard product features

Finish:

Galvanized and polyester powder-coated (PPC).

Posts:

  • 60 x 60 mm square hollow section (SHS).
  • Centres: 3000 mm.

Post to panel fixing:

Panels fixed to posts with full height 70 x 70 x 5 mm RSA bolted to the sides of the posts and 40 x 5 mm clamp bar with through bolt fixings at 400 mm centres.

Metal barrier:

  • Size (h x w x l): 0.8 x 0.4 x 12 m.
  • Weight: 850 kg.

Product Options

Panel/ mesh type:

– HiSec:

Comprises 12.7 x 76.2 mm mesh with 4 mm horizontal wires at 12.7 mm centres with single 4 mm vertical wires at 76.2 mm centres.

Gates:

Framed in 50 x 50 mm rectangular hollow section (RHS), with matching mesh bolted onto the frame, with slide latch. Each gate also features a rubber bump stop and two suitable gate posts. Vehicular gate also includes drop bolts.
