SEC600 Industrial Sectional Door
Verified by manufacturer 10 days ago
Industrial sectional door.
Application
Recommended for factories, warehouses, garages.
Description
A double-skinned thermally insulated steel panelled door designed for reducing building energy consumption.
General information
Finish | Galvanized |
Material | Steel |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains L20/60 Doors |
Specification data - Roller shutters
Opening sizes | Manufacturer guidanceMaximum recommended dimensions up to 6000 x 6000 mm. Larger sizes by specification. Please consult Fortress SEFA for advice. |
Arrangement | Vertical, hi lift, standard lift and low headroom track systems are available for face fixing. |
Performance | |
Watertightness | Water Ingress up to Class 3 at 150 Pa. |
Resistance to wind load | BS EN 12424:2000, Classification 3. |
Acoustic performance | Weighted Level Difference Dw value 25 dB. |
Thermal resistance | Insulated panel material U Value 0.8 w/m²K. |
Shutter curtain | |

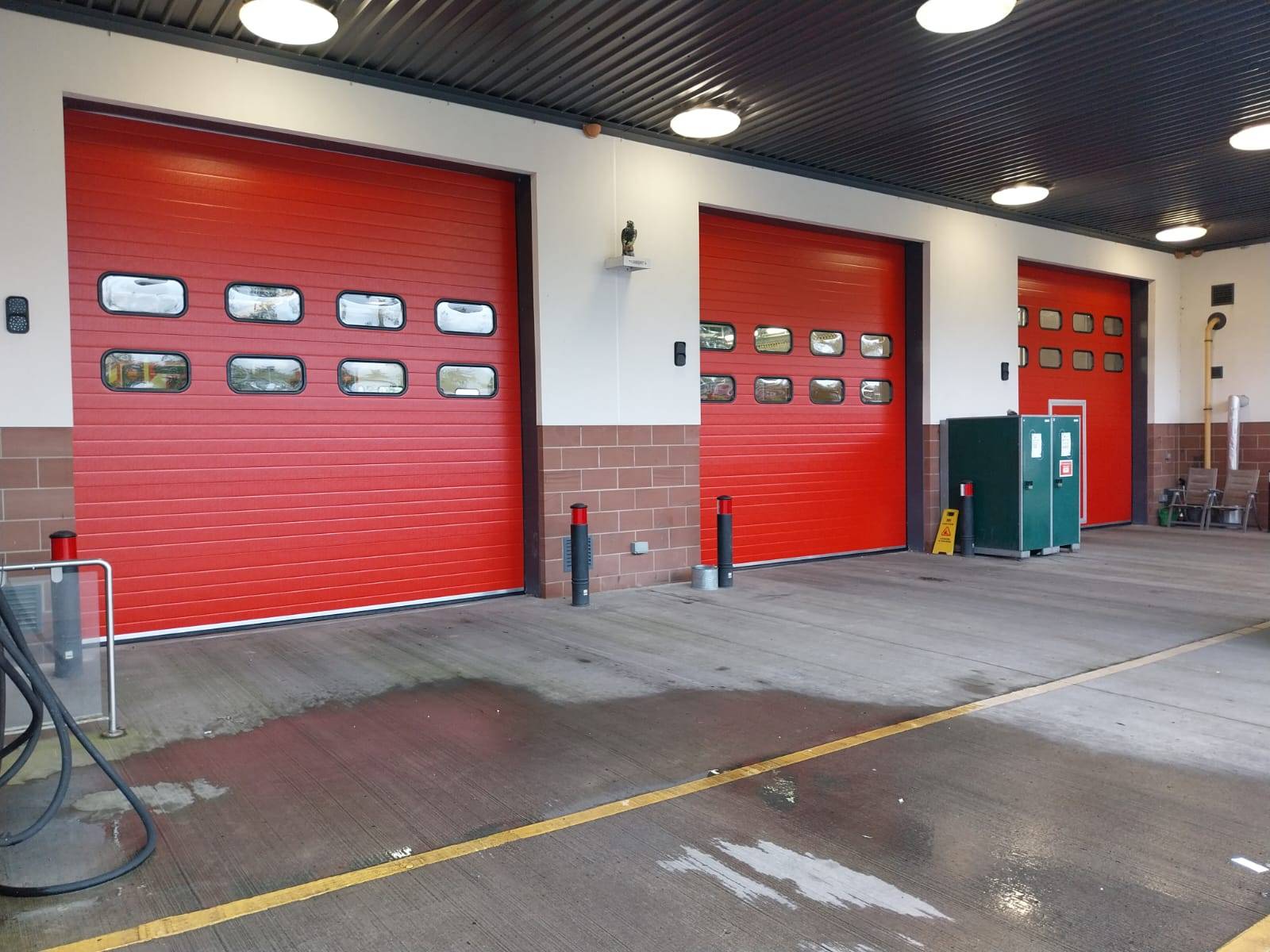

Lath material | Steel insulated panels 610 x 40 mm. 40 mm insulated CFC-free rigid polyurethane foam, density 40 kg/m³. Panels have a U value of 0.8 W/m ²k and are completed with pre drilled galvanised steel end caps. EPDM 2 mm thick weather proof seals to top and side reveals.Guidance for specification option: Panels can be solid, include vision panels or be fully glazed.(Maximum of one vision panel per linear metre width up to a maximum of five per panel). |
Finish and colour | BS 00A05.BS 04E53.BS 08B29.BS 12B27.BS 18B25.BS 18E53.RAL 1015.RAL 1021.RAL 3005.RAL 3020.RAL 5003.RAL 5005.RAL 5010.RAL 5013.RAL 5015.RAL 6005.RAL 6029.RAL 7016.RAL 7021.RAL 7031.RAL 7035.RAL 7037.RAL 8016.RAL 9001.RAL 9005 (BLACK).RAL 9006 (SILVER).RAL 9007.RAL 9010 (WHITE).RAL 9910.Manufacturer guidanceDoor panels can be coated in either a polyester or plastisol finish to outer skin only. Standard internal panel finish is stucco embossed PPC finish in RAL 9010. |
Frame and guides | |
Material | All components fully galvanized with galvanized fixings. Vertical Tracks, Horizontal tracks with curve. Vertical angle, Horizontal angle, EPDM 2 mm thick Side Seals. Track slice plates. |
Colour | BS 00A05.BS 04E53.BS 08B29.BS 12B27.BS 18B25.BS 18E53.RAL 1015.RAL 1021.RAL 3005.RAL 3020.RAL 5003.RAL 5005.RAL 5010.RAL 5013.RAL 5015.RAL 6005.RAL 6029.RAL 7016.RAL 7021.RAL 7031.RAL 7035.RAL 7037.RAL 8016.RAL 9001.RAL 9005 (BLACK).RAL 9006 (SILVER).RAL 9007.RAL 9010 (WHITE).RAL 9910.Manufacturer guidanceDoor curtain and guides can be supplied BS EN 12206-1 DuPont® polyester powder coated (PPC) to the Fortress Pro-Tec range of 29 BS and RAL colours. Matt PPC finishes only. All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60-80 μm (microns) is applied. Non-standard colours are available on request - this may increase lead times. Please consult Fortress SEFA for advice. |
Operation | |
Mode | BS EN 12453 Fortress SEC600 Drive System™ 415 Volt 3-phase operator with push button controls, supplied with hand chain operation for use in the event of emergency open/closure. |
Control | BS EN 12453 Hold-to-run and dead-man close automation for applications Controls where there are untrained door users. Drive unit incorporates a manual release for emergency use of hand chain.Push up/pull down.Hand chain.Guidance for specification option: (maximum recommended dimensions 3000 wide x 3000 mm high). |
Hardware | Doors supplied with adjustable side hinges complete with carriers, intermediate hinges, nylon and steel rollers, cable sets, bottom corner brackets, spring bumpers, self tapping panel fixings. Doors up to 5000mm wide will be supplied with single hardware and single width end caps. Doors 5001mm wide and above will be supplied with double hardware and double end caps. Doors 6001mm wide and above will be supplied with wind bracing bars. All doors are fitted with cable and spring brake safety device as standard. |
Accessories | Auto time return control panel.Keyed shoot bolts.Micro switch.Photocell.Guidance for specification option: Light beam sensor will detect the presence of a person or object that interrupts the light beam providing a non-contact safety system. Radar sensor.Remote control receiver and transmitters.Self-checking safety edge.Guidance for specification option: Will stop and reverse the door movement immediately upon contact with an obstacle. Spring load locking shoot bolts.Wicket gate.Guidance for specification option: Standard size 800 x 2000 mm, complete with lock, handles and safety locking system. Induction loop card. |

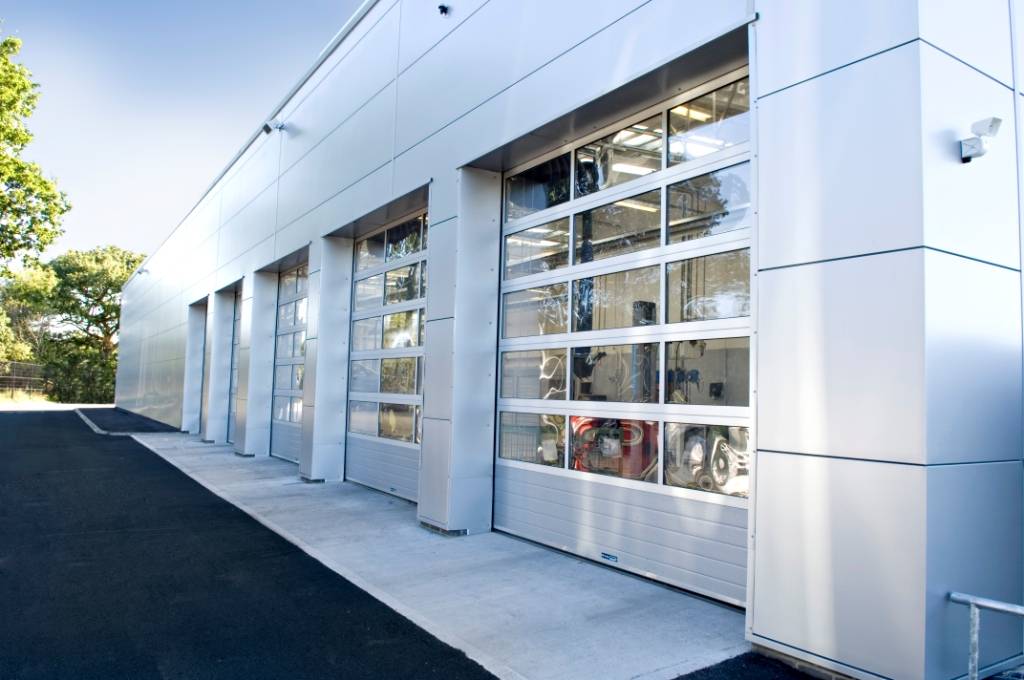

Glazed vision panels | None. Fully glazed panoramic window. Guidance for specification option: 480w x 862h double glazed argon filled units., 80 mm high insulation panels. |
Springing | Drums, steel shaft. End bearing plates, intermediate bearing plates, bearings, steel couplers, plus and winders, Helical balancing springs from high tensile steel wire to DIN 17223 sort C. |
Sustainability data
Material | Steel |
