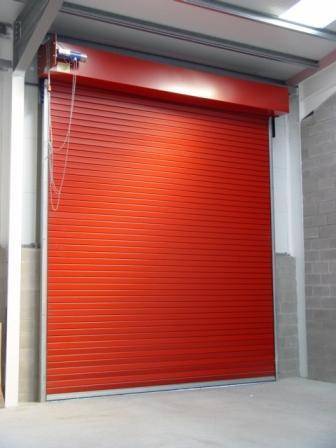

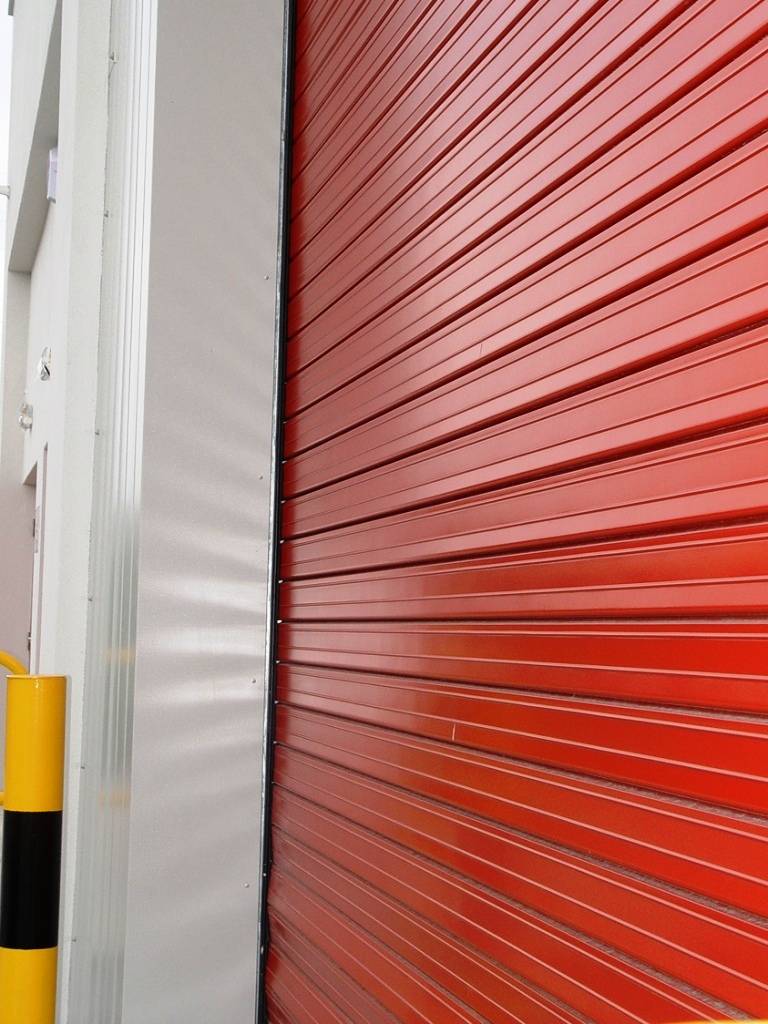

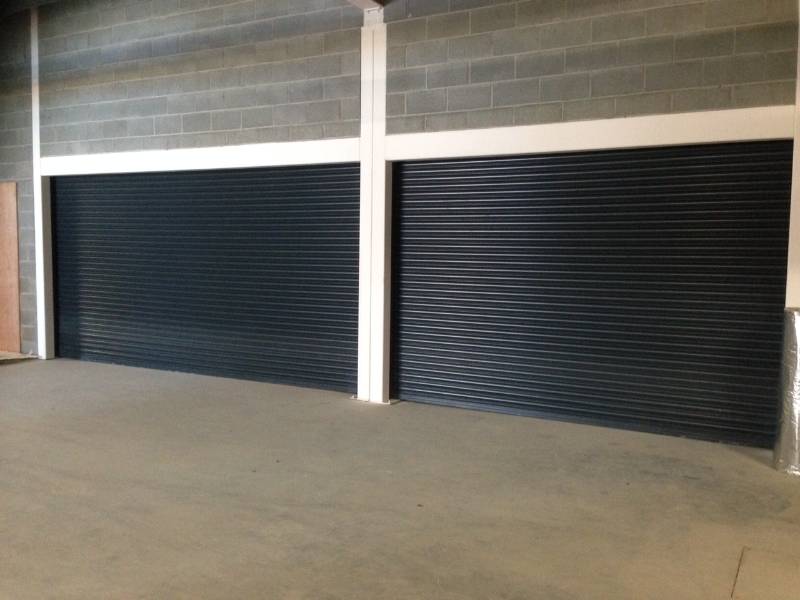

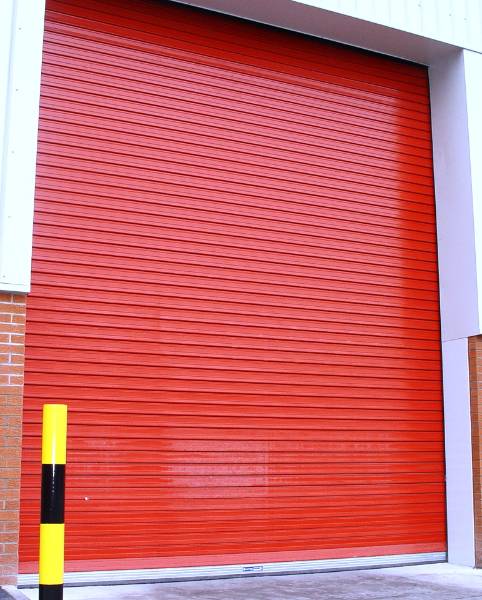

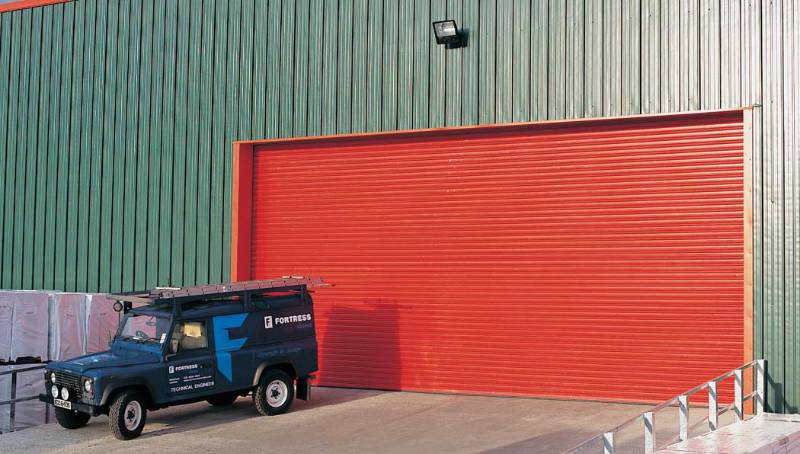

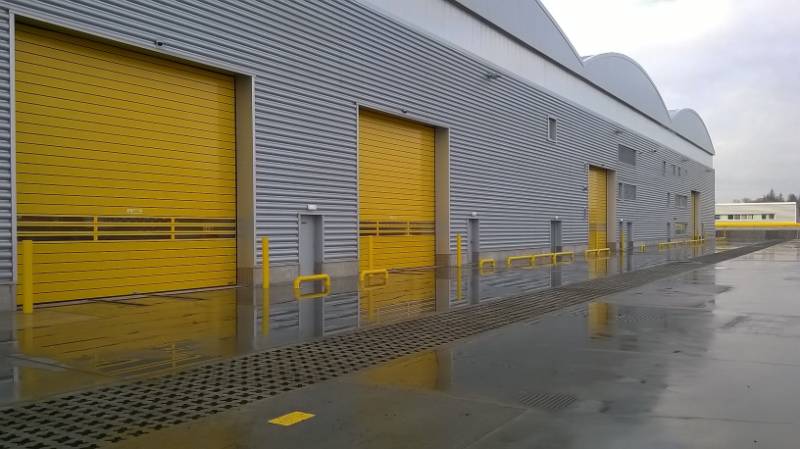

DBi101 Insulated Industrial Roller Shutter
Verified by manufacturer 1 month ago
A double-skinned thermally insulated steel roller shutter designed for reducing building energy consumption and noise produced by wind loading and shutter action.
Application
Recommended for use in factories, warehouses and garages.
Description
Standard insulated roller shutter.
Features and benefits:
- Fire rated up to four hours.
- Security rated up to LPS1175 SR3.
- Acoustic rated up to 22 dB.
General information
Color | Silver Black White Other |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Standard | BS EN 13241-1, BS EN 12604 BS EN 12423, BS EN 12424. |
Opening sizes | Manufacturer guidanceMaximum recommended dimensions up to 6000 x 6000 mm. Larger sizes by specification. Please consult Fortress SEFA for advice. |
Format | Thermally insulated. |
Arrangement | Vertical roller shutter for face fixing. |
Performance | |
Resistance to wind load | To BS EN 12424:2000, Class 5. |
Acoustic performance | 22 dB.Guidance for specification option: Weighted Level Difference Dw value. |
Thermal resistance | 0.7 w/m²K.Guidance for specification option: Insulation material U Value. |
Shutter curtain | |
Lath material | Galvanized steel.Guidance for specification option: Interlocking galvanized steel laths, 100 mm in depth. |
Profile | Flat.Guidance for specification option: With dual ribbed solid flat profiles restrained laterally by end locks riveted to both ends on each lath. |
Finish and colour | BS 00A05.BS 04E53.BS 08B29.BS 12B27.BS 18B25.BS 18E53.RAL 1015.RAL 1021.RAL 3005.RAL 3020.RAL 5003.RAL 5005.RAL 5010.RAL 5013.RAL 5015.RAL 6005.RAL 6029.RAL 7016.RAL 7021.RAL 7031.RAL 7035.RAL 7037.RAL 8016.RAL 9001.RAL 9005 (BLACK).RAL 9006 (SILVER).RAL 9007.RAL 9010 (WHITE).RAL 9910.Manufacturer guidanceDoor curtain and guides can be supplied BS EN 12206-1 DuPont® polyester powder coated (PPC) to the Fortress Pro-Tec range of 29 BS and RAL colours. Matt PPC finishes only. All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60-80 μm (microns) is applied. Non-standard colours are available on request - this may increase lead times. Please consult Fortress SEFA for advice. |
Frame and guides | |
Material | BS EN 12424 Fortress DB100 G-channel™ 2.5 mm steel roll-formed guides.Guidance for specification option: With concealed fixing and wind locking channel. A nylon and brush extrusion profile ensures no sharp edges are exposed. DB100 G-channel™ complete with steel plated steel caps and nylon edge protection with mohair anti-friction strip to reduce friction and noise produced by the shutter action. |
Finish | Galvanized to BS EN ISO 1461.Manufacturer guidanceStandard finish is a galvanised steel curtain and guides with non-galvanised components lacquered. |
Operation | |
Mode | Automatic. |
Control | Push button. |

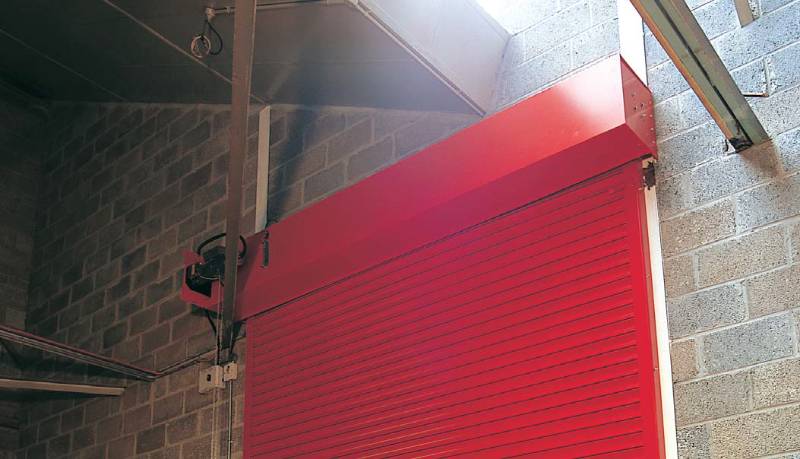

Accessories | Auto time return control panel.Battery backup.Guidance for specification option: 240 Volt single-phase operation (maximum dimensions 4500 x 4500 mm). Brush seal to head.Fascia hood.Galvanized sheet steel coil casing.High security ground lock.Motor hood.Guidance for specification option: (BS EN 13241-1: all moving parts to be covered by casing on all Shutters under 2500 mm high). Remote control receiver and transmitters.Self-checking safety edge.Guidance for specification option: Self-checking safety edge (will stop and reverse the door movement immediately upon contact with an obstacle). Wicket gate.Guidance for specification option: standard size 600 x 1830 mm, complete with lock, handles and safety locking system. Micro switch.High duty Direct Drive.Induction loop card.Radar sensor.Photocell. |
End plates | 6–8 mm (depending on curtain size/weight) carbon steel plates finished with one coat rust inhibitive primer or BS EN 12206-1 DuPont® polyester powder coated (PPC) finish. |
Barrel | Mild steel tube finished with one coat rust inhibitive primer. |
Sustainability data
Material | Steel |
