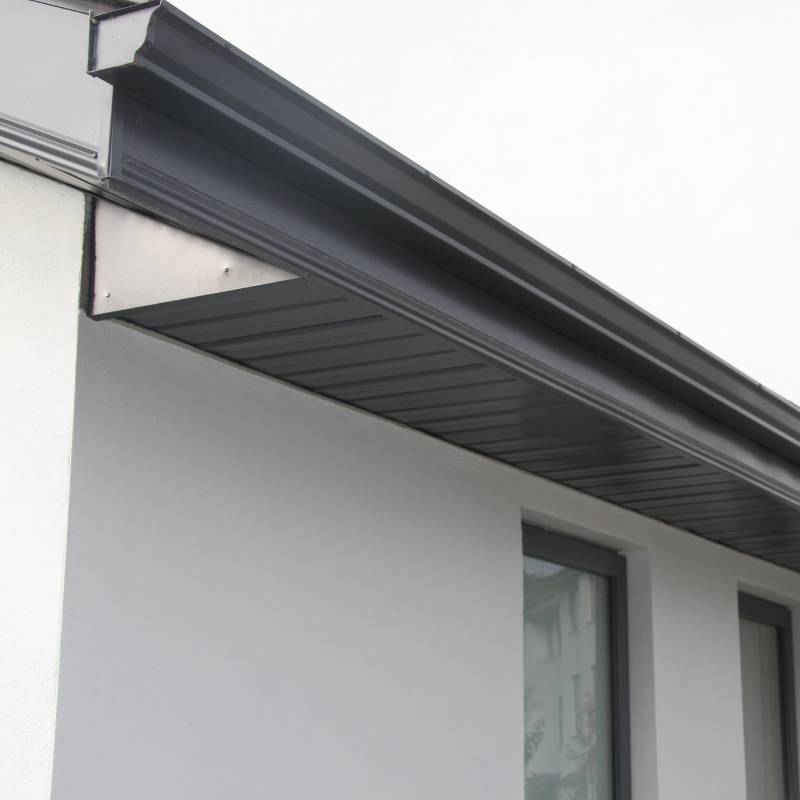

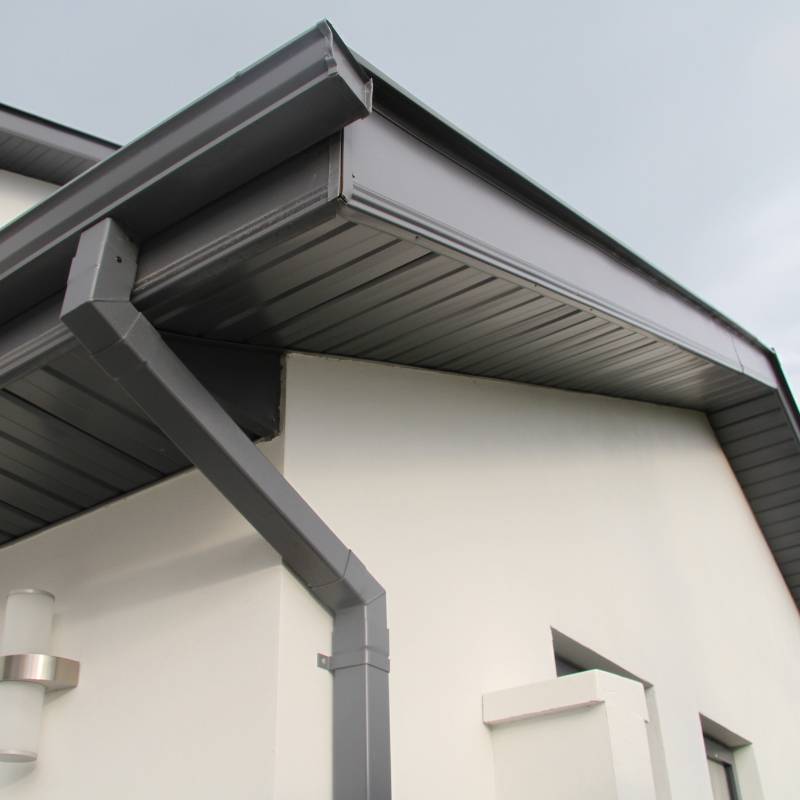

Seamless OGEE Guttering System - Aluminium Gutter
Verified by manufacturer 6 months ago
125 mm (5") Seamless OGEE Gutter
125 mm (5") Seamless OGEE Gutter
ISO 9001 Quality Management
Certificate type
Continuous ogee gutters manufactured on site to provide the essential architectural features appropriate to both modern and traditionally designed buildings.
Application
Continuous ogee gutters manufactured on site to provide the essential architectural features appropriate to both modern and traditionally designed building.
Can be used as a replacement for cast iron.
Compatible with common downpipes:
- 63, 76 and 102 mm circular downpipes;
- 76 x76 and 102 x 102 mm square downpipes;
- 102 x 76 mm rectangular downpipes.
Description
Continuous ogee gutters manufactured on site to provide the essential architectural features appropriate to both modern and traditionally designed buildings.
The preformed elements slide together and are sealed with mastic and pop riveted or crimped together. They are fixed directly to fascia board through the back of the gutter with the use of internal brackets or with the use of mounting brackets.
Features and benefits:
- Manufactured from 298/ 381 mm coil aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy grade EN AW-1050A H14.
- Available in two standard sizes (5" and 6").
- ARS or polyester coated high gloss coil finish.
- Can be used as a direct replacement for cast iron.
- Compatible with common circular, square and rectangular downpipes.
- Can be used on both flush and projecting eaves.
- Non-combustible to EN 13501-1:2007 + A1:2009.
- Life expectancy of 40 years or more.
- Special requirements can be accommodated (special angles, brackets etc.).
General information
Color | White Guidance for specification option: RAL 9016 Traffic White. Black Guidance for specification option: RAL 9005 Jet or Ripple Black. Grey Guidance for specification option: RAL 7015 Slate Grey or RAL 7016 Anthracite Grey. Brown Guidance for specification option: Seamless Brown. Other Guidance for specification option: Where non-standard colours are required. |
Finish | Powder-coated Guidance for specification option: ARS or polyester coated. Matt |
Material | Aluminium Guidance for specification option: 298/ 381 mm coil aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy grade EN AW-1050A H14. |
Shape | Other |
Length | Bespoke |
Width | 125 mm Guidance for specification option: Standard gutter section only (5"). 150 mm Guidance for specification option: Standard gutter section only (6"). |
Height | 95 mm Guidance for specification option: 5" profile. 124 mm Guidance for specification option: 6" profile. |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Specification data - Aluminium eaves gutters
Form | Extruded, manufactured from 298/ 381 mm coil aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy grade EN AW-1050A H14. |
Profile | Ogee. |
Size (nominal width) | 125 mm.Guidance for specification option: AE001, 5". 95 mm high, minimum width: 86 mm. Gutter capacity: 2.84 L/s. Manufacturer guidanceGutter capacities are based on EN 12056-3:2000, assuming a maximum distance of 50 x gutter depth, from high point to outlet. Longer gutters or gutters with corners exceeding 254 mm will have a reduced capacity. Flow rate will vary according to downpipe specified; consult manufacturer's literature for details. |
Thickness or gauge | 0.7/ 0.9 mm. |
Finish | ARS (abrasion resistant polyester).Guidance for specification option: Standard. See below for colour options. Polyester coated high gloss coil.Guidance for specification option: Matt. See below for colour options. All systems are polyester powder-coated in the manufacturer's in-house powder coating facility. |
Colour | RAL 9016 Traffic White.Guidance for specification option: Polyester powder-coated finish only. RAL 9005 Jet Black.Guidance for specification option: Polyester powder-coated finish only. RAL 7015 Slate Grey.Guidance for specification option: Polyester powder-coated finish only. RAL 7016 Anthracite Grey.Guidance for specification option: Polyester powder-coated finish only. Seamless Brown.Guidance for specification option: Polyester powder-coated finish only. |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: Not applicable for mill finish. |
Integral accessories | 1 mm inside box mitre, 90°.1 mm inside box mitre, 135°.1 mm inside box mitre, custom angle.1 mm outside box mitre, 90°.1 mm outside box mitre, 135°.1 mm outside box mitre, custom angle.Bay mitre, inside 135°.Bay mitre, outside 135°.Strip mitre, inside 90°.Strip mitre, outside 90°.Pop-in outlet.Guidance for specification option: Specify downpipe size & shape required:
End cap, pressed, left-hand side.End cap, pressed, right-hand side.End cap, 1 mm, left-hand side.End cap, 1 mm, right-hand side.Slip connector.Manufacturer guidanceConsult manufacturer's literature for dimensions etc. See also Brackets below. |
Brackets | Standard fascia brackets. Secret fix screw hanger brackets. Secret fix standard brackets. Secret fix deep brackets. |
Fire rating (to BS EN 13501) | Non-combustible to EN 13501-1:2007 + A1:2009. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Norway |
Country of product manufacture | Ireland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
ISO 9001 Quality Management
iso cert
