Seamless Half Round Guttering System - Aluminium Gutter
Verified by manufacturer 11 days ago
ISO 9001 Quality Management
Certificate type

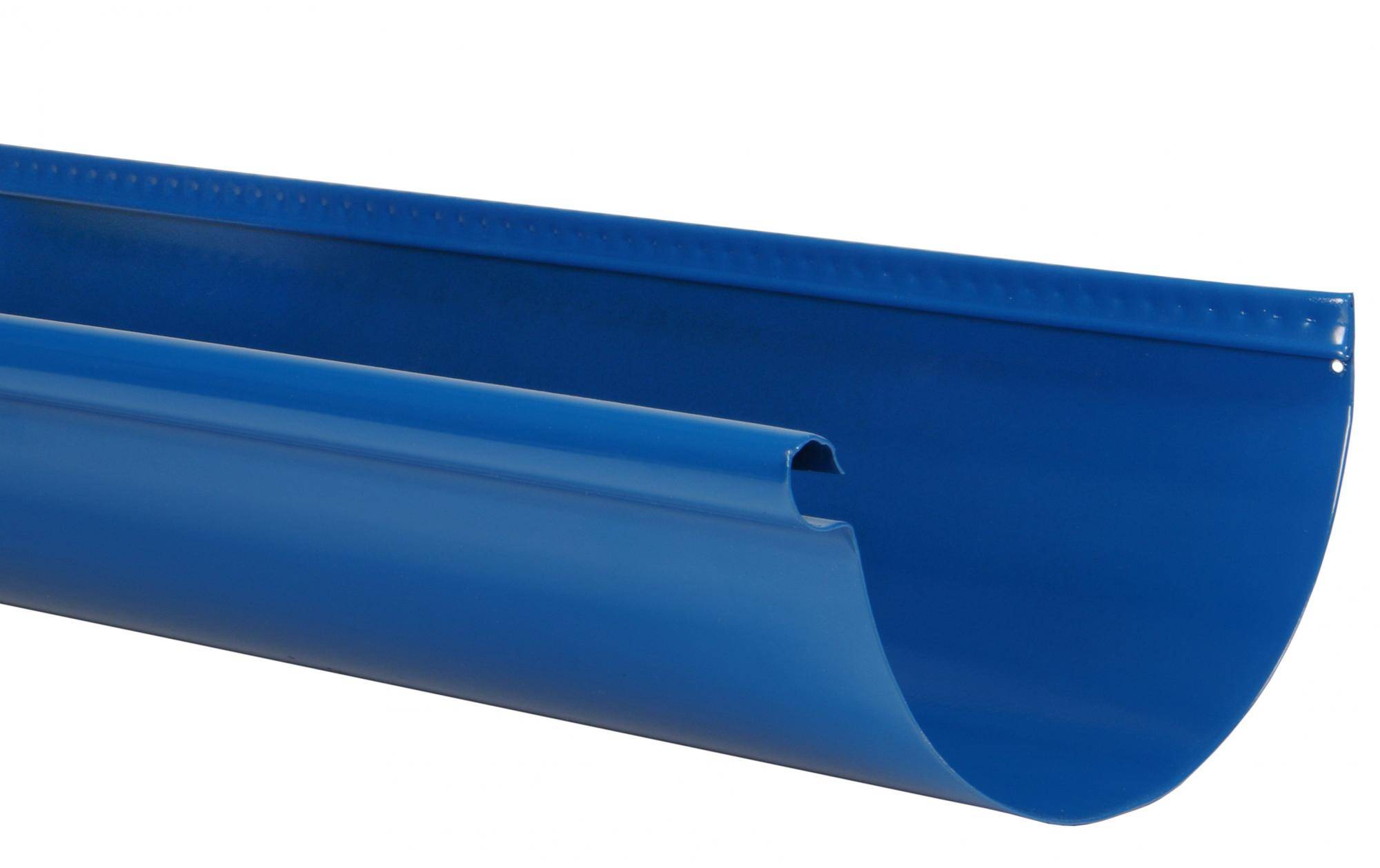

Half round gutters designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings.
Application
Half round gutters designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings. Can be used:
- As a replacement for cast iron.
- On both flush and projecting eaves.
Compatible with common downpipes:
- 63, 76 and 102 mm circular downpipes;
- 76 x76 and 102 x 102 mm square downpipes;
- 102 x 76 mm rectangular downpipes.
Description
Half round gutters designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings.
The various elements slide together and are sealed with mastic and riveted together. They are fixed directly in place with any of a range of mounting brackets. Note: if decór brackets are used hidden screw hangers must be used also.
Features and benefits:
- Manufactured from 301 mm coil aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy grade EN AW-1050A H14..
- Standard size (6").
- Coil or polyester powder coated finish.
- Can be used as a direct replacement for cast iron.
- Compatible with common circular, square and rectangular downpipes.
- Can be used on both flush and projecting eaves.
- Non-combustible to EN 13501-1:2007 + A1:2009.
- Life expectancy of 40 years or more - aluminium gutter systems have a low maintenance life in excess of 40 years in rural and suburban conditions and in excess of 25 years in industrial and marine conditions.
- Special requirements can be accommodated (length, colour, special angles, brackets etc.).
General information
Color | White Guidance for specification option: RAL 9016 Traffic White. Black Guidance for specification option: RAL 9005 Jet or Ripple Black. Grey Guidance for specification option: RAL 7015 Slate Grey or RAL 7016 Anthracite Grey. Brown Guidance for specification option: Seamless Brown. |
Finish | Powder-coated Matt Guidance for specification option: Powder coated. |
Material | Aluminium Guidance for specification option: 298/ 381 mm coil aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy grade EN AW-1050A H14. |
Shape | Circle Crescent Other |
Length | Bespoke |
Width | 150 mm Guidance for specification option: Standard gutter section only (6"). |
Height | 76 mm Guidance for specification option: Standard gutter section only. |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Specification data - Aluminium eaves gutters
Form | 301 mm coil aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy grade EN AW-1050A H14. |
Profile | Half-round, seamless. |

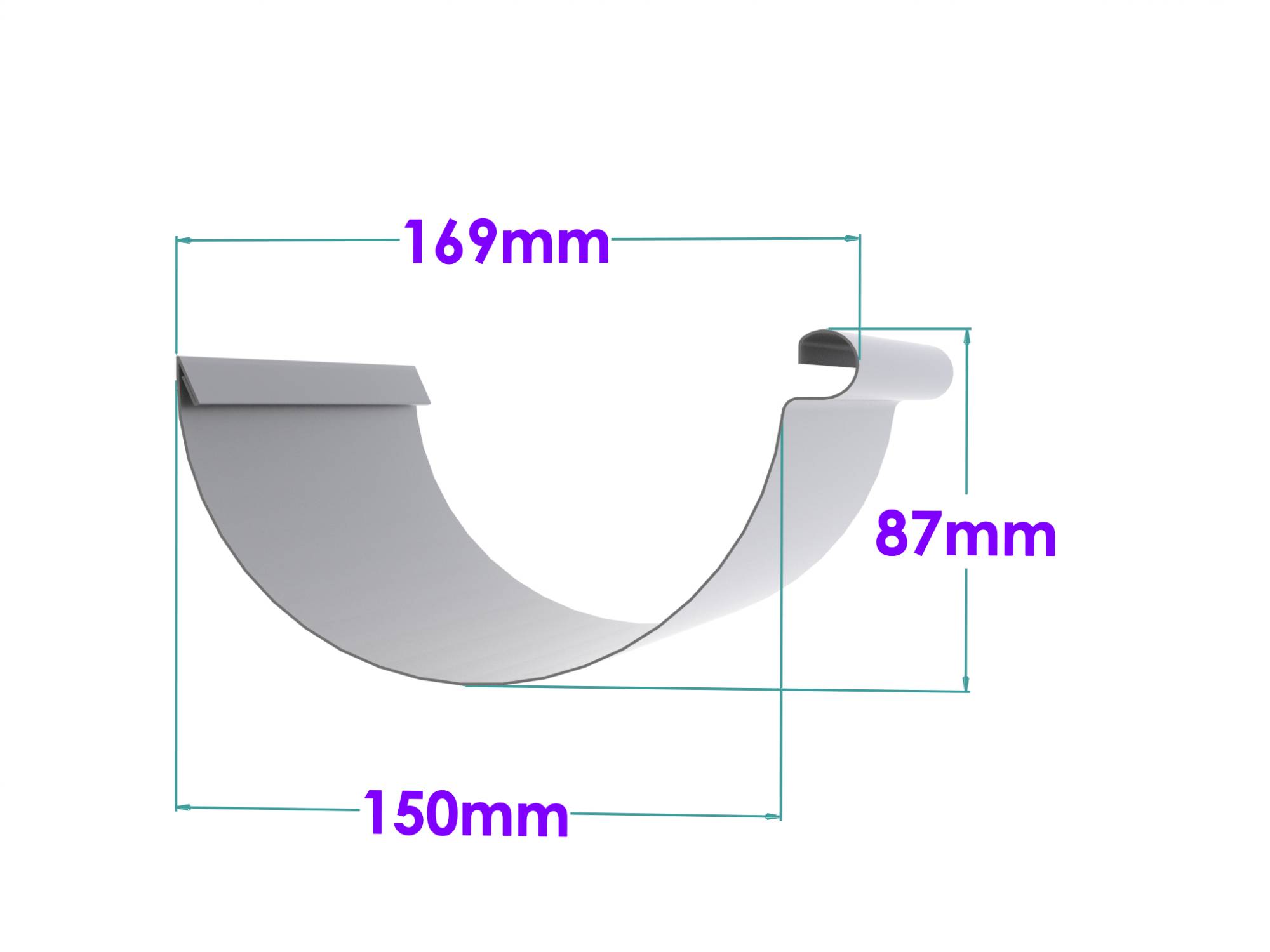

Size (nominal width) | 150 mm.Guidance for specification option: 6". Gutter capacity: 1.45 L/s. Manufacturer guidance76 mm high (87 mm overall). Gutter capacities are based on EN 12056-3:2000, assuming a maximum distance of 50 x gutter depth, from high point to outlet. Longer gutters or gutters with corners exceeding 254 mm will have a reduced capacity.
Flow rate will vary according to downpipe specified; consult manufacturer's literature for details. |
Thickness or gauge | 0.9 mm. |
Finish | ARS (abrasion resistant polyester).Guidance for specification option: Standard. See below for colour options. Powder coating to BS EN 12206-1, matt.Guidance for specification option: See below for colour options. All systems are polyester powder-coated in the manufacturer's in-house powder coating facility. Coil coated. |
Colour | RAL 9016 Traffic White.Guidance for specification option: Polyester powder-coated finish only. RAL 9005 Jet Black.Guidance for specification option: Polyester powder-coated finish only. RAL 7015 Slate Grey.Guidance for specification option: Polyester powder-coated finish only. RAL 7016 Anthracite Grey.Guidance for specification option: Polyester powder-coated finish only. Seamless Brown.Guidance for specification option: Polyester powder-coated finish only. |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: Polyester powder-coated only; not applicable for mill finish. |
Integral accessories | External box mitre, 90°.Internal box mitre, 90°.External 135° strip mitre.Internal 135° strip mitre.Drop in outlet.Guidance for specification option: Specify downpipe size & shape required:
End cap.Manufacturer guidanceConsult manufacturer's literature for dimensions etc. See also Brackets below. |
Brackets | Standard fascia brackets. Rafter brackets. Spiked brackets. Rise & fall brackets. Standard brackets and gutter wedges. |
Fire rating (to BS EN 13501) | Non-combustible to EN 13501-1:2007 + A1:2009. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Norway |
Country of product manufacture | Ireland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
ISO 9001 Quality Management
iso cert
Literature
Colour Chart
Product Data Sheet Seamless Half Round Gutter System
