Schöck Isokorb® T Type SK - Load-bearing thermal insulation element

Name: Schöck Isokorb® T Type SK - Load-bearing thermal insulation element
Brand: Schöck Ltd
SKU: fmeMha7GeH2fQgoXr6HdtX

Verified by manufacturer 3 months ago

Schöck Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type

Load-bearing thermal insulation element with 80 mm insulation thickness for connecting cantilevered steel balconies to reinforced concrete slabs.

Jump to:

+44 (0)1865 290 890 Website

Application

The Schöck Isokorb® T type SK makes it easy to solve the technical, thermal and structural issues of designing modern balconies and facades.

Description

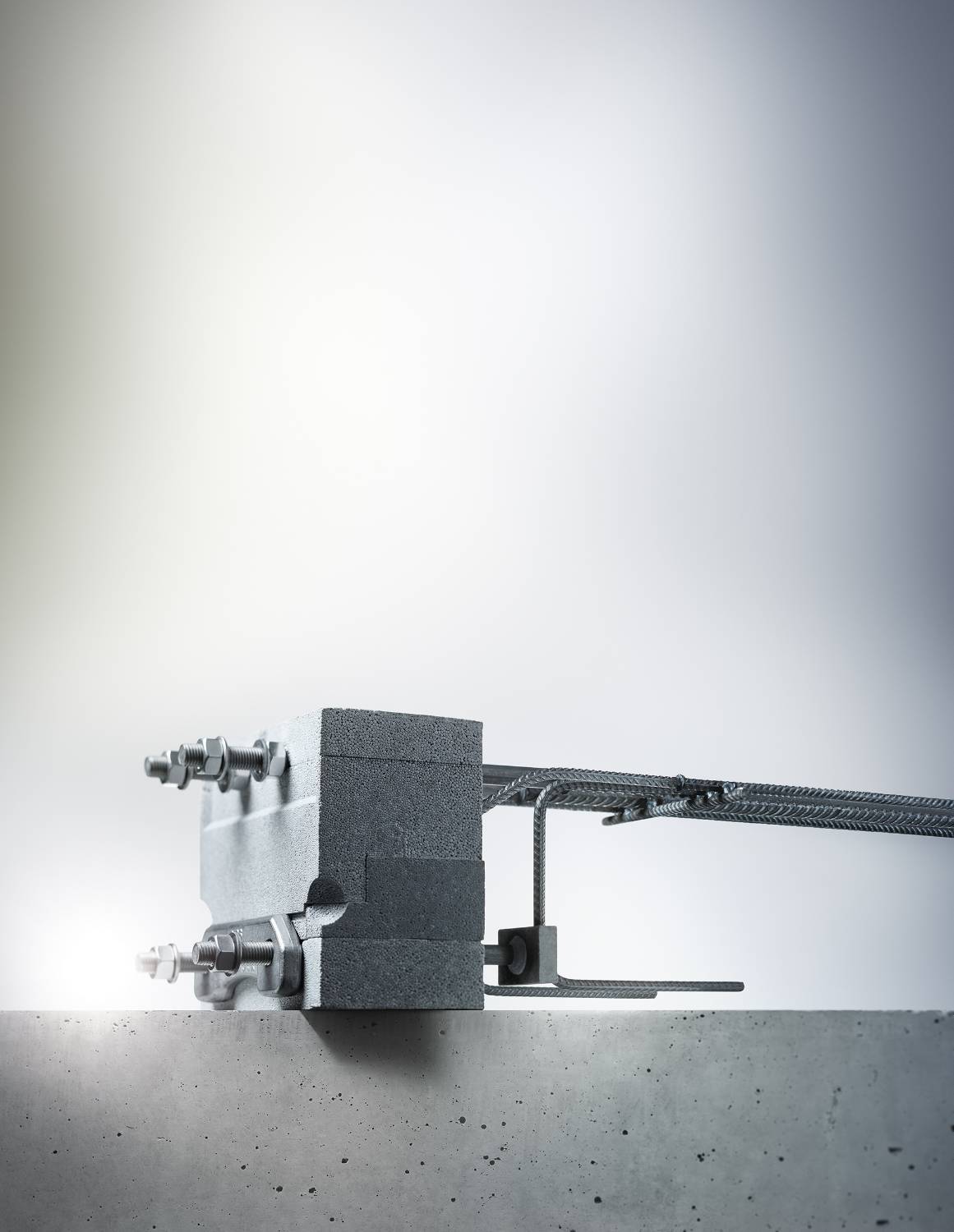

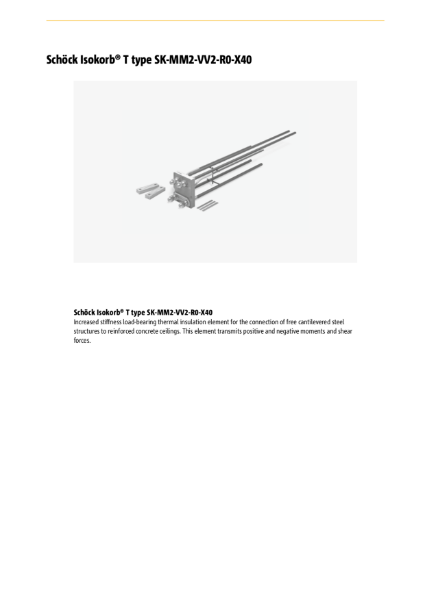

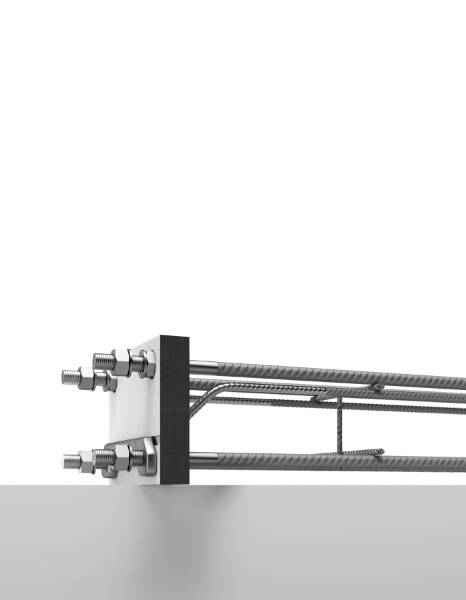

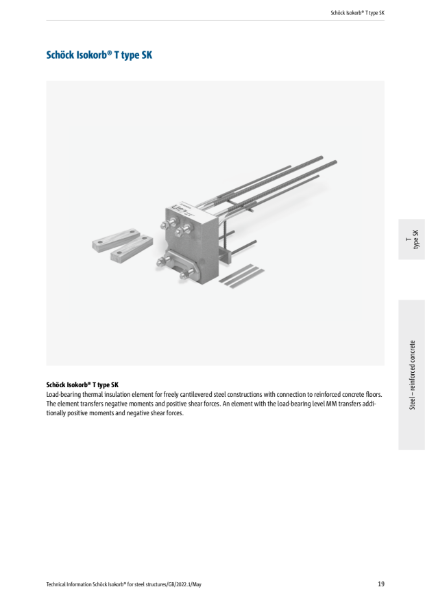

The Schöck Isokorb® T type SK is a load-bearing thermal insulation element with 80 mm insulation thickness (or 40 mm for increased stiffness) for connecting cantilevered steel bolt-on balconies to reinforced concrete slabs.

Features and benefits:

Construction dependability: Cantilevered steel structures such as steel balconies with no risk of condensation, mould or corrosion.
Broad range of applications, e.g. for steel balconies, steel canopy roofs, facade substructures or shade systems.
Installation jig: For fast and accurate installation.

General information

Color	Silver
Material	Polystyrene Stainless steel
Shape	Rectangle
Length	180 mm
Width	80 mm 40 mm
Height	180 mm 200 mm 220 mm 240 mm 260 mm 280 mm Show more
Warranty description	60 year

Uniclass	Pr_35_90_15_88 Thermal break shear load connectorsPrimary
CAWS	E42/110 Accessories specified elsewhere E42/110 Accessories specified elsewhere E42/330 Anchor bolts

Specification data - Thermal break shear load connectors

Certification	DiBt approval Z-15.7-292. BBA certificate 05/4277.
Material	Stainless steel with Neopor® polystyrene hard foam.
Thickness of structural deck	Guidance for specification option: Insert requirements, consult manufacturer's literature for information.
Shear load (maximum)	Guidance for specification option: Insert requirements for the main load-bearing and secondary load-bearing levels. Consult manufacturer's literature for information.
Fire resistance	R0.

Performance	Guidance for specification option: Insert requirements, consult manufacturer's literature for information.
Dimensions	Guidance for specification option: Insert requirements to describe: Insulating element height (H) and length (L); Thread diameter (D). Note that insulating element thickness is fixed at 120 mm.
Insulation	80 mm insulating element. Guidance for specification option: Standard. 40 mm insulating element. Guidance for specification option: For increased stiffness.
