Schöck Isokorb® T Type S - Load-bearing Thermal Insulation Element
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
Load-bearing thermal insulation element for new and renovation steel-steel structures.
Application
The Schöck Isokorb® T type S for steel constructions is comprised the modules S-V and S-N for tension, compression and moment forces. The quantity and layout at the connections are dictated by the load and the size of the profiles used.
The modular design of the Schöck Isokorb® T type S ensures that it can be adapted to all profile sizes and load bearing capacity requirements.
Description

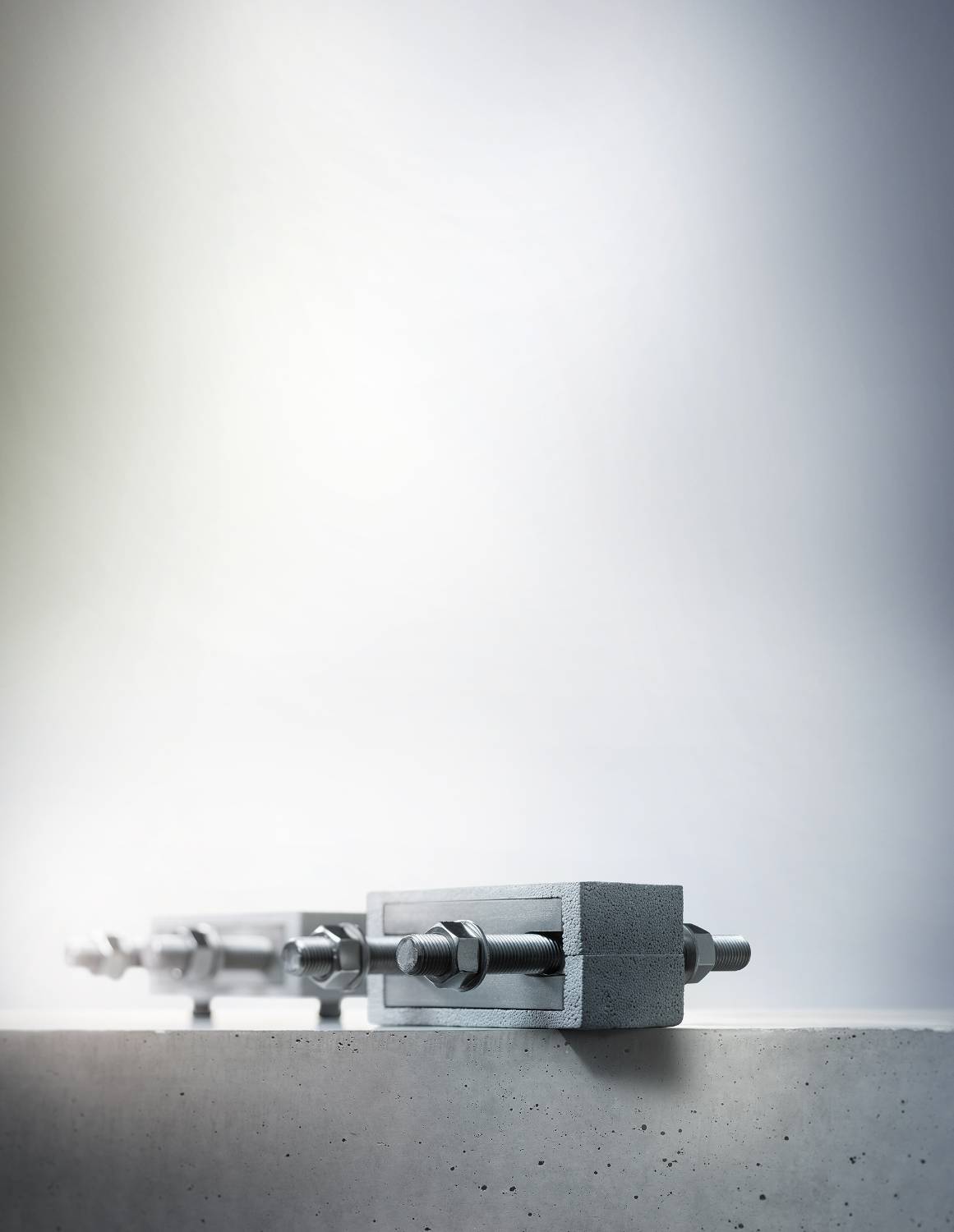

The Schöck Isokorb® T type S is a load-bearing thermal insulation element for connecting cantilevered steel elements to steel structures in new construction or renovation projects. Steel constructions can be realised, and penetrating support structures such as canopy roofs, frame system crossbars or balconies, can be reliably separated and thermal bridges resolved.
Features and benefits:
- Easy to install: Bolted end plate connections – for all common steel profiles.
- Modular design: Separate insulation spacers allow for height adjustment on site.
- Stainless steel: High load-bearing capacity and reliable thermal insulation.
- Versatile: Can be used in new buildings, renovation projects and special applications.
General information
Color | Silver |
Material | Polystyrene Stainless steel |
Shape | Rectangle |
Length | 180 mm |
Width | 80 mm |
Height | Manufacturer guidanceMinimum height of 140mm: Vertical lever arm between modules bolts dictates the maximum height. |
Warranty description | 60 year |
Uniclass | |
CAWS | G10/304 Proprietary bolt assemblies G10/40 Bolt assemblies |
Specification data - Thermal break shear load connectors
Certification | DiBt approval Z-14.4-518. |
Material | Stainless steel with Neopor® polystyrene hard foam. |
Thickness of structural deck | Guidance for specification option: Insert requirements, consult manufacturer's literature for information. |
Shear load (maximum) | Guidance for specification option: Insert requirements for internal static force of the main load capacity and secondary load-bearing level. Consult manufacturer's literature for information. |
Fire resistance | R0. |
Type | Type S-N. Type S-V. Manufacturer guidanceInsert requirement, consult manufacturer's literature for information. |
Performance | Manufacturer guidanceInsert requirements, consult manufacturer's literature for information. |
Dimensions | Manufacturer guidanceInsert requirements, consult manufacturer's literature for information. |
Insulation | 80 mm insulating element. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Third party certifications
BBA Agrément Certificate
Schock Isokorb Connectors - T type S Modules
Literature
Technical Information Schoeck Isokorb T type S
OISD Thermal Test Report Schoeck Isokorb T type S
Advisory Opinion Fire Protection Schoeck Isokorb T type S
Case studies
Albion Riverside
Les Turbulences, FRAC Centre

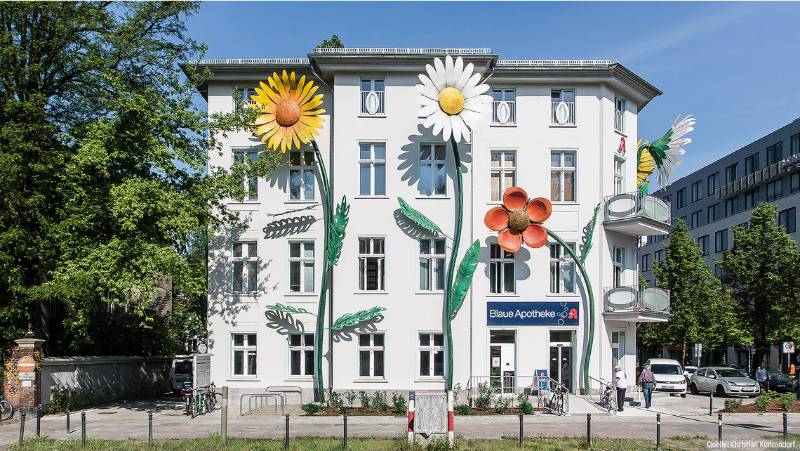

The Treptow Medical Centre
