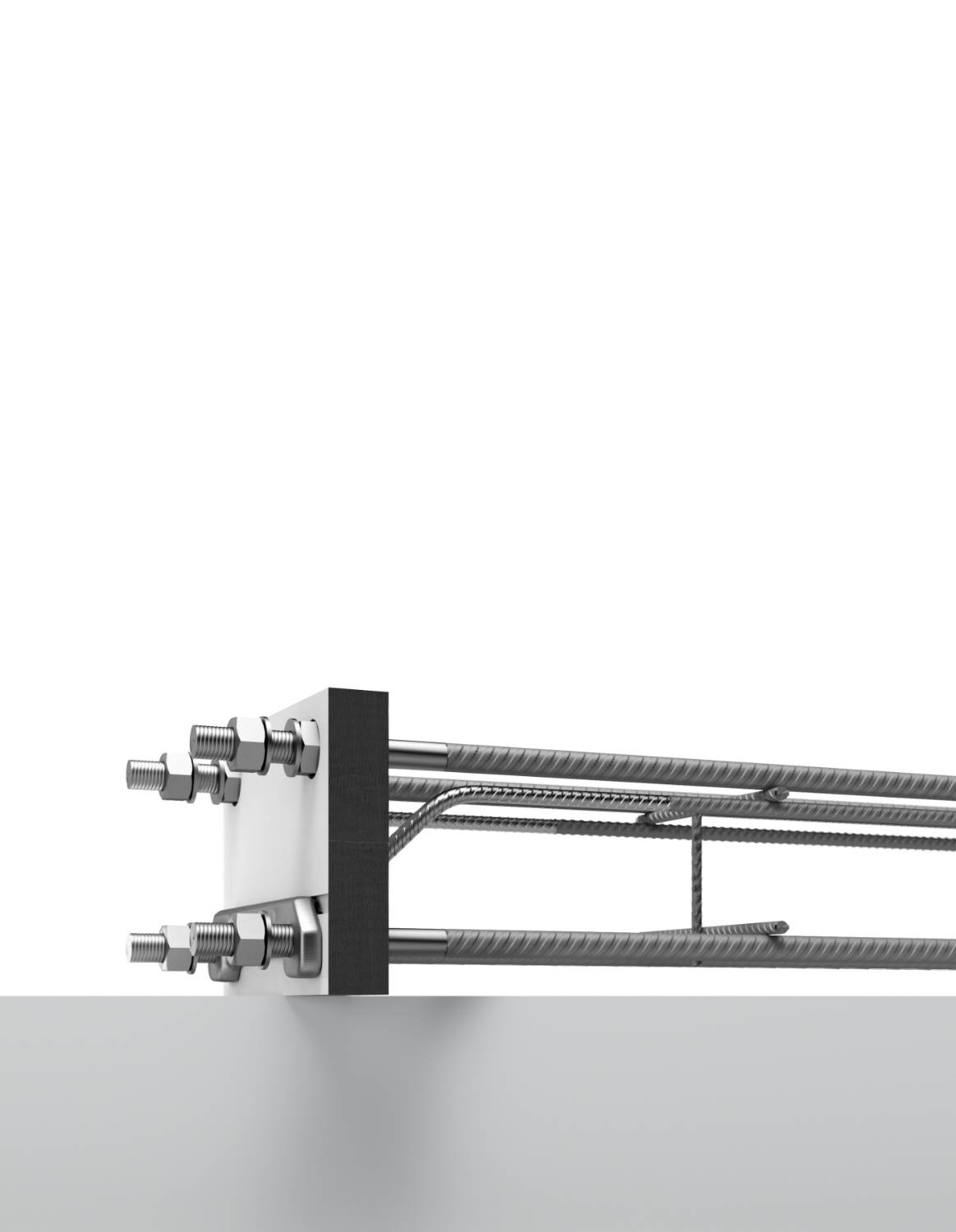

Schöck Isokorb® IQ Type SK (Formerly M Type SK) - Load-bearing Thermal Insulation Element

Verified by manufacturer 1 day ago

Schöck Ltd

Load-bearing thermal insulation element with 40 mm insulation thickness for connection between steel modular balconies and reinforced concrete slabs.

Jump to:
+44 (0)1865 290 890 Website

Application

The Schöck Isokorb® IQ type SK makes it easy to solve the technical, thermal and structural issues of designing modern lightweight modular balconies.

Description

The Schöck Isokorb® IQ type SK is a load-bearing thermal insulation element with a non-combustible 40 mm insulation thickness for connecting cantilevered modular balconies to reinforced concrete slabs.

Features and benefits:

  • Proven thermal performance: Meets the requirements of Building Regulations Part L for heat loss and condensation control.
  • Increased strength and stiffness: Allows less connectors and increased anchor spacing.
  • Optimized construction: Less façade penetrations provides cost savings from reduced secondary interfaces.
  • Non-combustible: Designated A2-s1,d0 reaction to fire classification to BS EN 13501-1.
  • Vibration tested: Independently tested and proven to exceed the frequency requirements of BS 8579.
  • Flexibility for connection: Optimized bolt layout allows more choice for section type for stub bracket/ balcony arm.

General information

Color

Grey

Silver

Material

Fibre cement

Stainless steel

Carbon steel

Shape

Rectangle

Length

300 mm

Guidance for specification option:

Length of insulation.

Width

40 mm

Guidance for specification option:

Thickness of insulation.

Height

200 mm

Uniclass

Pr_35_90_15_88 Thermal break shear load connectorsPrimary

CAWS

E42/330 Anchor bolts

E42/335 Shear Load Connectors

E42/110 Accessories specified elsewhere

E42/335 Shear load connectors

E42/110 Accessories specified elsewhere

Specification data - Thermal break shear load connectors

Material

Stainless steel with Aestuver® insulation.

Guidance for specification option:

This insulating material is cement-bonded, fibreglass-reinforced lightweight concrete, building material classification A1, λ = 0.23 W/(m·K).

Thickness of structural deck

-

Manufacturer guidance

Insert requirements, consult manufacturer's literature for information.

Shear load (maximum)

45 kN.

Manufacturer guidance

Insert requirements for the main load bearing level (MM2) and secondary load-bearing level (VV2).


Consult manufacturer's literature for information.

Fire resistance

Non-combustible.

Guidance for specification option:

A2-s1, d0.

Performance:

λeq = 0.741 W/m·K.

Manufacturer guidance

Insert requirements, consult manufacturer's literature for information.

Dimensions

200 x 300 mm.

Manufacturer guidance

Insulating element height (H) x length (L) mm.


  • Thread diameter: M22.
  • Spacer shims:  Thickness 2 mm and 3 mm, length 180 mm, width 15 mm.

Insulation

40 mm insulating element.

Sustainability data

Manufacturing plant location

Material

Fibre cement
Stainless steel
Carbon steel

Literature

Installation Instructions Schoeck Isokorb IQ Type SK

Installation Instructions Schoeck Isokorb IQ Type SK

Technical Information Schoeck Isokorb IQ Type SK

Technical Information Schoeck Isokorb IQ Type SK

Product Brochure

Product Brochure
