Schöck Combar® - GFRP Reinforcement

Verified by manufacturer 2 months ago

Schöck Ltd Third party certifications:
  • DIBt

    DIBt

    Certificate type

Glass fibre polymer concrete reinforcement.

Jump to:
+44 (0)1865 290 890 Website

Application

Application examples include taking advantage of its easy machinability in tunnel construction, or of glass fibre reinforcement's lack of electromagnetic conductivity in transformers or research facilities. Further benefits of glass fibre reinforcement include its corrosion resistance when building bridge parapets and barrier walls. Technically superior and cost-efficient solutions can be achieved with glass fibre reinforcement in these and numerous other applications.

Description

Glass fibre polymer concrete reinforcement used an alterative to traditional steel reinforcement.

General information

Color

White

Material

Glass Fibre

Shape

Circle

Length

10000 mm

Guidance for specification option:

8 mm bar diameter.

11800 mm

Guidance for specification option:

12, 16 and 20 mm bar diameter.

14500 mm

Guidance for specification option:

25 and 32 mm bar diameter.

Width

Manufacturer guidance

Bar diameter.

Uniclass

Pr_20_96_71_28 Fibre-reinforced plastics bar reinforcementPrimary

CAWS

E30/240 Proprietary prefabricated reinforcement

Specification data - Fibre-reinforced plastics bar reinforcement

Reinforcement material

Glass fibre.

Diameter

8 mm.

12 mm.

16 mm.

20 mm.

25 mm.

32 mm.

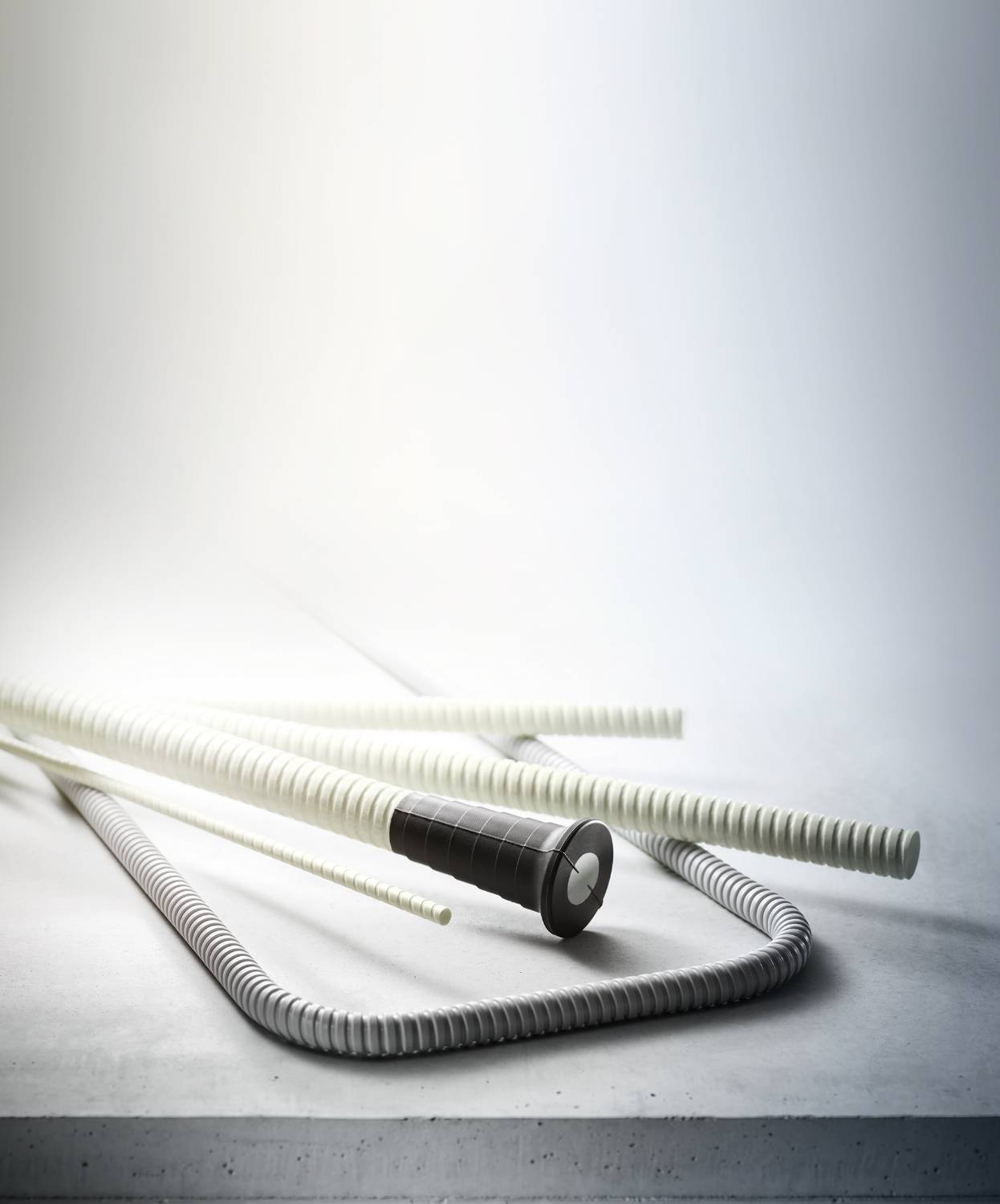

Type

Bars with anchorage heads.

Guidance for specification option:

Available 12–32 mm in diameter.

Bent bars/ stirrups.

Guidance for specification option:

Insert requirements, available 12–20 mm in diameter.

Straight bars.

Accessories

None.

Cable ties.

Clips.

Spacers.

Wire rope grips.

Tensile strength (minimum)

>1000 N/mm² (ultimate).

Third party certifications

DIBt

DIBt

DiBt German National Technical Approval for Schoeck Combar
