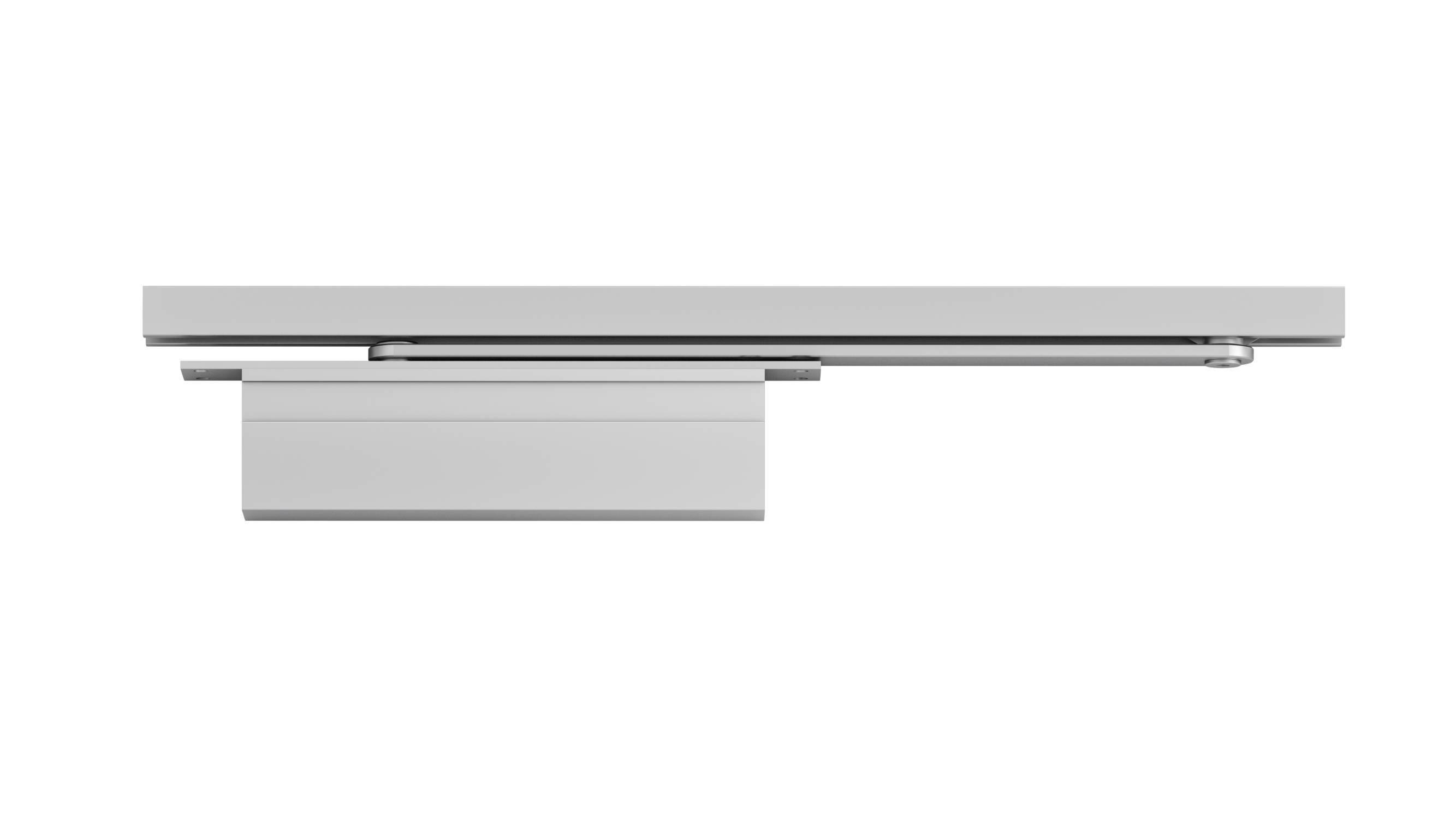

SC-CE3F Cam Action Concealed Door Closer
Verified by manufacturer 5 months ago
A cam action concealed door closer.
Application
University residential blocks, high end residential buildings,
commercial buildings requiring high level aesthetics with a
hidden closer or in areas where vandalism may be a concern.
Description
A high efficiency concealed closer, offering all the
functionality of a power size 3 closer, with the discretion
of being hidden from view. The exceptionally small profile of this door closer means it is quicker to install.
The cam action mechanism helps to meet the requirements of BS8300. Combining this with the CE mark and fire testing for timber doors, the SC-CE3F is ideal for commercial applications.
Features and benefits:
- Small profile for quick fitting.
- Tested to BS EN 1154.
- BS EN 1634 Part 1 : 2000 assessed for use on 30/60 minute timber fire doors.
- Fixed power size 3.
- Helps to meet the requirements of BS8300.
- Hold open option also available (not suitable for fire doors).
- Non-handed.
- Opening angle: 120°.
- Maximum door width: 950 mm.
- Maximum door weight: 60 kg.
- Built-in pressure relief valve protects against abuse.
- Stable hydraulic fluid offers low sensitivity to temperature fluctuation.
- Needle bearings giving optimal performance and efficiency.
- Suitable for superior aesthetics or reduced vandalism.
- Guide rail dampener available.
- Adjustable closing and latching speed.
- UKCA and CE marked.
- Ten year guarantee.
General information
Color | Silver |
Finish | Satin |
Shape | Rectangle |
Length | 460 mm |
Width | 32 mm |
Height | 76 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Specification data - Controlled door closers
Standard | To BS EN 1154 and BS 8300. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | 3. |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Concealed door closer. |
Closer functions | Latching. |
Materials and finishes | |
Colour | Silver. |
Execution | Adjusting controlled door closers. |
Accessories | A100 mechanical hold-open (not suitable for fire door). A110 guide rail dampener. SC-CE3F-30-IK Intumescent pack (required for FD30 fire doors). SC-CE3F-60-IK Intumescent pack (required for FD60 fire doors). |
Sustainability data
Contains Red List materials | No |
Literature

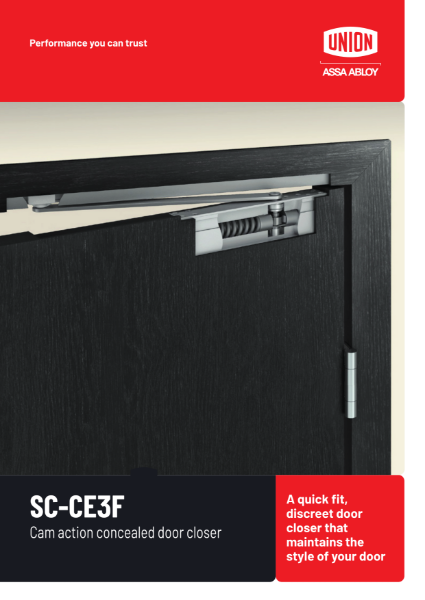

SC-CE3F Cam Action Concealed Door Closer
