SayfaGuard™ Ladder - Ladder System
Verified by manufacturer 1 day ago

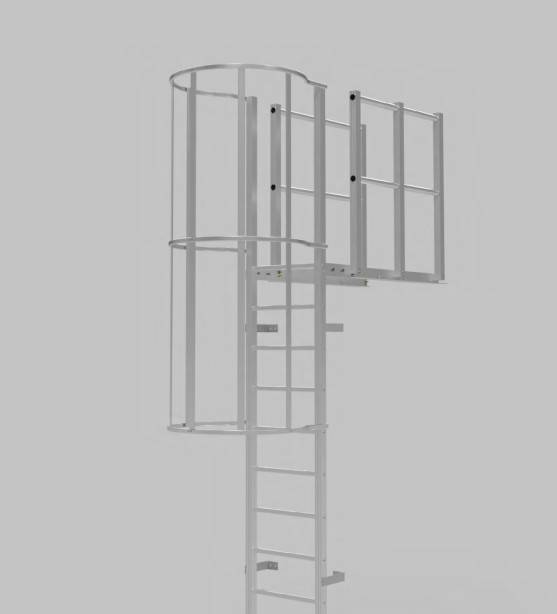

The SayfaGuard™ Ladder range provides users with safe access across multiple levels. The ladder systems can be equipped with additional safety features such as platforms, cages, and restraint systems.
Application
The ladder system can be designed and installed to meet the height requirements of all buildings and structures. The system is modular allowing for easy assembly and installation.
The ladder system is suitable for fixing to profiled metal, brick and mortar, steel, and concrete.
Description
The SayfaGuard™ Ladders is an extensive range of ladder systems designed & manufactured by Sayfa Group™ in the UK.
The ladder range consists of modular sections which can be assembled to meet the needs of the building or structure. Additional safety features are available including safety cages, restraint systems, and platforms as required.
Features and benefits:
- The SayfaGuard™ Ladder range conforms to BS 4211-2005 + A1-2008 and BS EN ISO 14122-4 :2016.
- Designed and assembled to order in line with specific project requirements.
- Available in either aluminium or stainless steel.
- Can be polyester powder coated to RAL colours to suit the required aesthetics.
General information
Color | Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Width | 500 mm |
Height | Bespoke |
Warranty description | 20 year Guidance for specification option: 10 year warranty as standard. 20 year Sayfa+ Warranty, partner inspected and certified at 12 month intervals. |
Uniclass | |
CAWS | L35/330 Ladders L35/130 Ladder system |
Specification data - Permanently-fixed vertical ladder systems
Classification data | |
Stiles | Required. |
Rungs | Required. |
Platforms | |
Material | Not required. Aluminium. Stainless steel. Manufacturer guidanceIn the event that a ladders height reaches or exceeds 10 m, a platform section is required to allow users to rest using the ladder. |
Safety cage | Required. Guidance for specification option: The ladder can be fitted with a safety cage which is designed to prevent the user falling away from the ladder rungs. Not required. |
System accessories | Not required. Rung covers. Guidance for specification option: For added security, to prevent unauthorised use of the ladder. Ladder gates. Guidance for specification option: For added security, to prevent unauthorised use of the ladder. Safety track. Guidance for specification option: Can be supplied fitted with a FallSecure™ Vertical Safety Track system. Bridge steps. Guidance for specification option: Consult manufacturer for details. |
Material (all components) | Aluminium. Stainless steel. |
Design/ size | Manufacturer guidanceConsult manufacturer and insert requirements. |
Finish | Anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 95 |
