Sayfa Group™ D-Ring - Singular Anchor Point
Verified by manufacturer 3 days ago

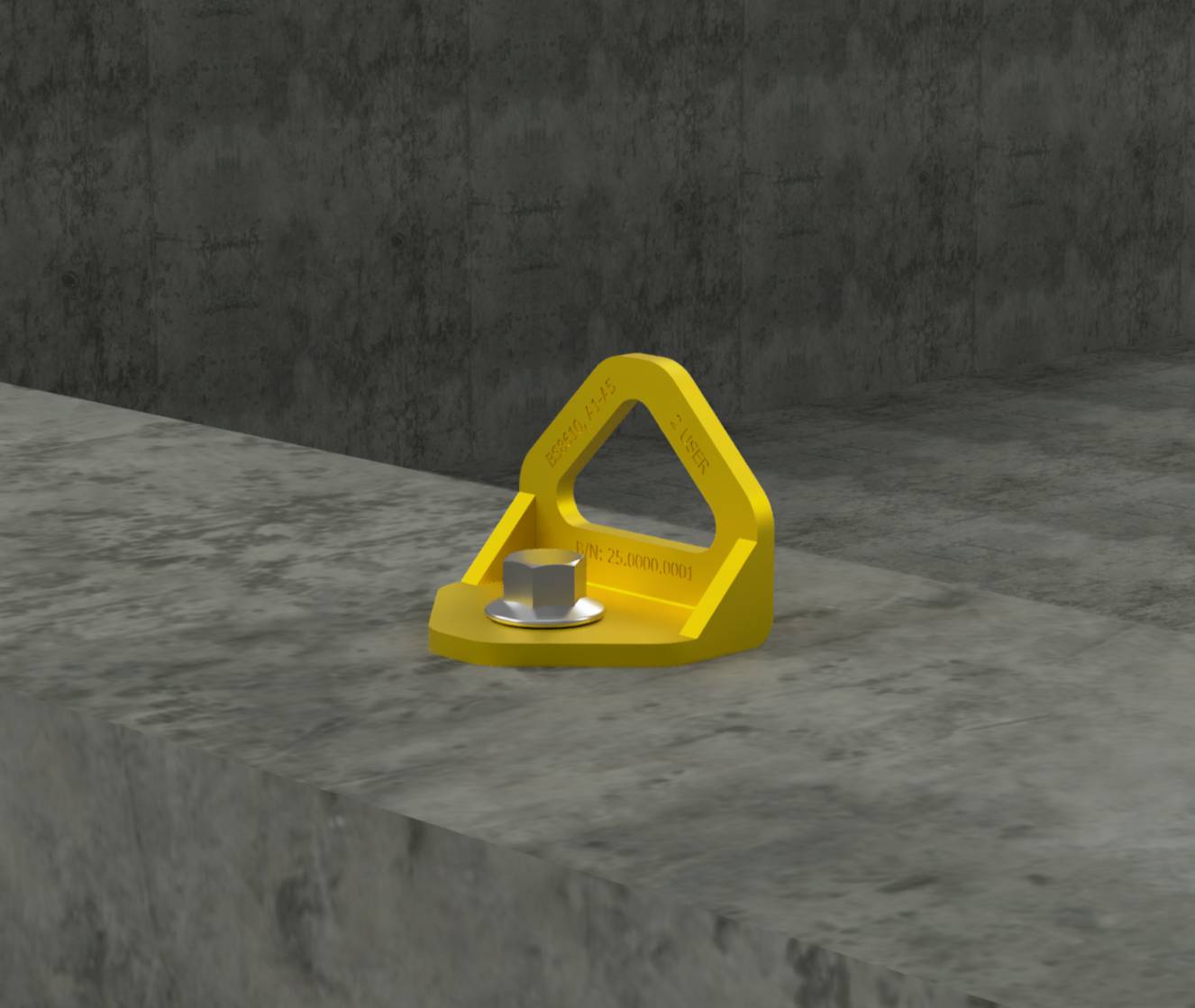

The Sayfa Group™ D-Ring is a singular anchor point suitable for use in fall restraint, fall arrest, and rope access scenarios. The D-Ring is rated for a maximum of two users or a SWL of 200 kg.
Application
An anchor point for use as a fall restraint and fall arrest tie-off point. The D-Ring can also be used for rope access as part of a duel anchor point configuration.
Description
The Sayfa Group™ D-Ring is the latest addition to the Sayfa Group™ range of personal fall protection systems. The 316 stainless steel anchor point has been third-party tested to BS 8610:2017 and is rated for two users dependent on fixing configuration and substrate, currently the D-Ring is only suitable for fixing to suitable concrete substrate.
Designed to be used as an individual fall restraint, fall arrest and rope access anchor point, the Sayfa Group™ D-Ring provides a fully compliant tie off point for users working at height. The anchor point is easy to install and offers a discreet means of protecting users when working at height.
Features and benefits:
- Tested to BS 8610:2017.
- Suitable for up to two users.
- Safe working load of 200 kg.
- Made of grade 1.4401, stainless steel.
- 15 year standard warranty, 30 year warranty with Sayfa+ warranty.
General information
Color | Other |
Finish | Powder-coated |
Material | Stainless steel |
Shape | Other |
Length | 55 mm |
Width | 70 mm |
Height | 55 mm |
Warranty description | 15 year Guidance for specification option: 15 Year standard warranty. 30 year Guidance for specification option: 30 Year Sayfa+ warranty. |
Uniclass | |
CAWS | N25/220 Single point anchorage devices N25/20 Single point anchorage devices |
Specification data - Safety access anchor devices
Classification data | |
Product reference | Sayfa Group™ D-Ring. |
Standard | To BS 8610. |
Third-party certification | SATRA certification. |
Anchor type | Multi-use screwed single point anchor. |
Ancillary equipment | M12 x 105 mm stainless steel concrete anchor. |
Material and finish | Grade 1.4401 stainless steel, powder-coated and laser etched. |
User | Up to two users for fall restraint. |
Safe Working Load | Up to 200 kg. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 60 year |
Literature
Brochure - Sayfa Group™ D-Ring (2025)
