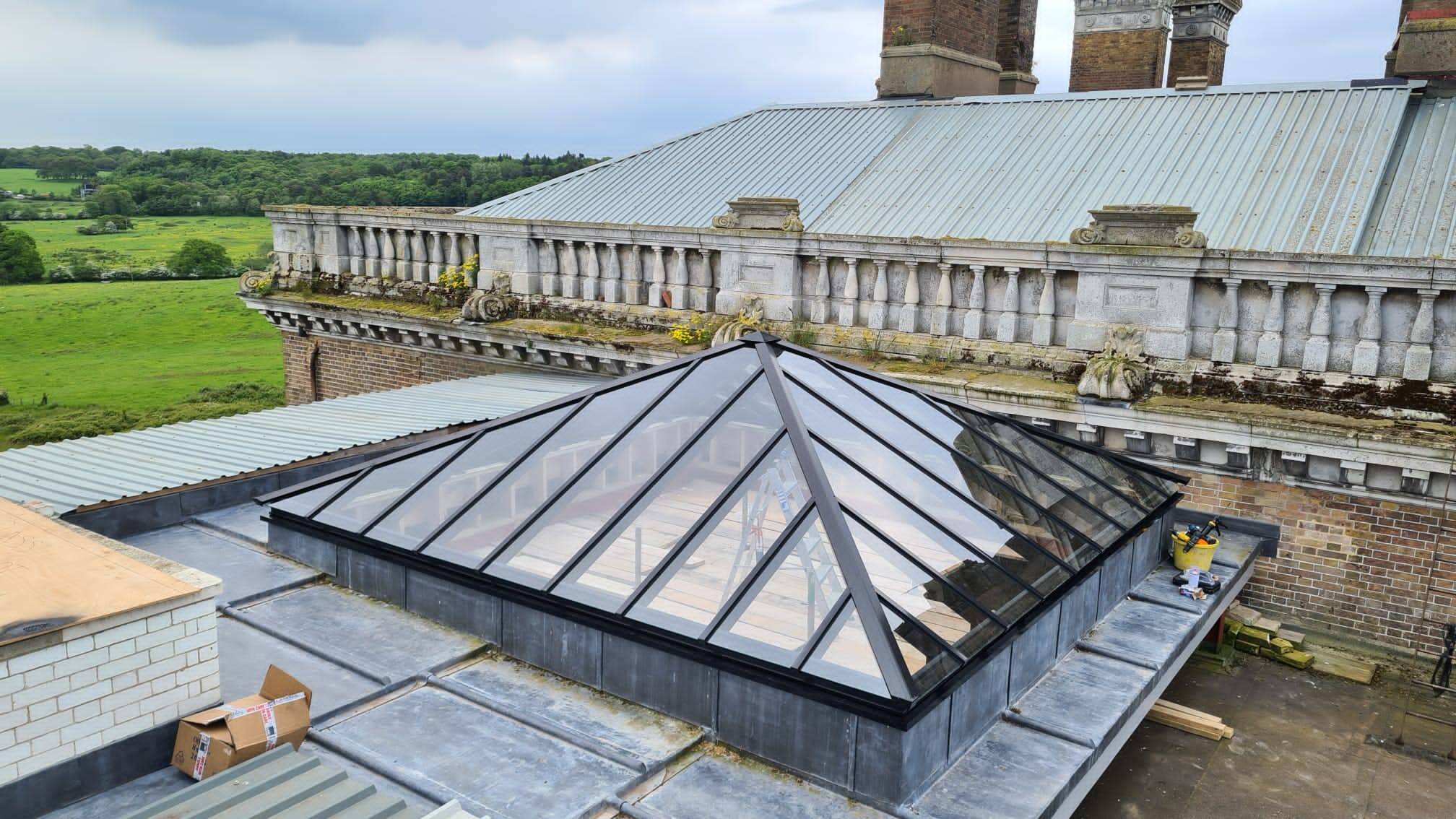

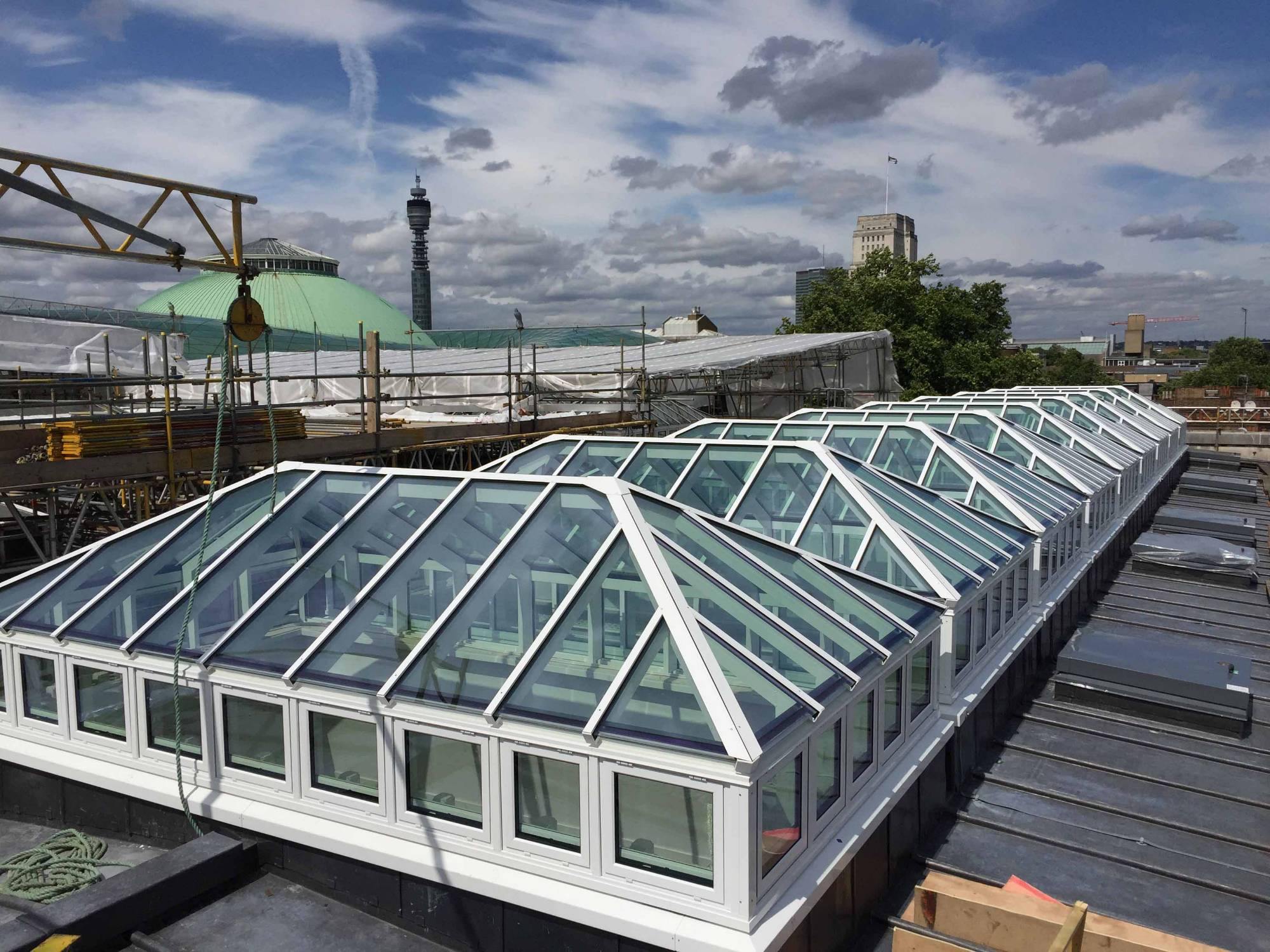

SafeGard Non-Fragile Roof Lanterns and Skylights - Shaped and Pitched Rooflights

Name: SafeGard Non-Fragile Roof Lanterns and Skylights - Shaped and Pitched Rooflights
Brand: Lonsdale Patent Glazing & Rooflights
SKU: a7m3HxHPQnAVbHVHJC3zLa

Verified by manufacturer 3 days ago

SpanGard

Lonsdale Patent Glazing & Rooflights

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type

Thermally broken aluminium rooflight system.

Jump to:

+44 (0)20 8801 4221 Website

Application

Thermally broken aluminium rooflight suitable for commercial, public, offices, universities, residential, schools, colleges, atriums and domestic rooflights, glass roofs and skylights.

For traditional roof lanterns and skylights for heritage and conservation buildings, please see our other product SpanGard.

Description

Manufactured from SafeGard TG50 box section rafter glazing bars and transoms, SafeGard Roof Lanterns meet the highest expectations in terms of modern skylight performance.

Classified Class 1 or Class 2 Non-Fragile TN66-67.
Class 4 Air-Tightness BS EN 12207.
EN 1650 Weather-tightness BS EN 12208.
Double or Triple Glazing with solar control options.
Optional day to day or smoke ventilation.

General information

Color	Silver Other Guidance for specification option: Polyester powder coated to any RAL, BS or Syntha Pulvin colour. Black Blue Bronze Brown Green Grey Red White Yellow Show more
Finish	Powder-coated Mill
Material	Aluminium Guidance for specification option: Aluminium alloy, 6063-T6 to BS 1474. Glass Guidance for specification option: Thermal glazing.
Shape	Rectangle Triangle Circle Elliptical Hexagon Octagon Oval Square Trapezoid Show more
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary Pr_20_65_34_72 Roof lanterns
CAWS	L10/460 Rooflights H10/115 Patent glazing L10/45 Rooflights H10/10 Patent glazing

SKU Code	SafeGard RL-TG50

Specification data - Framed rooflights

Classification data
Form	Span guard.
Size	Guidance for specification option: 600 mm nominal. Generally up to and including 750 mm. Wider centres can be accommodated in some circumstances. Consult manufacturer and insert requirements.
Product performance	-
Fire performance	-
Fire resistance	To EN 13501-5, BROOF(t4).
Reaction to fire	To EN 13501-1, Class B, s1-d0.
Whole window U-value	Guidance for specification option: Averaged U-values including glass and frame basis nominal 600 mm glazing bar centres are approximately: Double glazed centre pane: 1.0–1.6 W/m²·K. Triple glazed centre pane: 0.5–0.95 W/m²·K. Consult manufacturer and insert requirements.
Frame	-
Material	Aluminium. Guidance for specification option: Extruded aluminium alloy 6063-T6, to BS EN 573-3:1995, BS EN 755-2:1997 and BS EN 755-9:2001.
Finish	-
Coating	Mill finish. Guidance for specification option: Standard. Polyester powder-coating.
Colour	Not required. Guidance for specification option: (Mill finish). Powder-coating, colour. Guidance for specification option: Standard RAL or BS colours to BS 6496 available, consult manufacturer and insert requirements.
Film thickness (minimum)	Not required. Guidance for specification option: (Mill finish). 40 microns.
Glazing or infill	-
Type	6 mm clear toughened glass. 6 mm solid polycarbonate. 6.4 mm clear laminated glass. 7 mm wired safety glass. 16 mm multi-wall polycarbonate sheet blown free of swarf and taped both ends. 25 mm multi-wall polycarbonate sheet blown free of swarf and taped both ends. 28 mm low-e. Guidance for specification option: 1.5w/m2.k double glazed units consisting of 6.4 mm laminated, argon cavity and 6 mm toughened clear glass with stepped bottom edge. 28 mm super low-e. Guidance for specification option: 1.1w/m2.k double glazed units consisting 6.4 mm laminate, argon cavity and 6 mm toughened clear glass with stepped bottom edge. Other. Guidance for specification option: Other infills may be incorporated such as photo voltaic panels, composite panels, and solar thermal panels. Manufacturer guidance Suitable to receive 6–32 mm double glazing and 50–56 mm triple glazing.
Construction	Single skin. Double skin. Triple skin.
Colour	Clear.
Integral kerb	Not applicable.
Operation	-
Type	Not required. Manual. Powered, electric.
Accessories	Not required. Operating pole. Operating cord.
Bottom overhang lap	58 mm (nominal). Manufacturer guidance Glazing bar.
PitchAngle	Guidance for specification option: 5–55°, subject to span and configuration. Consult manufacturer and insert requirements.
Air permeability	To BS EN 12207, Class 4.
Weathertightness	To BS EN 12208, E 1650.
Non-fragility rating	To CWCT TN66-67, Class 2 non-fragile.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Aluminium alloy, 6063-T6 to BS 1474. Glass Guidance for specification option: Thermal glazing.
Recyclability	Approximately 85% of the product is aluminium which 100% recyclable, remaining 15% is gaskets and thermal liners.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35 %
