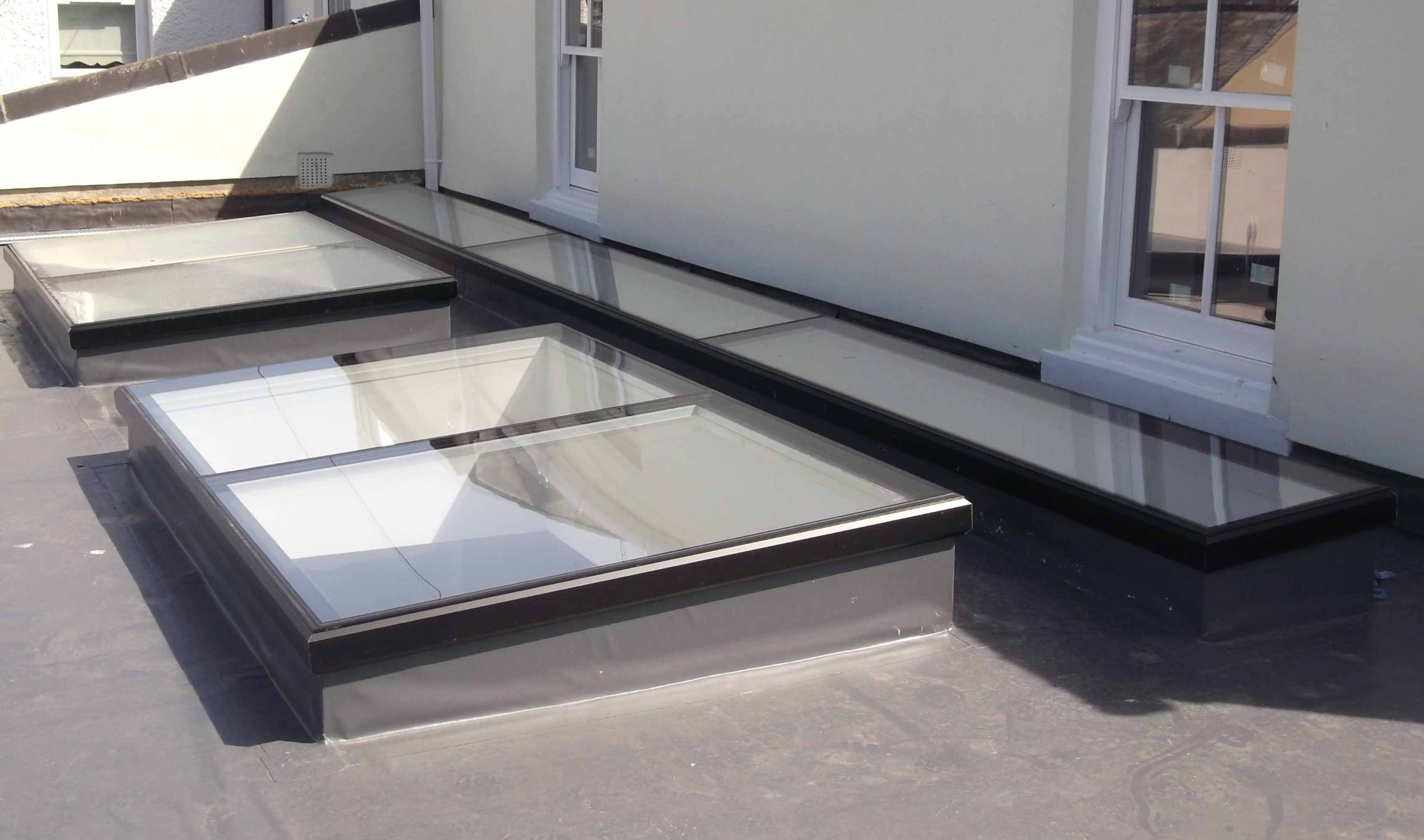

EcoGard Flat Glass Rooflights - Rooflight System

Name: EcoGard Flat Glass Rooflights - Rooflight System
Brand: Lonsdale Patent Glazing & Rooflights
SKU: ufEg2dHYgHbu78BukPjYF9

Verified by manufacturer 2 days ago

Lonsdale Patent Glazing & Rooflights

Flat rooflight available as fixed, continuous, multi-pane, opening or walk-on versions.

Jump to:

+44 (0)20 8801 4221 Website

Application

Flat rooflight suitable for flat and pitched roof applications on both domestic or commercial buildings.

Description

The EcoGard range of roof lights for flat roofs are manufactured to the highest standards and competitively priced. Careful attention to detail and selection of high performance sealants that last, ensure we can confidently offer a 10 year guarantee against leaks when installed within our recommendations. However, building owners can be confident EcoGard will give many years good service with a design life of 40 years or more and virtually zero life-cycle costs.

Features and benefits:

Quick and simple to install.
Thermally broken aluminium and 1.2 W/m²K centre pane U-value for heat retention.
Solar control glazing option available to reduce heat build-up and glare.
Easy-clean, low maintenance glass option to stay cleaner and brighter for longer.
Optional pre-fabricated insulated curb to save time on site.
Non-Fragile glazing specifications available.

General information

Color	White Guidance for specification option: Internal, RAL 9910M. Grey Guidance for specification option: External, RAL 7015M. Clear Guidance for specification option: Toughened safety glass. Other Guidance for specification option: BS or RAL colour, special order.
Finish	Powder-coated
Material	Aluminium Guidance for specification option: Thermally broken extruded aluminium alloy, 6063-T6. Glass Guidance for specification option: Toughened safety glass.
Shape	Square Hexagon Rectangle Triangle Octagon Diamond Parallelogram Pentagon Rhombus Trapezium Trapezoid Show more
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Guarantee against leaks.

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

SKU Code	ECO-FGR

Specification data - Framed rooflights

Classification data
Form	Flat.
Size	1000 x 1000 mm. 1000 x 1500 mm. 1000 x 2000 mm. Special order. Guidance for specification option: Insert requirements. Non-standard and custom made shapes and sizes are available, contact manufacturer for more information.
Product performance	-
Whole window U-value	1.2 W/m²·K. Guidance for specification option: Centre pane.
Frame	-
Material	Aluminium. Guidance for specification option: Thermally broken extruded aluminium alloy, 6063-T6. To BS EN 573-3, BS EN 755-2, BS EN 755-9 and BS EN 12020-1.
Finish	-
Coating	Powder coating to BS 6496.
Colour	RAL 7016M Grey (externally) and RAL 9010M (internally). Other. Guidance for specification option: RAL colours available to order, consult manufacturer and insert requirements.
Glazing or infill	-
Type	Clear toughened safety glass. Guidance for specification option: Standard. Non-fragile clear toughened and laminated safety glass. Solar control and low maintenance finish neutral toughened safety glass. Guidance for specification option: 60% Solar heat reflection and 37% light transmission. Walk-on glass.
Construction	Double skin. Guidance for specification option: As standard. Hermetically silicone edge sealed. Argon filled. 28 mm double glazed unit. Triple skin. Guidance for specification option: Optional.
Colour	Clear. Blue. Grey.
Coating	Not required. UV-protected.
Integral kerb	Not required. Insulated. Guidance for specification option: Optional pre-fabricated insulated kerb to save time on site. Prefabricated from marine ply and polyfoam rigid insulation to BS EN 13165. Incorporates a 5° fall over the shortest dimension and a recommended minimum of 150 mm high above roof finish.
Operation	-
Type	Not required. Manual. Guidance for specification option: Spindle operated, adjustable long arm pole. Powered, electric. Guidance for specification option: 230 V surface mounted motor(s).
Control	Not required. Switch. Thermostat and rain sensor.
Accessories	Not required. Operating pole. Guidance for specification option: For manual operation.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Thermally broken extruded aluminium alloy, 6063-T6. Glass Guidance for specification option: Toughened safety glass.
Recyclability	Approximately 85% of the product is aluminium which 100% recyclable, remaining 15% is gaskets and thermal liners.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35 %
Expected Life	40 year
