This product is no longer available

Description

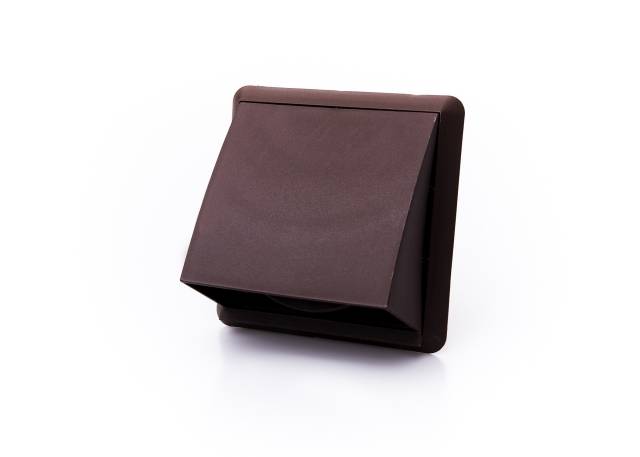

Plastic, external cowl with spigot for rigid pipe and flexible ducting.

Features:

  • Gravity flap opens when appliance is in operation.
  • Connects to Rigid Pipe RD4/RND and suits 100 mm diameter RytHose range (or use RD4HCF).
  • UV stabilized to slow down the effects of sunlight.
  • Part of Rytons 100 mm (110 x 54 mm) RytDuct® Range.
  • For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods.
  • For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour.
  • Suitable for working temperatures of -20 to +60ºC.

General information
Features

Gravity flap opens when appliance is in operation

Connects to Rigid Pipe RD4/RND and suits 100 mm diameter RytHose range (or use RD4HCF)

UV stabilized to slow down the effects of sunlight

Part of Rytons 100 mm (110 x 54 mm) RytDuct® Range

For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods

For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour

Suitable for working temperatures of -20 to +60ºC

Material

UV stabilized high quality plastic

Size

155 x 155 x 73 mm (includes 99.5 mm diameter male spigot)

Uniclass 2015 Ventilation gratings (Pr_30_59_96_93)
Specification data
Product Reference

RD4CGBR

Brown.

RD4CGBS

Buff/ Sand.

RD4CGTC

Terracotta.

RD4CGWH

White.

Colour

Brown

RD4CGBR

Buff/ Sand

RD4CGBS

Terracotta

RD4CGTC

White

RD4CGWH

Free area

7200 mm² (72 cm²)

Standard product features

Size:

155 x 155 x 73 mm (includes 99.5 mm diameter male spigot).

Material:

UV stabilized high quality plastic.
