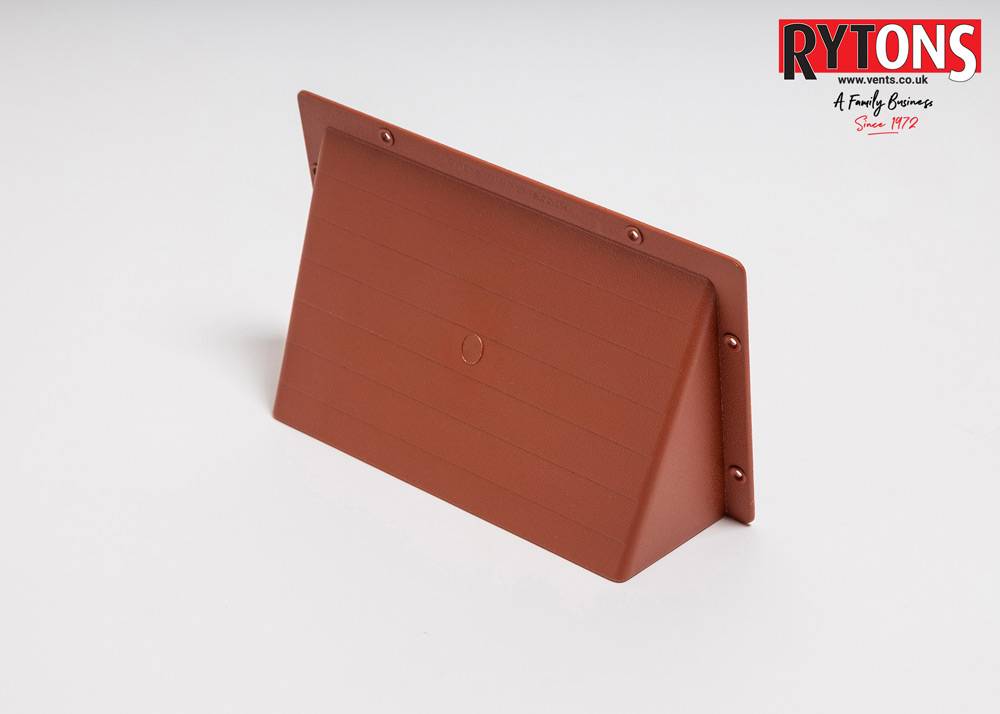

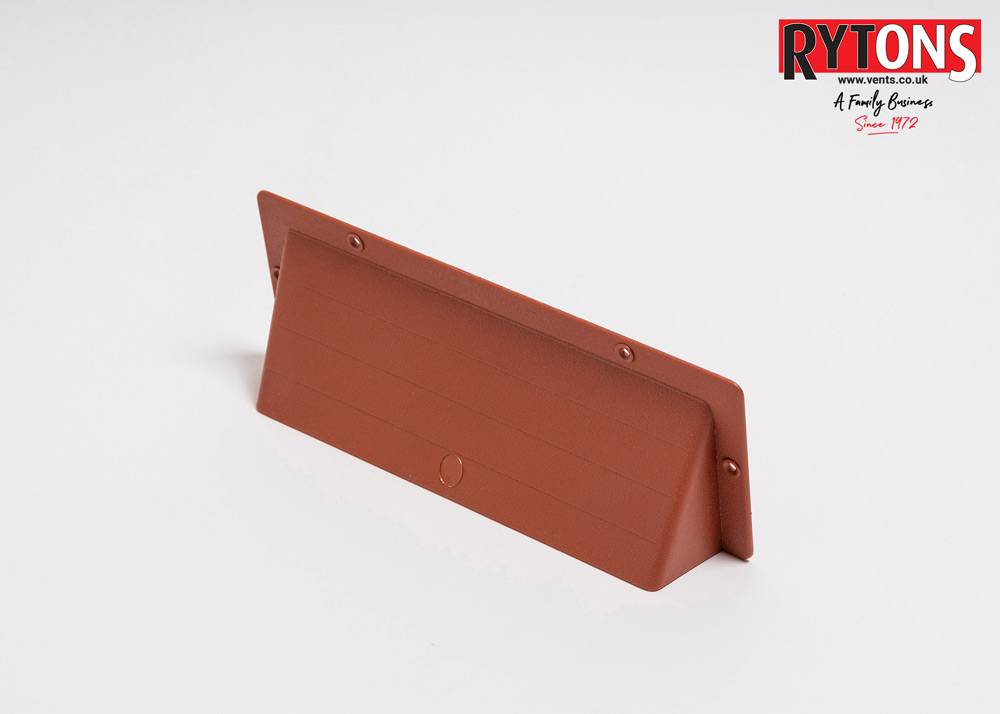

Rytons Cowl Range
Application

Suitable for external use to openings, air bricks, grilles and vents.

Description

Surface-mounted cover in a variety of sizes for openings, air bricks, grilles and vents.

Features and benefits:

  • Protects against excessive weather conditions.
  • Alleviates air blasts through the cavity.
  • Textured roughcast finish.
  • UV-stabilized to slow down the effects of sunlight.

Application:

Suitable for external use to openings, air bricks, grilles and vents.

General information

Material

UV-stabilized high-impact polystyrene

Uniclass 2015

Pr_30_59_96_93 Ventilation gratingsPrimary
Specification data - Ventilation gratings Enhanced data

Product Reference

ABC3 – Rytons 9×3 Cowl

ABC6 – Rytons 9×6 Cowl

ABC8 – Rytons 8½x8 AirCore® Cowl

ABC9 – Rytons 9×9 Cowl

Colour

ABC3 - Buff/ sand, Terracotta

ABC6 - Buff/ sand, Terracotta, White

ABC8 - Buff/ sand, Terracotta, White

ABC9 - Buff/ sand, Terracotta, White

Free area

ABC3 - 8,700 mm² (87 cm²) per unit.

ABC6 - 16,000 mm² (160 cm²) per unit.

ABC8 - 16,000 mm² (160 cm²) per unit.

ABC9 - 23,900 mm² (239 cm²) per unit.

Standard product features

Material:

UV-stabilized high-impact polystyrene.

Size: (l x h x d)

  • ABC3 - 255 x 96 x 44 mm – overall maximum length x height x depth.
  • ABC6 - 255 x 154 x 74 mm - overall maximum length x height x depth.
  • ABC8 - 217 x 210 x 93 mm - overall maximum length x height x depth.
  • ABC9 - 274 x 235 x 103 mm - overall maximum length x height x depth.

Country of origin:

United Kingdom.

Country of manufacture:

United Kingdom.
