Rytons A1® Fire-rated Straight Ducting Kit 204 x 60 mm with Single Air Brick

Name: Rytons A1® Fire-rated Straight Ducting Kit 204 x 60 mm with Single Air Brick
Brand: Rytons Building Products Ltd
SKU: o8jma89zEZjCNCVG6VyLWh

Verified by manufacturer 4 months ago

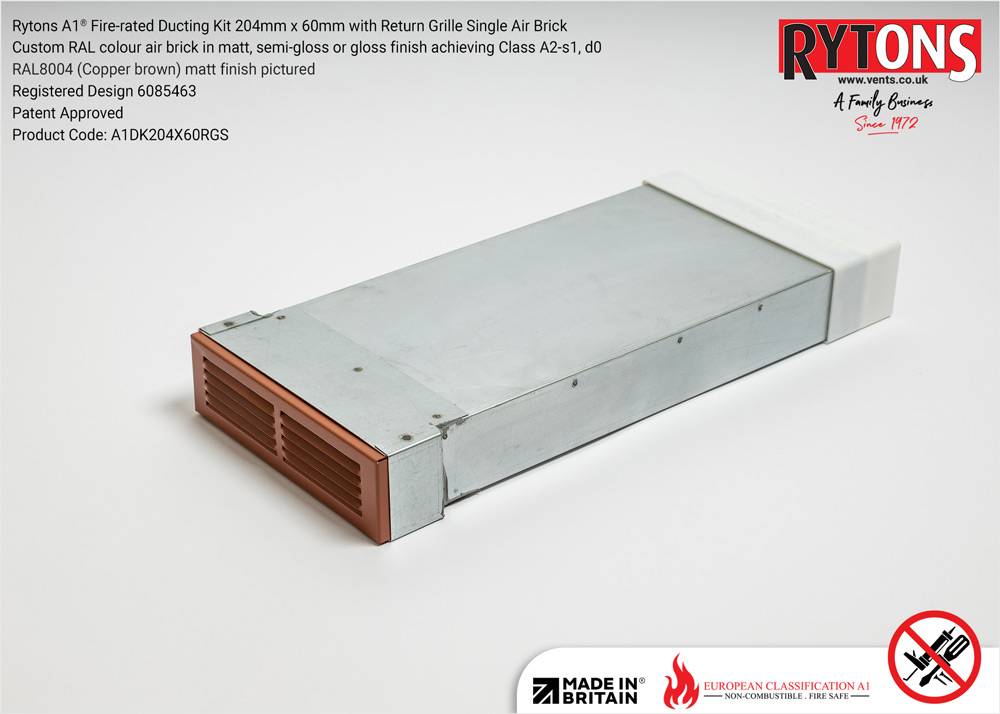

Rytons A1DK204X60RGS: Return Grille Air Brick

Rytons Building Products Ltd

Class A1 fire-rated, non-combustible, metal ducting kits for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects. Compatible with rectangular ducting 204 x 60 mm.

Jump to:

+44 (0)1536 511874 Website

Application

Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.

Description

A range of tailor-made Class A1 fire-rated straight ducting kits compatible with rectangular HVAC supply and extract ducting 204 x 60 mm.

Features and benefits:

Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.

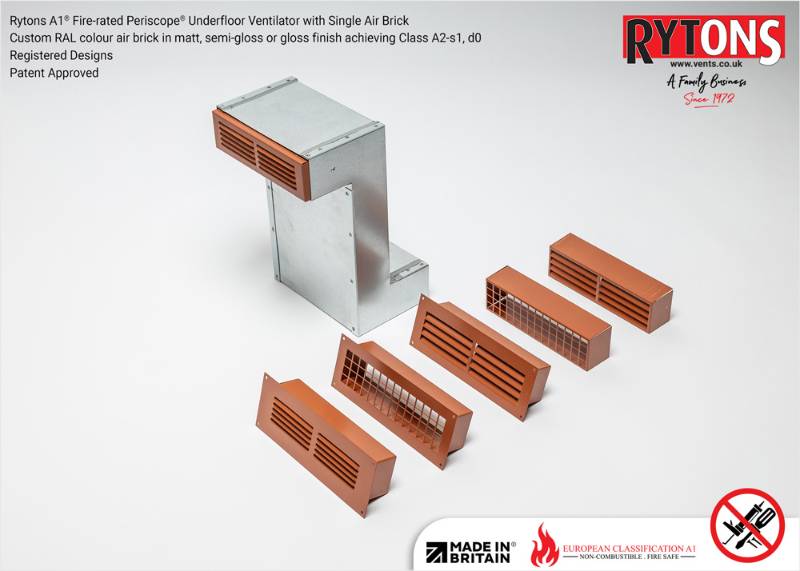

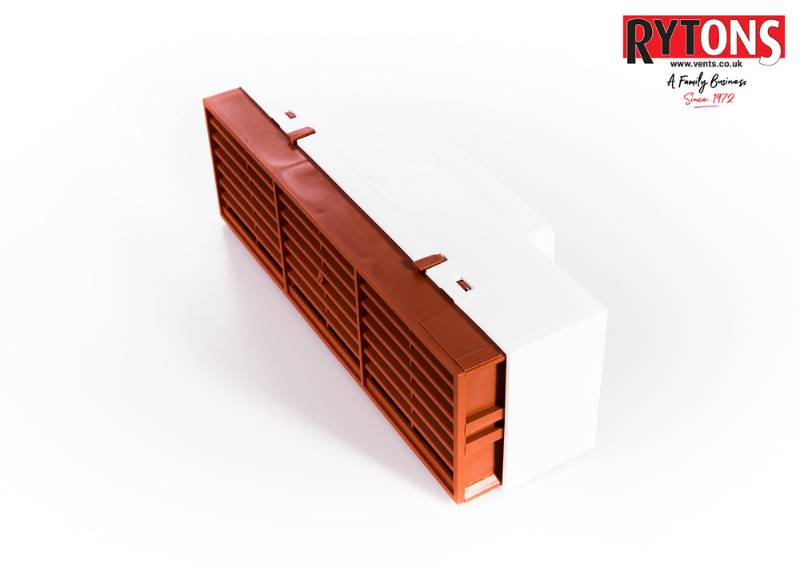

Three air brick styles. All air bricks offer low resistance and high airflows. For cladding, choose a flanged option to cover cut edges and maintain the aesthetic appearance.
Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.

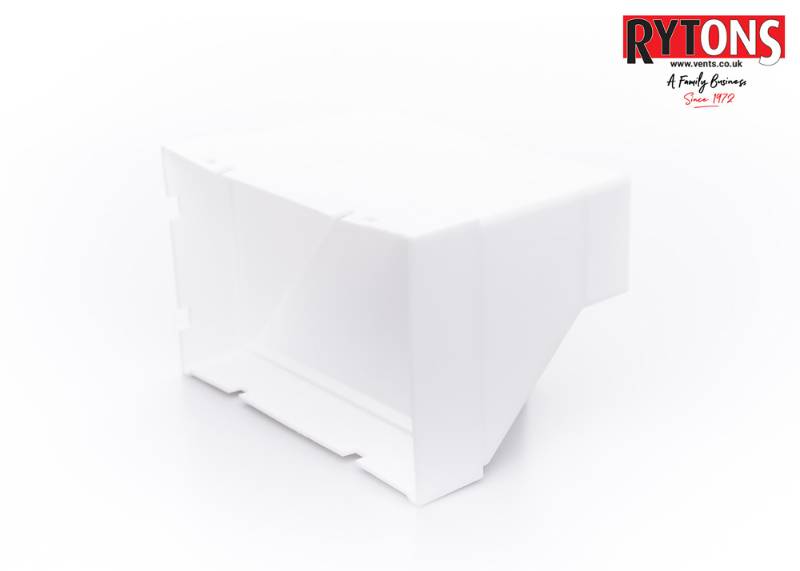

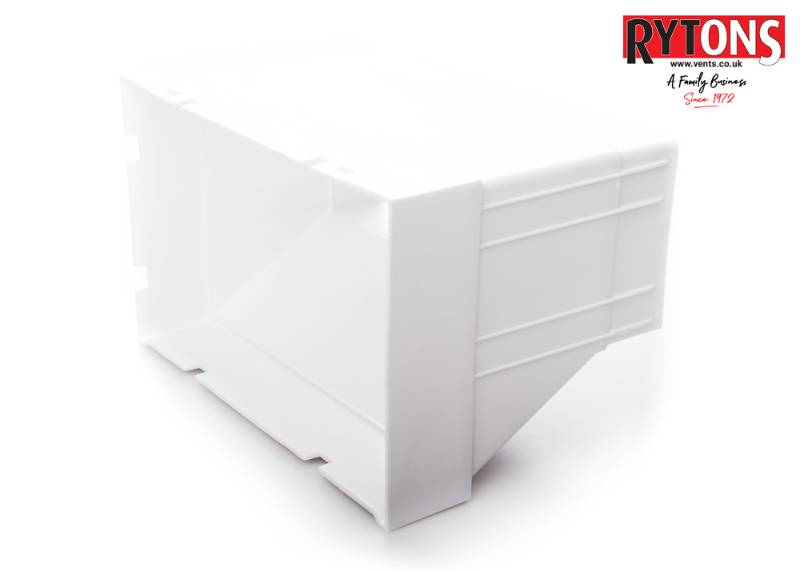

Made to custom length and includes a plastic duct connector. Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Supplied ready to install with no on-site assembly required.
Custom design option available.
Made in Britain.

General information

Color	Other
Finish	Matt Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Powder-coated
Material	Steel Guidance for specification option: Galvanized steel.
Shape	Rectangle Guidance for specification option: Compatible with rectangular HVAC and extract ducting 204 x 60 mm.
Length	Bespoke Guidance for specification option: Metal duct fitted with a plastic duct connector. Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Width	204 mm Guidance for specification option: Ducting
Height	60 mm Guidance for specification option: Ducting

Uniclass	Pr_35_90_50_03 AirbricksPrimary
CAWS	F30/160 Airbricks in external walling F30/15 Airbricks in external walling

Product range	Rytons Metal A1 Fire-rated Range

Specification data - Airbricks

Standard	Guidance for specification option: Class 1 without testing.
Work sizes	204 x 60 mm. Guidance for specification option: (w x h). To straight ducting. Length specified by customer, to include fitted plastic ducting connector – manufacturers' recommendation is for an additional 100 mm tolerance to the measurement from the outer leaf to the inner leaf to ensure the duct and connector finish within the inner leaf. Manufacturer guidance Custom sizing and bespoke design service available.
Material	Galvanized Steel. Guidance for specification option: 0.9 mm.

Free Area	7200 mm².
Integral accessories	15 mm flange and corner screw holes. Guidance for specification option: To all flanged air brick products.
Length	Guidance for specification option: Specified by customer, to include fitted plastic ducting connector – manufacturers' recommendation is for an additional 100 mm tolerance to the measurement from the outer leaf to the inner leaf to ensure the duct and connector finish within the inner leaf.
Surface finish	Matt. Guidance for specification option: Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss. Guidance for specification option: Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss. Guidance for specification option: Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.
Fire performance	Class A1. Manufacturer guidance Rytons A1® Fire-rated Ducting Kits 204 x 60 mm with Single Air Bricks are made from galvanized steel. Galvanized steel is considered fire class A1 without testing, as per European Commission paper 96/603/EC referred to in BS EN 13501-1:2018. The material remains robust at elevated temperatures and has a high melting point temperature of 1450–1520°C. Classification: A1. Definition: Non-combustible. Description: No contribution to fire.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel Guidance for specification option: Galvanized steel.
Recyclability	Recyclable
