Rytons A1® Fire-rated Soldier Ducting Kit 220 x 90 mm with Triple Soldier Air Brick
Verified by manufacturer 3 months ago

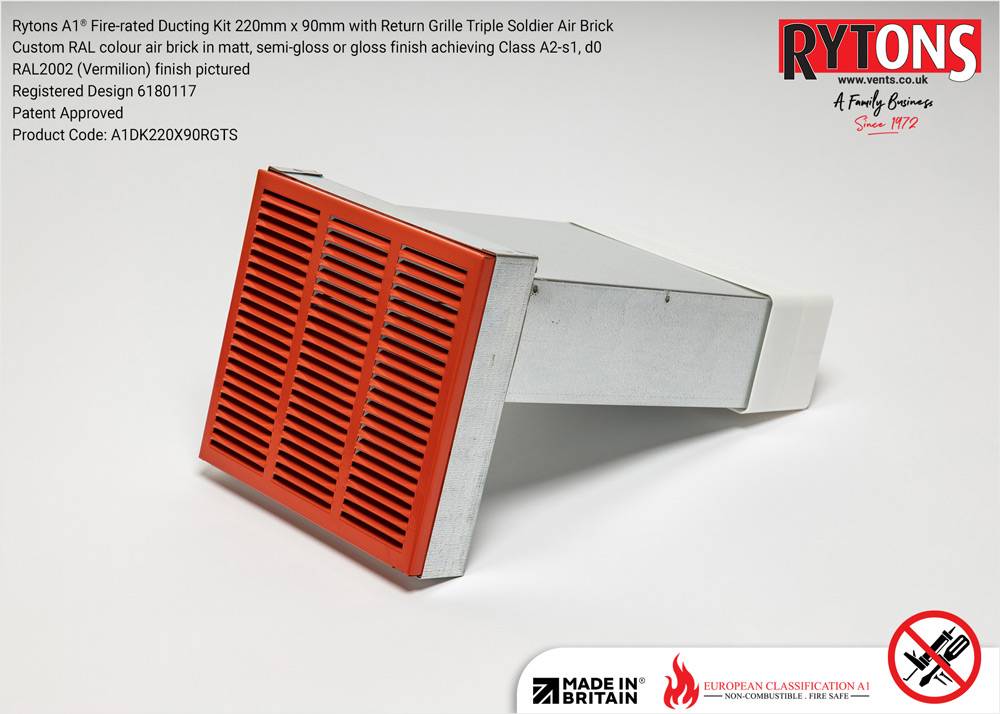

A1DK220X90RGTS - Fire-rated Ducting Kit with Return Grille Triple Soldier Air Brick
A1DK220X90RGTS - Fire-rated Ducting Kit with Return Grille Triple Soldier Air Brick
Class A1 fire-rated, non-combustible, metal duct kits with soldier air bricks, for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects. Compatible with 220 x 90 mm duct.
Application
A range of tailor-made Class A1 fire-rated ducting kits, with soldier style air brick, compatible with rectangular HVAC supply and extract ducting 220 x 90 mm.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Allow ducting to pass through decorative soldier brickwork whilst maintaining the aesthetic appearance.

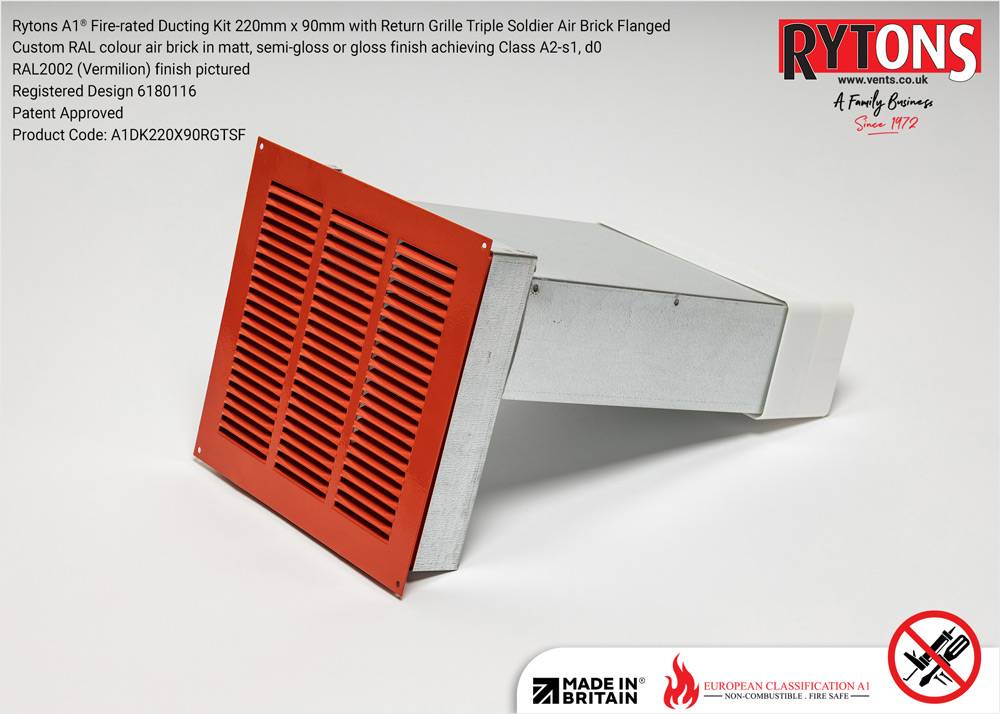

- Air brick offers low resistance and high airflow. For cladding, choose the flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Made to custom length and includes a plastic duct connector. Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
- Supplied ready to install with no on-site assembly required.
- Custom design option available.
- Made in Britain.
Description
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
General information
Color | Other |
Finish | Matt Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Powder-coated |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Shape | Rectangle Guidance for specification option: Compatible with rectangular HVAC and extract ducting 220 x 90 mm. |
Length | Bespoke Guidance for specification option: Metal duct fitted with a plastic duct connector. Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf. |
Width | 220 mm Guidance for specification option: Ducting. |
Height | 90 mm Guidance for specification option: Ducting. |
Uniclass | |
CAWS | F30/15 Airbricks in external walling F30/160 Airbricks in external walling |
Product range |
Specification data - Airbricks
Work sizes | 220 x 90 mm. |
Material | Galvanized steel. |
Colour | RAL colour.Guidance for specification option:
Manufacturer guidanceAir brick colour. |
Overall length | Custom. Guidance for specification option:
|
Free area | 34320 mm². Guidance for specification option: Over 90% of the duct. Manufacturer guidanceGrille free area. |
Sealant | Everbuild Fire Mate. Guidance for specification option: Intumescent and acoustic sealant used on all gaps. |
Fire performance | Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Recyclability | Recyclable |
