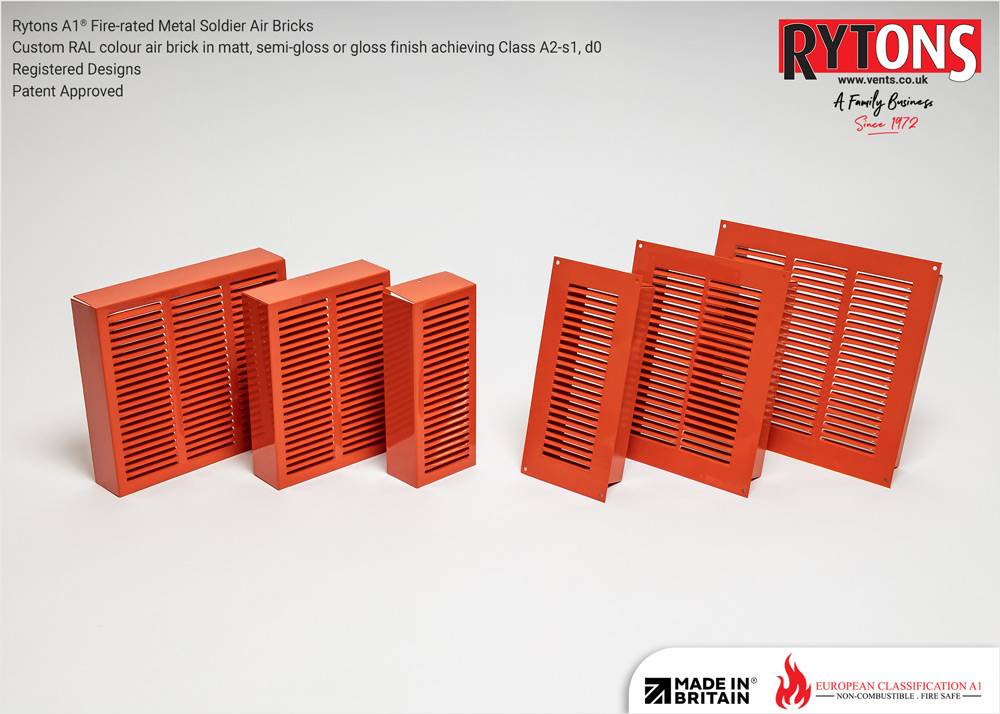

Rytons A1® Fire-rated Metal Soldier Air Bricks
Verified by manufacturer 3 months ago

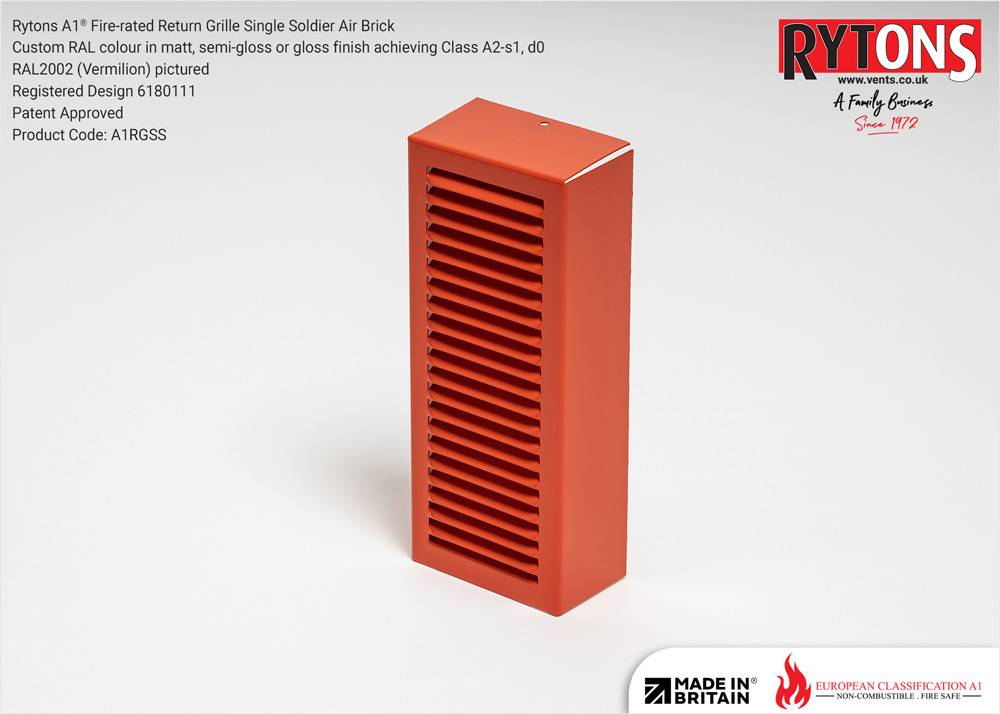

A1RGSS - Return Grille Single Soldier Air Brick
A1RGSS - Return Grille Single Soldier Air Brick
Class A1 fire-rated, non-combustible, metal soldier style air bricks for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects.
Application
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
Description
A range of tailor-made Class A1 fire-rated metal soldier air bricks.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Allow ventilation to pass through decorative soldier brickwork.
- Rytons Return Grille style provides high airflows across single, double and triple sizes. For cladding, choose the flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Sizing promotes easy installation and a neat appearance using standard mortar joints.
- Discreet drainage holes provide built-in weather protection.
- Made in Britain.
General information
Color | Other Guidance for specification option: RAL colour. |
Finish | Matt Guidance for specification option: Custom powder coating from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss Guidance for specification option: Custom powder coating from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss Guidance for specification option: Custom powder coating from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Powder-coated |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Shape | Rectangle |
Width | 50 mm |
Height | 215 mm |
Uniclass | |
CAWS | F30/160 Airbricks in external walling F30/15 Airbricks in external walling |
Product range |
Specification data - Airbricks
Class | 1. |
Apertures | Louvre. |
Work sizes | 85 x 215 x 50 mm.Manufacturer guidanceNominal size (length x height x depth). |
Material | Galvanized steel.Guidance for specification option: 0.9 mm. |
Colour | RAL colour.Guidance for specification option:
|
Free area | 11440 mm². Manufacturer guidancePer unit. |
Fire resistance | Class A1. Guidance for specification option: Class A1 fire-rated 0.9 mm galvanised steel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Recyclability | Recyclable |
