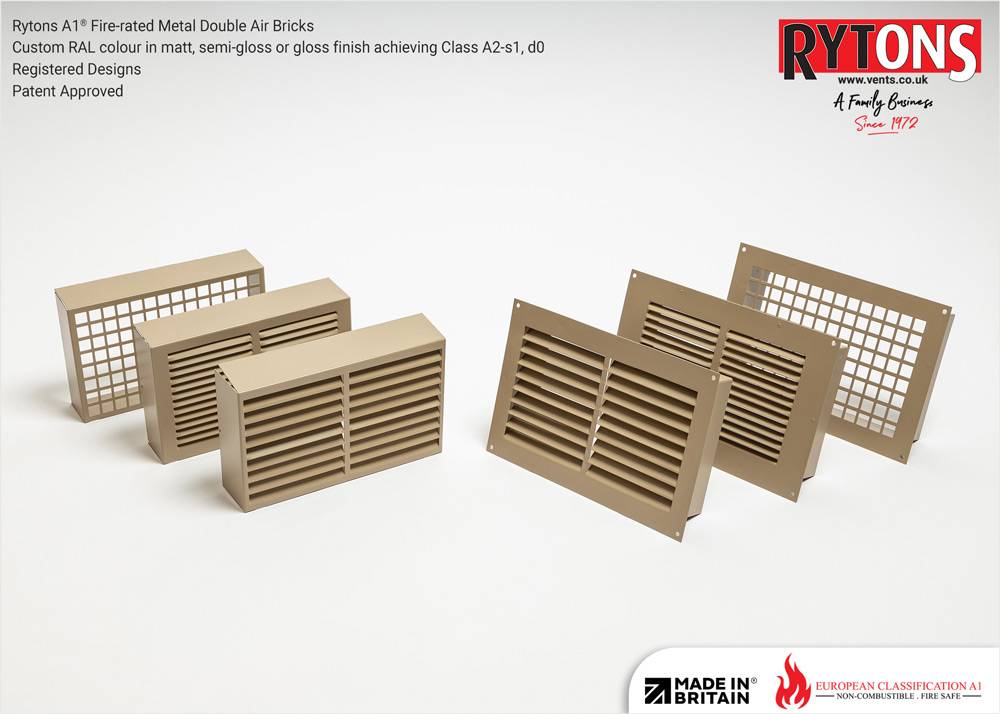

Rytons A1® Fire-rated Metal Double Air Bricks
Verified by manufacturer 2 months ago

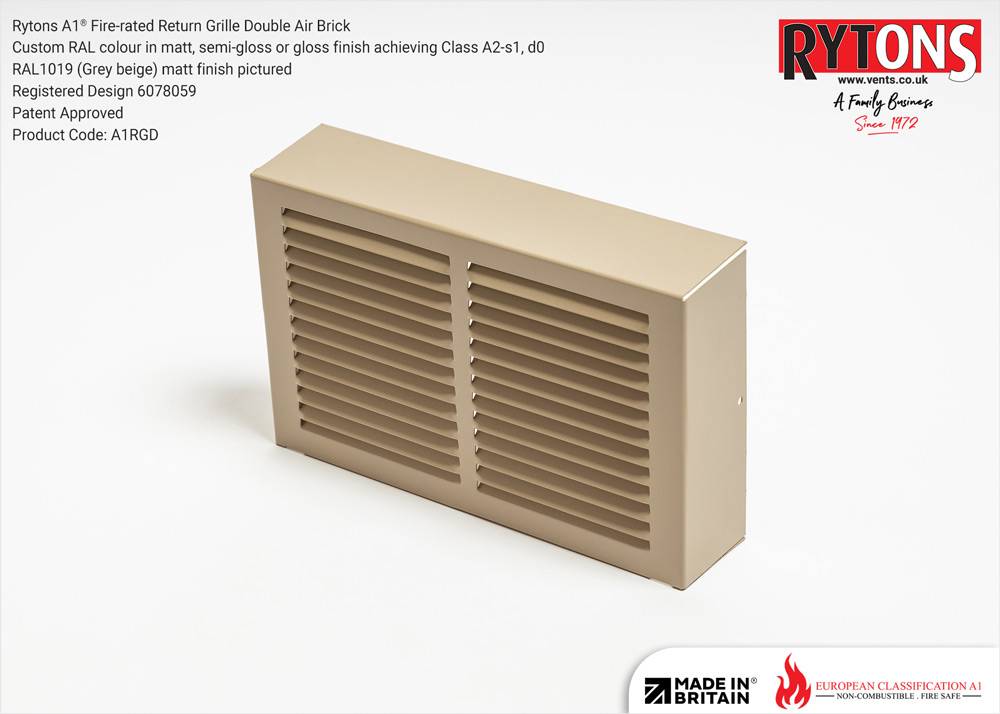

A1RGD - Return Grille Double Air Brick
A1RGD - Return Grille Double Air Brick
Class A1 fire-rated, non-combustible, metal air bricks for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects.
Application
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
Description
A range of tailor-made Class A1 fire-rated metal double air bricks.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Three air brick styles available offering low resistance and high airflows. For cladding, choose a flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Brick size (rather than duct size) for easy installation and a neat appearance using standard mortar joints.
- Discreet drainage holes provide built-in weather protection.
- Made in Britain.
General information
Color | Other Guidance for specification option: RAL colour. |
Finish | Matt Guidance for specification option: Custom powder coating from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss Guidance for specification option: Custom powder coating from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss Guidance for specification option: Custom powder coating from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Shape | Rectangle |
Length | 215 mm |
Width | 50 mm |
Height | 135 mm Guidance for specification option: 15 mm flange with corner screw holes. To all flanged air brick products. |
Uniclass | |
CAWS | F30/160 Airbricks in external walling F30/15 Airbricks in external walling |
SKU Code | A1RGD, A1RGDF, A1SQD, A1SQDF, A1FRD, A1FRDF |
Product range |
Specification data - Airbricks
Class | 1. |
Apertures | Louvre. |
Work sizes | 215 x 135 x 50 mm. Manufacturer guidanceNominal size (length x height x depth). |
Material | Galvanized steel. Guidance for specification option: 0.9 mm. |
Colour | RAL colour. Guidance for specification option:
|
Free area | 18720 mm². Manufacturer guidancePer unit. |
Fire resistance | Class A1. Guidance for specification option: Class A1 fire-rated 0.9 mm galvanised steel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Recyclability | Recyclable |
