Rytons A1® Fire-rated Compartment Ducts

Name: Rytons A1® Fire-rated Compartment Ducts
Brand: Rytons Building Products Ltd
SKU: ebL4ELbTNYKsSkSv2Do19j

Verified by manufacturer 4 months ago

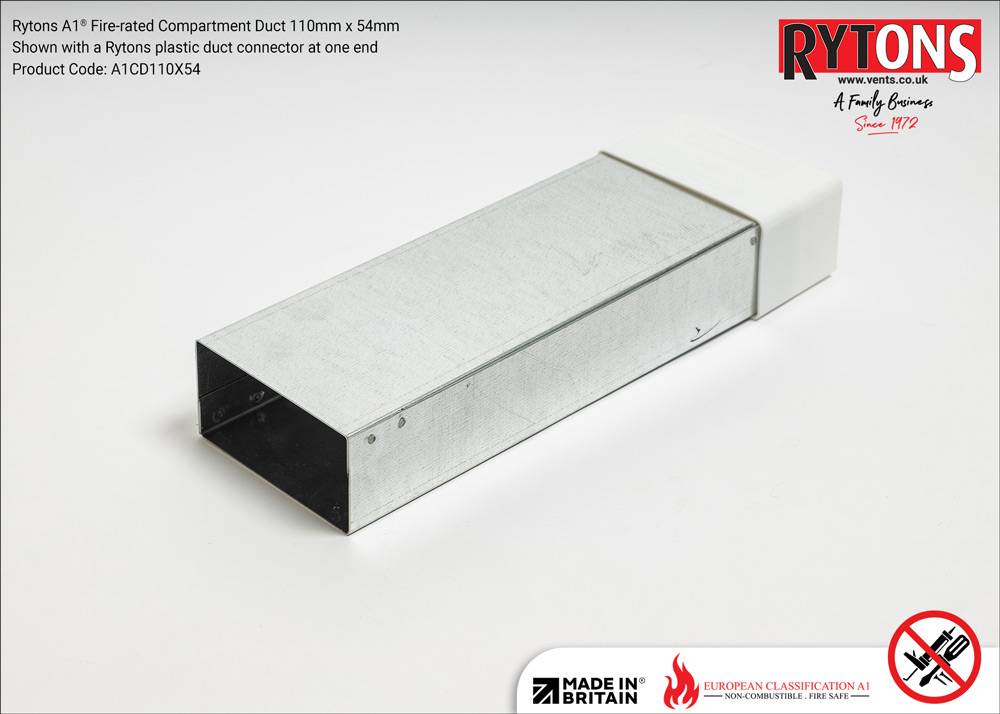

A1CD110X54 - Compartment Duct 110 x 54 mm

Rytons Building Products Ltd

Class A1 fire-rated, non-combustible, metal round and rectangular compartment ducts for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects.

Jump to:

+44 (0)1536 511874 Website

Application

Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.

Description

A range of tailor-made Class A1 fire-rated compartment ducts.

Features and benefits:

Compliant with regulations for the requirement of fire resisting ducts passing through fire-separating elements of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
Available in round and rectangular sizes for attachment to HVAC supply and extract ducting 100 mm diameter, 125 mm diameter, 150 mm diameter, 110 x 54 mm, 204 x 60 mm and 220 x 90 mm.
May be supplied with or without connector(s) attached.
Custom design option available.
Made in Britain.

General information

Material	Steel Guidance for specification option: Galvanized steel. 0.9 mm.
Shape	Rectangle Circle
Length	Bespoke
Width	110 mm 204 mm 220 mm 100 mm 125 mm 150 mm Show more
Height	54 mm 60 mm 90 mm 100 mm 125 mm 150 mm Show more

Uniclass	Pr_30_59_96_92 Ventilation ductsPrimary
CAWS	F30/171 Ventilation ducts in external walling F30/17 Ventilation ducts in external walling

Product range	Rytons Metal A1 Fire-rated Range

Specification data - Ventilation ducts

Material	Galvanized steel. Guidance for specification option: Class A1 fire-rated. 0.9 mm.

Dimensions	110 x 54 mm.
Overall length	Custom - without connectors. Guidance for specification option: Insert requirements. Custom - one connector at one end. Guidance for specification option: Rytons recommend adding 100 mm to the compartment measurement to ensure the connectors finish outside the void. Insert requirements. Custom - connector at each end. Guidance for specification option: Rytons recommend adding 200 mm to the compartment measurement to ensure the connectors finish outside the void. Insert requirements.
Sealant	Everbuild Fire Mate. Guidance for specification option: Intumescent and acoustic sealant used on all gaps.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel Guidance for specification option: Galvanized steel. 0.9 mm.
Recyclability	Recyclable
