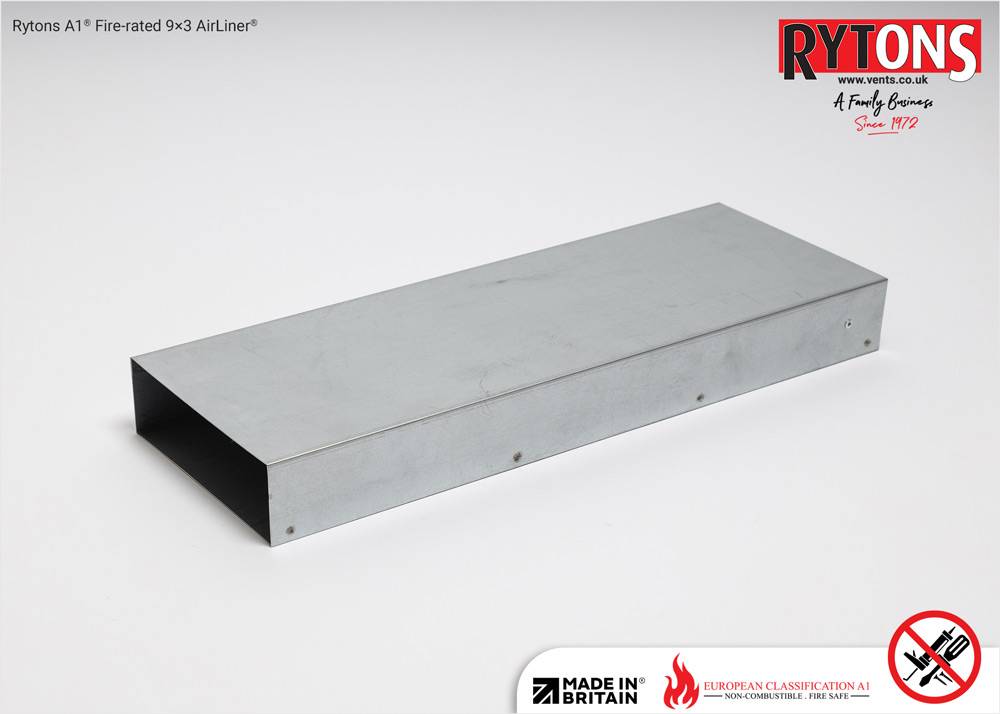

Rytons A1® Fire-rated 9 × 3 AirLiner®
Verified by manufacturer 4 months ago

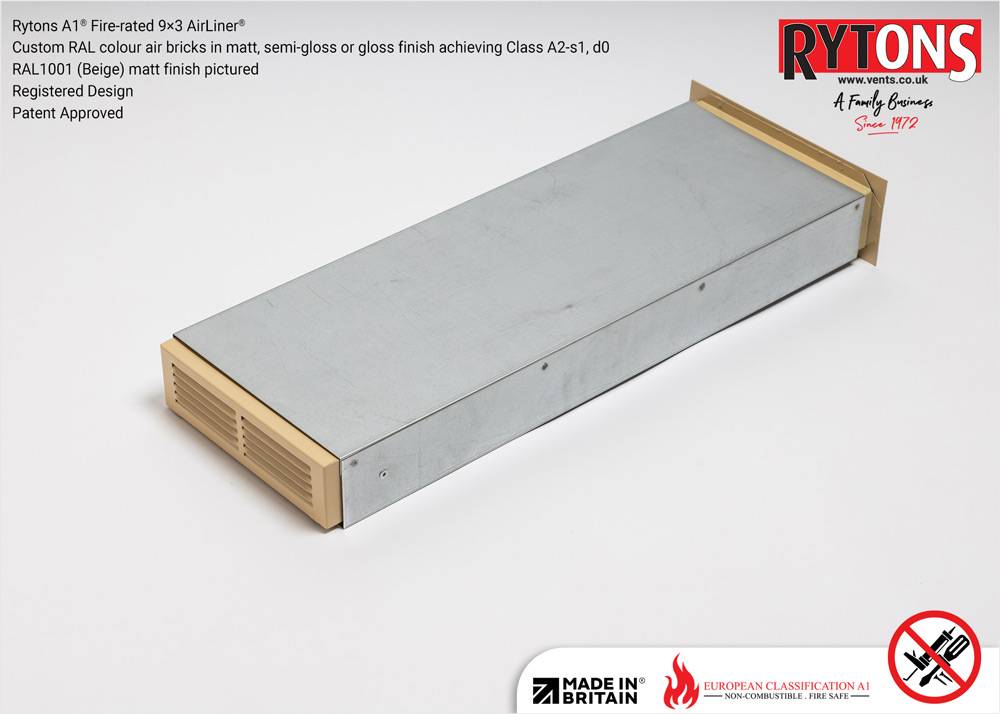

With Return Grille Double Air Brick (A1RGS)
With Return Grille Double Air Brick (A1RGS)
Class A1 fire-rated, non-combustible, metal 9x9 AirLiner® cross-cavity sleeve with a choice of air brick grille for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects.
Application
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
Description
A tailor-made Class A1 fire-rated cross-cavity sleeve.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Available with or without a Rytons A1® Fire-rated Metal Single Air Brick at one end or both ends.
- Three air brick styles available, all offering low resistance and high airflows. For cladding, choose a flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Made to custom length.
- Supplied ready to install with no on-site assembly required.
- Custom design option available.
- Made in Britain.
General information
Finish | Matt Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss Guidance for specification option: Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Shape | Rectangle |
Length | Bespoke |
Width | 220 mm |
Height | 66 mm |
Uniclass | |
CAWS | F30/160 Airbricks in external walling F30/15 Airbricks in external walling U90/360 Air transfer grilles |
Product range |
Specification data - Airbricks
Standard | Guidance for specification option: Class 1 without testing. |
Work sizes | 220 x 66 mm. |
Material | Galvanized steel.Guidance for specification option: 0.9 mm. |
Free Area | 7200 mm². |
Integral accessories | 15 mm flange and corner screw holes. Guidance for specification option: To all flanged air brick products. |
Length | Guidance for specification option: Specified by customer. |
Type: | A1AL93RGS. A1AL93RGSF. A1AL93SQS. A1AL93SQSF. A1AL93FRS. |
Surface finish | Matt. Guidance for specification option: Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Semi-gloss. Guidance for specification option: Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. Gloss. Guidance for specification option: Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available. |
Fire performance | Class A1. Guidance for specification option: Made from galvanized steel. Galvanized steel is considered fire class A1 without testing, as per European Commission paper 96/603/EC referred to in BS EN 13501-1:2018. The material remains robust at elevated temperatures and has a high melting point temperature of 1450–1520°C. Classification: A1. Definition: Non-combustible. Description: No contribution to fire. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Galvanized steel. 0.9 mm. |
Recyclability | Recyclable |
