Rytons 9 x 9 Ventilation Set with Hit & Miss Ventilator Range

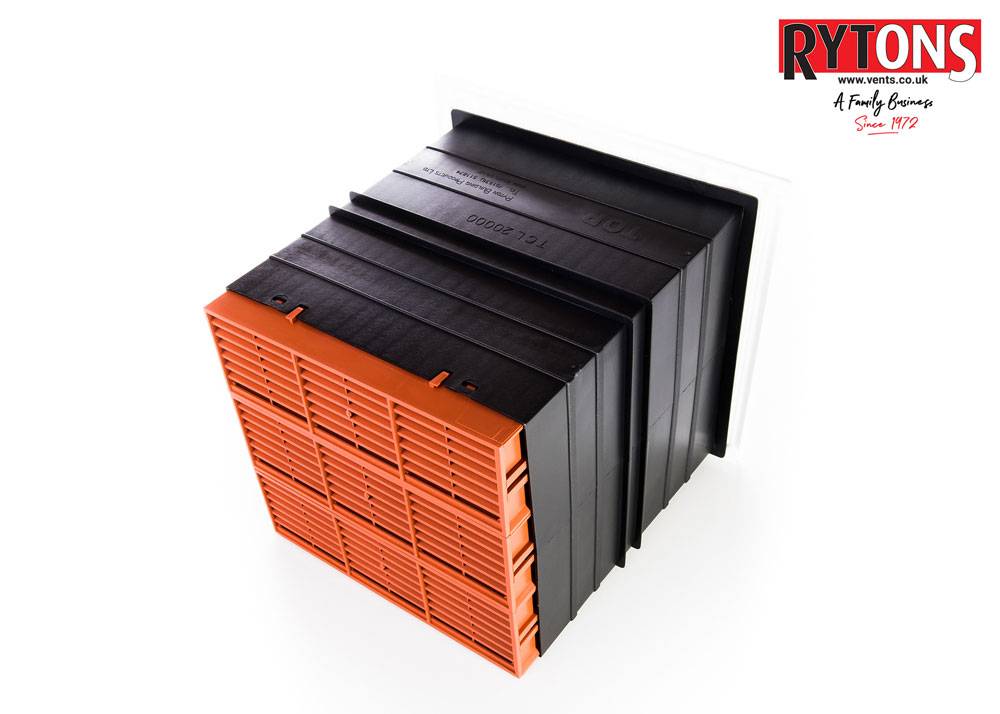

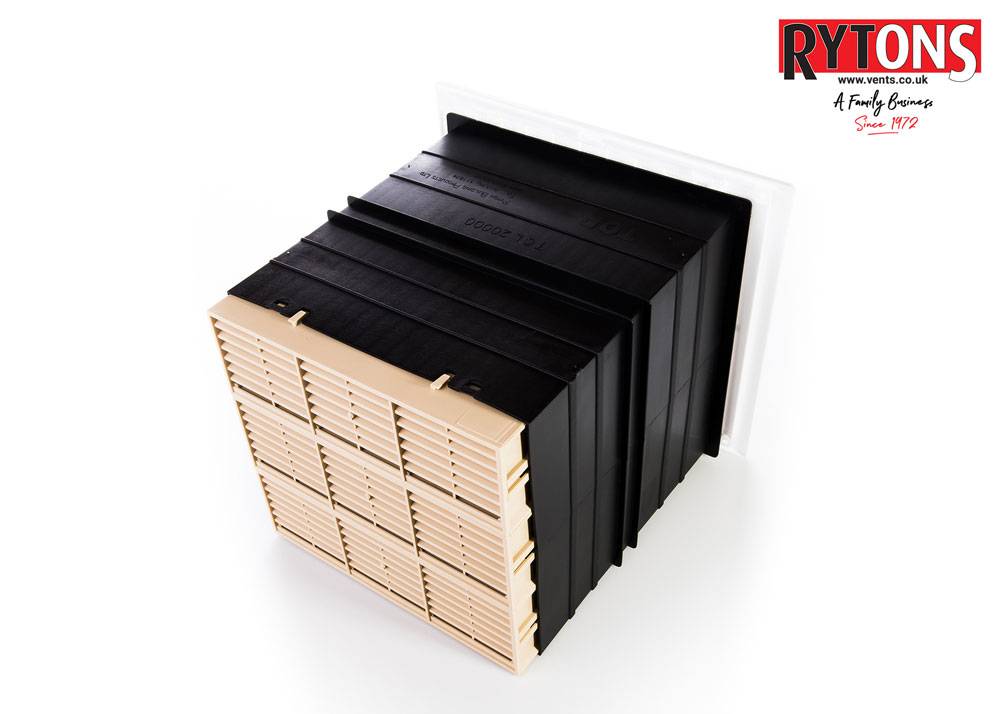

Name: Rytons 9 x 9 Ventilation Set with Hit & Miss Ventilator Range
Brand: Rytons Building Products Ltd
SKU: 7mUFqwyeRnr2kU9jr9t6yB

Verified by manufacturer 3 months ago

TC20HMBB

Plastic telescopic cavity liner set.

Jump to:

Application

For background room ventilation.
As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.

Plastic, telescopic cavity liner set, compliant with BS 5250.

Features and benefits:

Telescopic cavity liner contains a system of internal baffles to reduce light and draughts.
Internal hit and miss grille manually adjusted with an easy sliding action, giving control over the amount of ventilation let into the room.
External water baffles prevent transfer of water across the cavity.
Air brick and hit and miss grille UV stabilized to slow down the effects of sunlight.
Cowled option available to protect against excessive weather conditions and alleviates air blasts through the cavity.
BRE verified equivalent area.

Components:

Color	Black Brown Cream Grey Orange White Show more
Material	Plastic Guidance for specification option: Cowl: UV stabilised high impact polystyrene. Multifix® Air Brick: U.V. stabilised polypropylene. Telescopic liner: Polypropylene. Hit & Miss Ventilator: U.V. stabilised high impact polystyrene.
Size	220 x 207 mm Guidance for specification option: AirLiner® with Multifix® Air Brick: (w x h). Extends from 250–404 mm L. 271 x 247 mm Guidance for specification option: Hit & Miss Grille: (l x h). 274 x 235 x 103 mm Guidance for specification option: Cowl: (l x h x d).

Uniclass	Pr_30_59_96_92 Ventilation ductsPrimary
CAWS	F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/340 Through wall ventilator ducts U90/340 Through wall ventilator ducts

Product range	Rytons Ventilation Sets with Hit and Miss Ventilators

Material	Plastics. Guidance for specification option: Cowl: UV stabilised high impact polystyrene. Multifix® Air Brick: U.V. stabilised polypropylene. Telescopic liner: Polypropylene. Hit & Miss Ventilator: U.V. stabilised high impact polystyrene.
