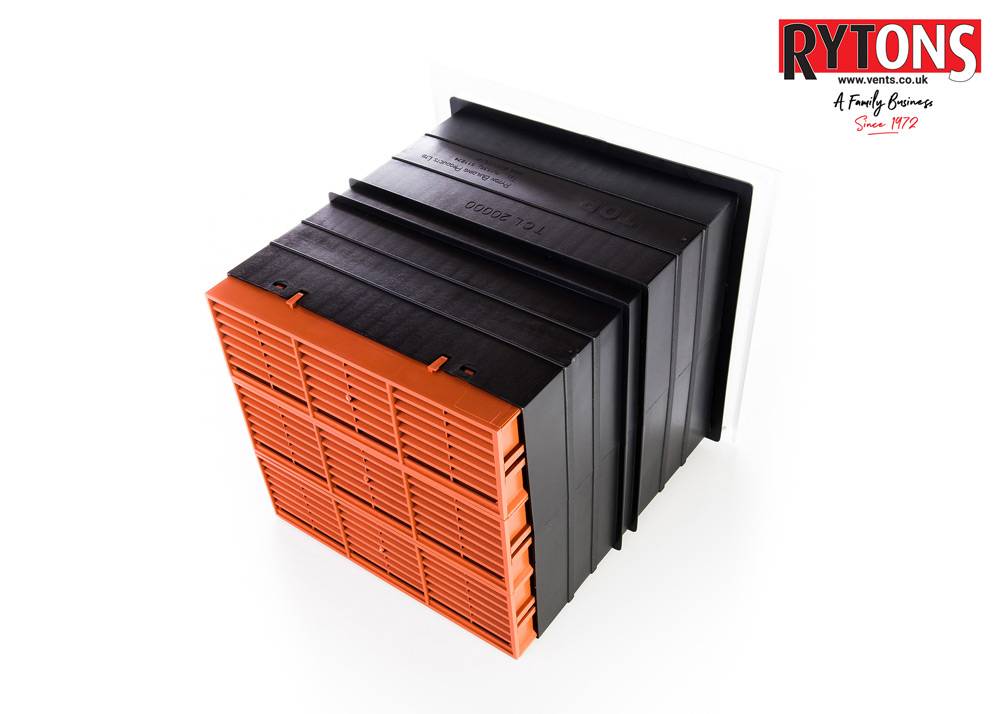

Rytons 9 x 9 Acoustic AirLiner® Set with Flush Louvre Ventilator Range
Verified by manufacturer 3 months ago
TAL9SETBB
TAL9SETBB
Plastic telescopic acoustic cavity liner set.
Application
For ventilating boilers, stoves and fires, HETAS approved for use with solid fuel appliances.
Description
Plastic, telescopic acoustic cavity liner set, compliant with BS 5440-2. A cowled option is available.
Features and benefits:
- Telescopic cavity liner contains a system of internal baffles to reduce light and draughts.
- Reduces sound by 38 dB for a more peaceful environment.
- Finished with a fixed open louvre ventilator internally.
- External water baffles prevent transfer of water across the cavity.
- Air brick and louvre grille UV stabilized to slow down the effects of sunlight.
- Cowled option available to protect against excessive weather conditions and alleviates air blasts through the cavity.
- BRE verified equivalent area.
Components:
- Multifix® Air Brick.
- Acoustic AirLiner®.
- Louvre Grille.
- Cowl.
General information
Color | Black Brown Cream Grey Orange |
Material | Plastic Guidance for specification option:
|
Size | 220 x 207 mm Guidance for specification option: Acoustic AirLiner® with Multifix® Air Brick: (w x h). Extends from 250–404 mm L. 271 x 247 mm Guidance for specification option: Louvre Grille: (l x h). 274 x 235 x 103 mm Guidance for specification option: Cowl: (l x h x d). |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/310 Ventilators for heating appliances U90/310 Ventilators for heating appliances |
Product range |
Specification data - Ventilation ducts
Material | Plastics.Guidance for specification option:
|
Air bricks | Blue/ Black. |
Equivalent area | 13 100 mm². |
