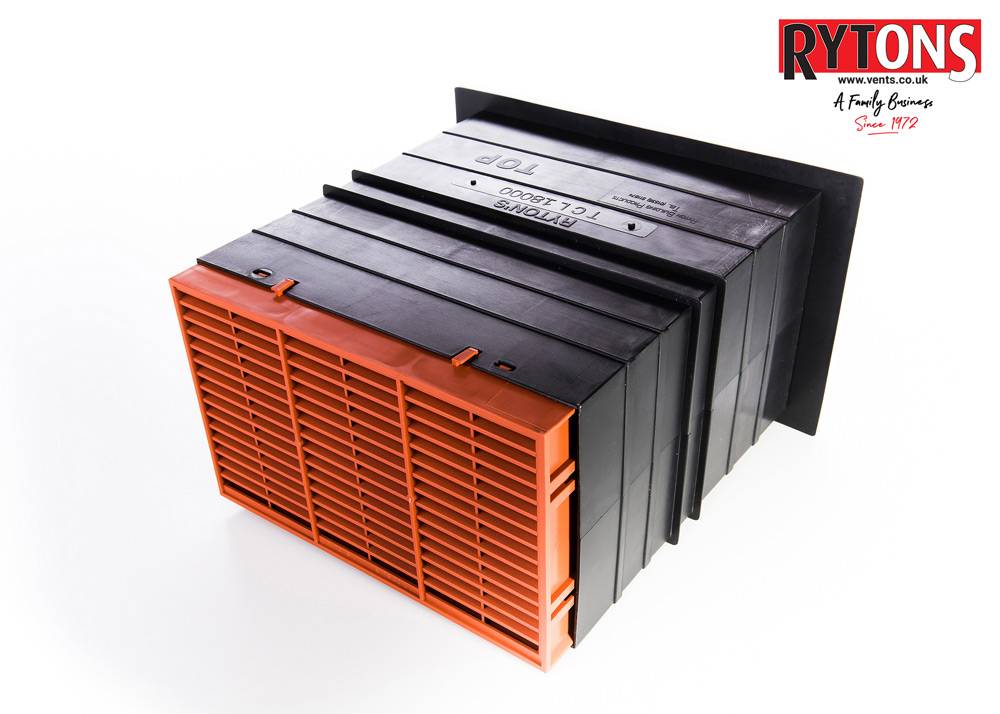

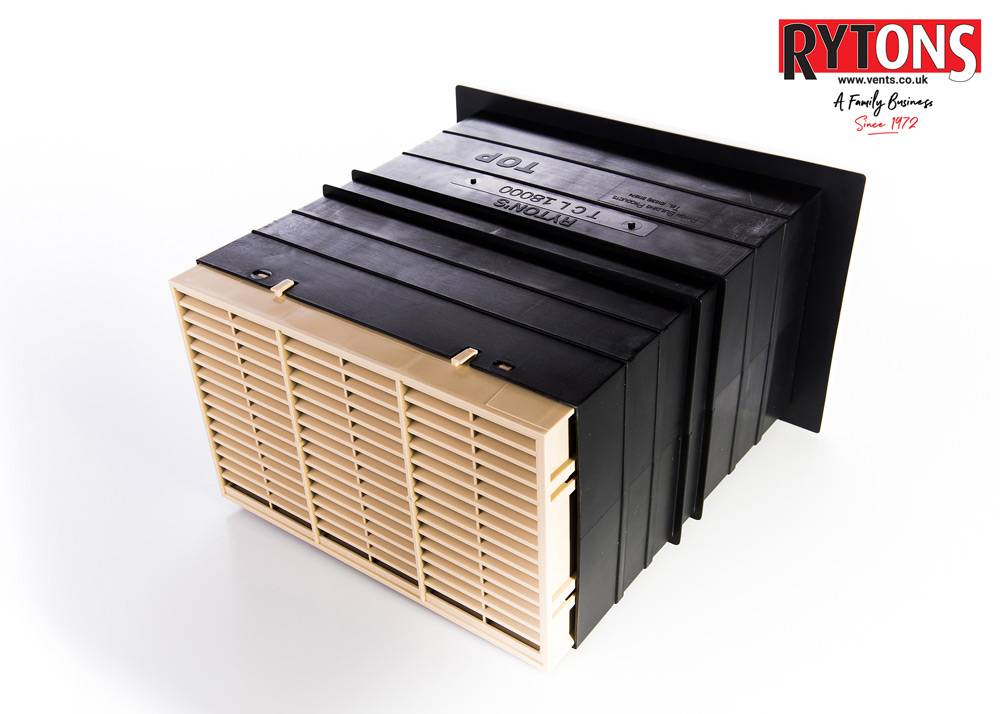

Rytons 9 x 6 Acoustic AirLiner® Set with Flush Louvre Ventilator Range

Verified by manufacturer 2 months ago

TALSETBB

Rytons Building Products Ltd Variant:

Plastic telescopic acoustic cavity liner set.

Jump to:
+44 (0)1536 511874 Website

Application

  • For ventilating boilers, stoves and fires, HETAS approved for use with solid fuel appliances.
  • As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.

Description

Plastic, telescopic acoustic cavity liner set, compliant with BS 5440-2. A cowled option is available.


Features and benefits:

  • Telescopic cavity liner contains a system of internal baffles to reduce light and draughts.
  • Reduces sound by 39 dB for a more peaceful environment.
  • Finished with a fixed open flush fitting louvre ventilator internally.
  • External water baffles prevent transfer of water across the cavity.
  • Air brick and louvre grille UV stabilized to slow down the effects of sunlight.
  • Cowled option available to protect against excessive weather conditions and alleviates air blasts through the cavity.
  • BRE verified equivalent area.


Components:

  • Multifix® Air Brick.
  • Acoustic AirLiner®.
  • Louvre Grille.
  • Cowl.

General information

Color

Material

Plastic

Guidance for specification option:

  • Cowl: UV stabilised high impact polystyrene.
  • Multifix® Air Brick: U.V. stabilised polypropylene.
  • Telescopic liner: Polypropylene.
  • Louvre Ventilator: U.V. stabilised high impact polystyrene.

Size

220 x 140 mm

Guidance for specification option:

Acoustic AirLiner® with Multifix® Air Brick: (w x h). Extends from 250–404 mm L.

264 x 166 mm

Guidance for specification option:

Louvre Grille: (l x h).

255 x 154 x 74 mm

Guidance for specification option:

Cowl: (l x h x d).

Uniclass

Pr_30_59_96_92 Ventilation ductsPrimary

CAWS

F30/17 Ventilation ducts in external walling

F30/171 Ventilation ducts in external walling

U90/310 Ventilators for heating appliances

U90/310 Ventilators for heating appliances

Product range

Rytons Ventilation Sets with Louvre Ventilators

Specification data - Ventilation ducts

Material

Plastics.

Guidance for specification option:

  • Cowl: UV stabilised high impact polystyrene.
  • Multifix® Air Brick: U.V. stabilised polypropylene.
  • Telescopic liner: Polypropylene.
  • Louvre Ventilator: U.V. stabilised high impact polystyrene.


Equivalent area

6300 mm².

Air brick

Blue/ Black.
