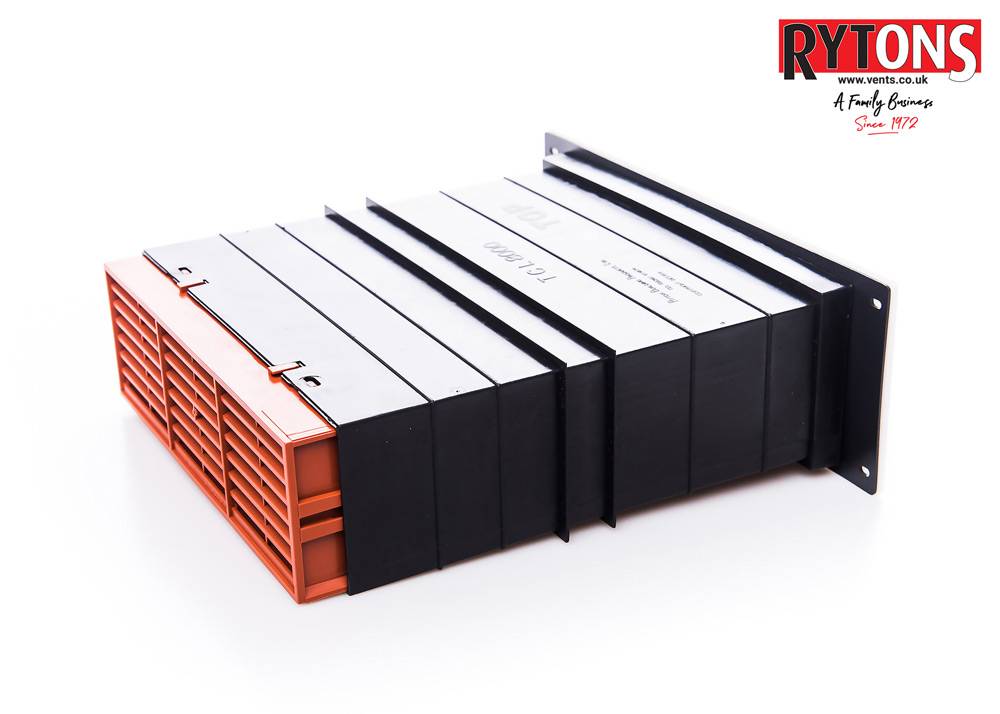

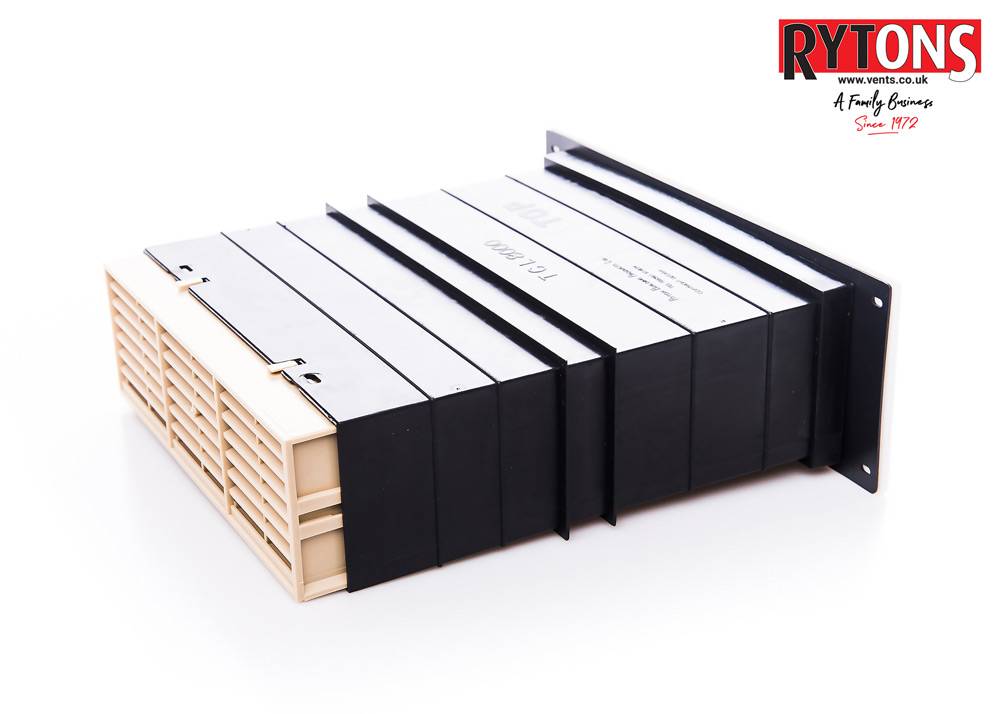

Rytons 9 x 3 Acoustic AirLiner® Set with Flush Louvre Ventilator Range
Verified by manufacturer 3 months ago
TAL4SETBB
TAL4SETBB
Plastic telescopic acoustic cavity liner set.
Application
- For ventilating boilers, stoves and fires, HETAS approved for use with solid fuel appliances.
- As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.
Description
Plastic, telescopic cavity liner set, compliant with BS 5440-2.
Features and benefits:
- Telescopic cavity liner contains an internal baffle to reduce light and draughts.
- Reduces sound by 38 dB for a more peaceful environment.
- Finished with a fixed open flush fitting louvre ventilator internally.
- External water baffles prevent transfer of water across the cavity.
- Air brick and louvre grille UV stabilized to slow down the effects of sunlight.
- Cowled option available to protect against excessive weather conditions and alleviates air blasts through the cavity.
- BRE verified equivalent area.
Components:
- Multifix® Air Brick.
- Acoustic AirLiner®.
- Louvre Grille.
- Cowl.
General information
Color | Black Brown Cream Grey Orange |
Material | Plastic Guidance for specification option:
|
Size | 220 x 71 mm Guidance for specification option: Acoustic AirLiner® with Multifix® Air Brick: (w x h). Extends from 250–368 mm L. 270 x 97 mm Guidance for specification option: Louvre Grille: (l x h). 255 x 96 x 44 mm Guidance for specification option: Cowl: (l x h x d). |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/310 Ventilators for heating appliances U90/310 Ventilators for heating appliances |
Product range |
Specification data - Ventilation ducts
Material | Plastics.Guidance for specification option:
|
Equivalent area | 5800 mm². |
Air brick | Blue/ Black. |
