A steel framed seat with steel or timber slats.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area.


Broxap’s diverse range of steel benches varies from economy seats, to heavy duty, anti-vandal benches. These are constructed from components that are 100% recyclable. Their range of steel benches and seats are available free standing, root fixed or base plate fixed.

Mild steel benches and seats are durable and can be used in areas of potential vandalism. They all undergo galvanising prior to painting. Galvanising involves dipping the product into a bath of molten zinc which then acts as a barrier between the steel and the environment. The standard to which Broxap products are galvanized is BS EN ISO 1461:2009.

Once the steel bench has completed the galvanising process, a powder coated finish in a range of RAL or BS colours, is applied. Steel benches may also be supplied in a wet paint finish.


Broxap provide attractive external benches and seats which are low maintenance, durable and ergonomically designed. Built from strong, high quality materials, benches and seats are ideal for public places in towns, cities and parks.

Supplied either root fixed or base plated, Broxap provide their benches and seats in single cast ironstainless steelconcrete and timber. For waterside applications, the stainless steel benches are also available in Grade 316. These are also great for positioning next to ponds and lakes take a look at our park benches.

Our large range of external seating is created to enhance the overall appearance of an outdoor space. Customisation options are offered to really complement their surroundings. For contemporary designs, we suggest our Nusser and ODM ranges. More traditional benches include the cast iron benches, which are constructed with heavy-duty cast iron frames and timber slats, and memorial benches for a loving and lasting tribute.

We recommend our range of cast iron or steel and timber benches for park uses, as they fit well with the natural surroundings. Our range also includes duracast polyurethane benches which require very low maintenance. These external benches are ideal for coastlines and waterside locations.

Create stylish, flexible and functional outdoor spaces with the new Northstowe Meet and Greet range from Broxap Street Furniture. From meetings on the move to creative thinking space; casual dining to community socialising areas this modular range of outdoor seating, tables and planters puts people at the heart of any landscape scheme.


Description

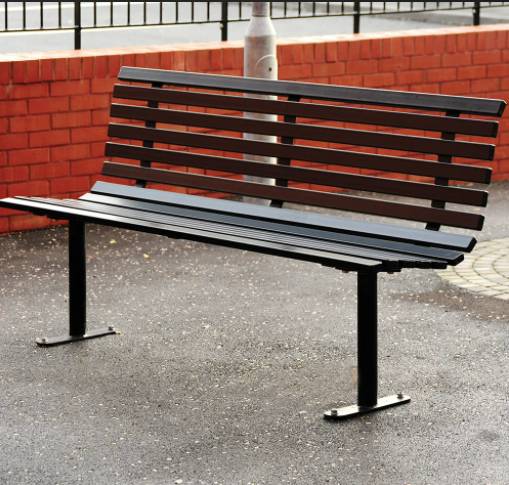

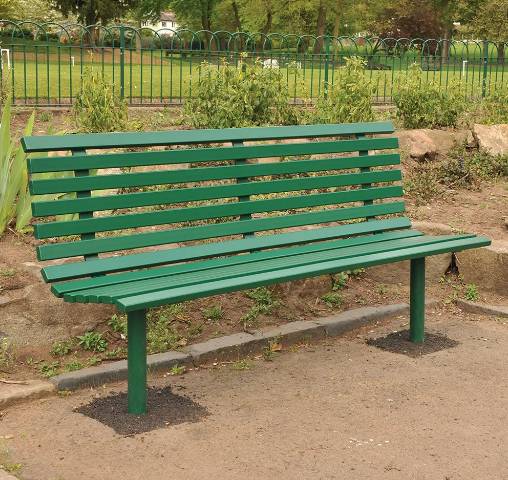

A mild steel, fully welded seat with hollow steel, hardwood or softwood slats.


Features and benefits:

  • The steel frame is available in a range of colours.
  • Memorial plaques are available.

General information

Color

Manufacturer guidance

Coating to a non standard BS/RAL colour is also available.

Finish

Galvanized

Powder-coated

Material

Steel

Timber

Shape

Rectangle

Length

1800 mm

Width

610 mm

Height

860 mm

Warranty description

One year

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/34 Seats

Q50/225 Seats

Specification data - Street and site seats

Length

1.8 m.

Base

Base plated.

Root fixed.

Material

Steel.

Guidance for specification option:

Mild steel fully welded seat with hollow slats. Anti corrosion galvanized and polyester powder coated in a single Broxap colour.

Finish as delivered

Galvanized only.

Galvanized and coated.

Colours

None.

Anthracite Grey RAL 7016.

Black RAL 9005.

Dark Blue RAL 5013.

Dark Grey BS 4800 18 B 25.

Duchess Blue BS 4800 20 C 40.

Goose Grey BS 4800 00 A 05.

Holly Green BS 4800 14 C 39.

Mid Blue RAL 5015.

Moss Green RAL 6005.

Traffic Red RAL 3020.

Traffic Yellow RAL 1023.

White Aluminium RAL 9006.

White RAL 9016.

Non standard BS/RAL colour.

Guidance for specification option:

Insert requirements.

Accessories

None.

Memorial plaque.

Three memorial plaques.

Two memorial plaques.

Without armrests.

Guidance for specification option:

As standard.

Armrests to each end.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

BBA Agrément Certificate

BBA Agrément Certificate

UKCA Marking Certification

Literature

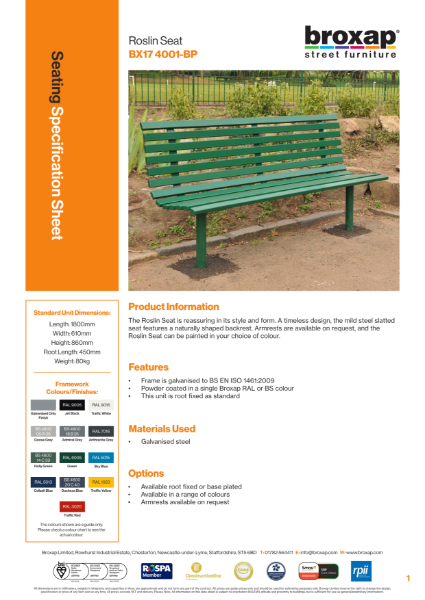

Roslin Seat Specification Sheet

Roslin Seat Specification Sheet

Case studies

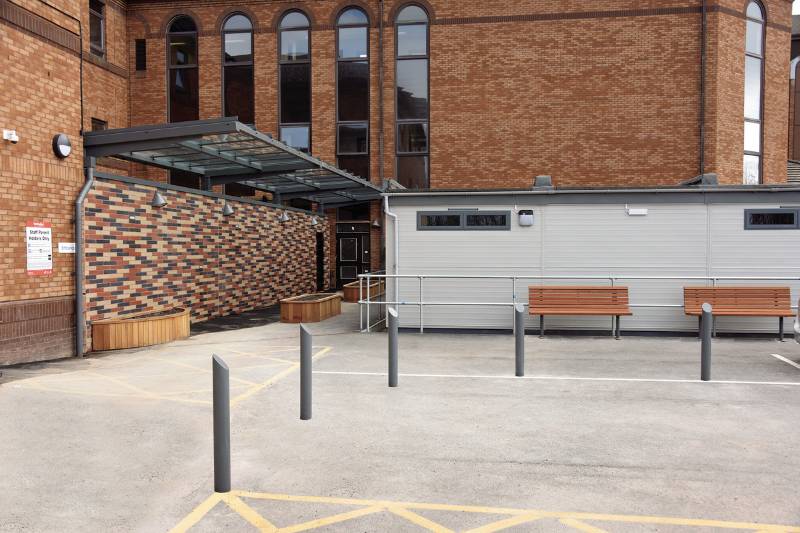

Chorley & South Ribble Hospital, Lancashire
