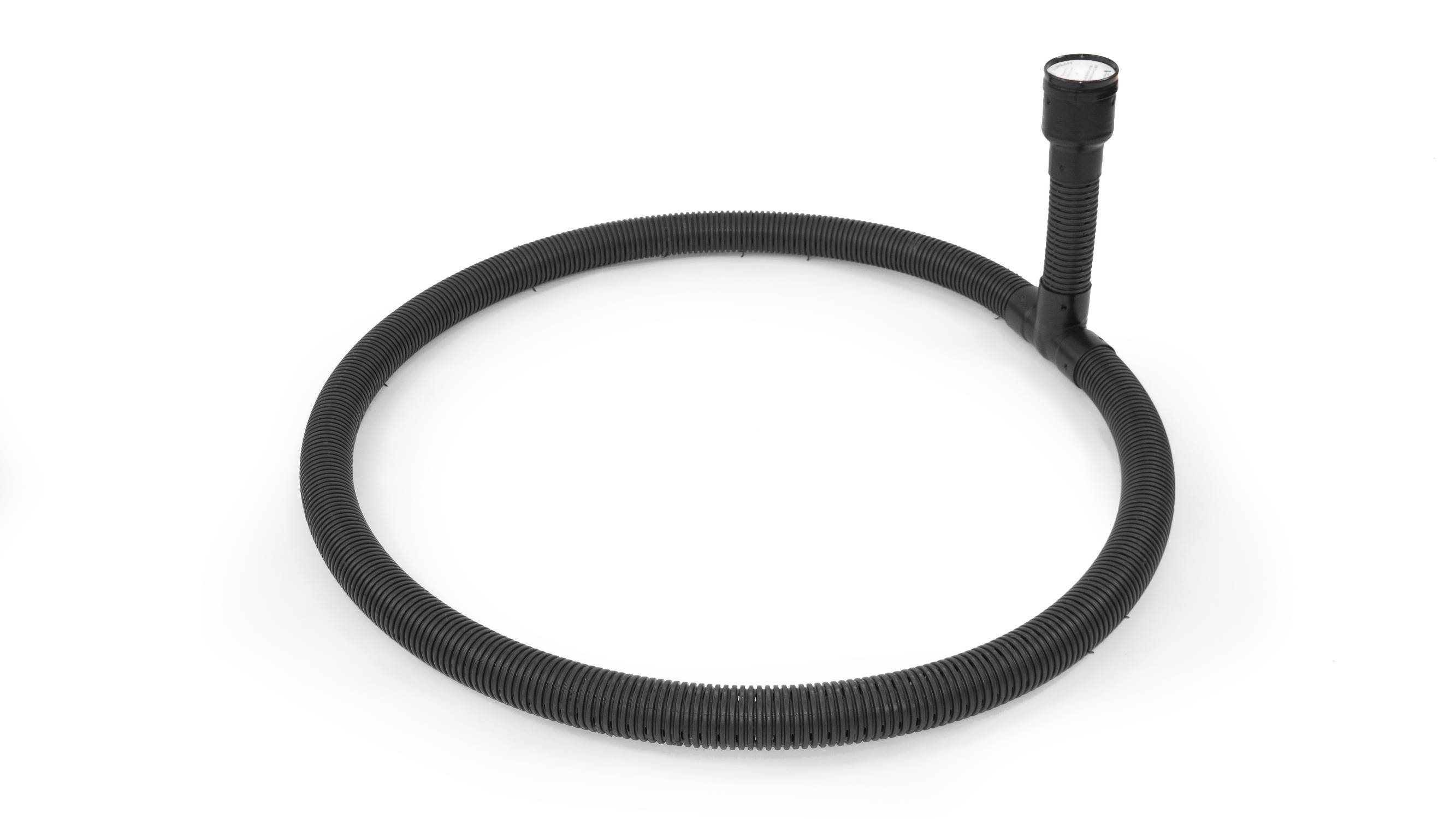

RootRain Precinct - Irrigation and Aeration for Rooting

Verified by manufacturer 3 months ago

RRPREC1C - 3 m, single inlet

GreenBlue Urban Ltd Variant:

Irrigation and aeration for rooting areas below hard surfaces.

Jump to:
+44 (0)1580 830800 Website

Application

  • Urban tree planting applications.
  • Suitable for heavily trafficked hardscape areas.

Description

RootRain Precinct 100 irrigation and aeration system maintains long-term soil health and fertility by facilitating high volumes of water and nutrients, such as oxygen, to reach the tree rooting area directly and allowing toxic gasses to escape. The Precinct 100 is designed for the irrigation and aeration of the wider tree pit but can also be used for the primary root-ball irrigation, depending on the type of tree surround being used.


Features and benefits:

  • Heavy duty cast aluminium inlet withstands over 10 t wheel loads, including street sweepers.
  • Anti-vandal lid lifts and swings to one side for fast irrigation and maintenance.
  • Removable self-cleaning device supplied with all ArborVents.
  • Concrete flange at base of ArborVent prevents slumping.
  • Constant gaseous exchange for soil health.
  • Flush mounting fits seamlessly with virtually any type of paving finish.
  • Flush finish heel-safe grating eliminates trip hazards.

General information

Color

Grey

Finish

Brushed

Material

Aluminium

Brass

Bronze

Shape

Circle

Width

60 mm

Guidance for specification option:

Pipe diameter.

100 mm

Guidance for specification option:

Inlet.

Uniclass

Pr_70_55_42_90 Tree irrigation and aeration unitsPrimary
Ss_55_70_42_60 Passive irrigation and aeration systems

CAWS

S14/110 Irrigation system

Q31/512 Tree pit irrigation and ventilation accessories

Specification data - Tree irrigation and aeration units

Pipe

-

Material

HDPE.

Colour

Black.

Circumference

3 m.

Diameter

60 mm.

Recycled content (minimum)

100%.

Water inlet

-

Number

One.

Type

Grille inlet, aluminium; 100 mm diameter.

Guidance for specification option:

Standard.

Grille inlet, brass; 100 mm diameter.

Grille inlet, bronze; 100 mm diameter.

Unit length

Guidance for specification option:

Bespoke; insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Brass

Bronze

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

GBU Target Carbon Neutral 2020.

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

100 year

Literature

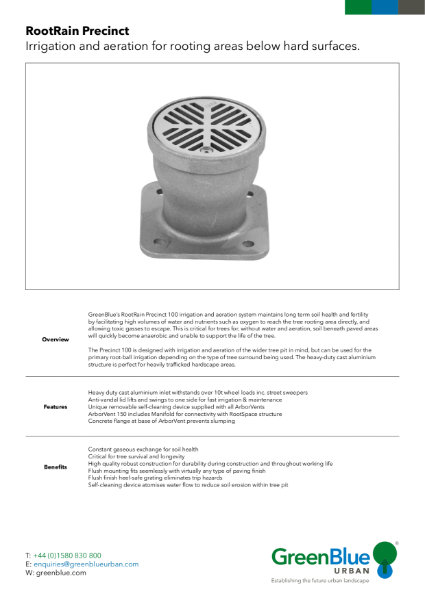

GBU RootRain Precinct Datasheet

GBU RootRain Precinct Datasheet

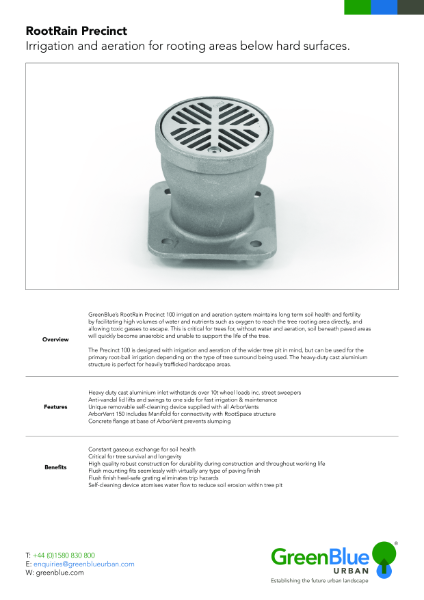

RootRain Precinct

RootRain Precinct
