Roof Hatch with Retractable Ladder and Ceiling Door

Verified by manufacturer 3 months ago

600 x 600 mm

Surespan Variant:

Surespan thermally broken roof access hatch, with an extended curb liner to fit in the ceiling void incorporating ZIP retractable ladder.

Jump to:
BOS
+44 (0)1922 711185 Website

Application

Roofs

Description

Thermally broken single leaf roof hatches manufactured in aluminium with an optional internal or external polyester powder coated finish. The gas spring assisted opening lid is supported by heavy-duty stainless steel hinges and fixings.

Heavy Duty Retractable Ladder to suit a range of floor to ceiling heights and finished with a void liner and ceiling access door. Additional ladder sections or treads may be required. Consult manufacturer.


Features and benefits:

  • Thermal break.
  • Hold open stay and heavy duty aluminium hinges.
  • Range of heights and sizes.

General information

Material

Aluminium

Guidance for specification option:

Mill finish as standard.

Stainless steel

Warranty description

Ten year

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L20/630 Hatches

Product range

Roofing

Specification data - Framed rooflights

Size

600 x 600 mm

Accessories

None.

Extended skirt liner.

Guidance for specification option:

Used in conjunction with retractable ZIP ladder.

Fixed external handhold.

Retractable ZIP ladder.

SureGuard hand railing.

Product Reference

SRHG

Material

Aluminium

Guidance for specification option:

Mill finish as standard.

Stainless steel

Upstand

200 mm thermally broken and insulated.

300 mm thermally broken and insulated.

Guidance for specification option:

As.standard.

385 mm thermally broken and insulated.

Guidance for specification option:

Superior insulation only.

Operation

24 V electric motors.

Concealed electric motors.

Fixed glazed skylight.

Gas springs.

Locking options

L01 Cablock.

Guidance for specification option:

As.standard.

L02 Cablock with hasp and staple.

L04 Cablock with external padlocking handle.

Insulation

50 mm HCFC and CFC free polyisocyanurate - U-value of 0.43 W/m²K.

Glazing

35.5 mm Double Glazed unit with Pilkington 6 mm toughened K polished all round outer pane, 20 mm Warm Edge silver spacer Bar argon filled, Pilkington 9.5 mm toughened and laminated inner panel.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

7

IFC

IFC2X3

5

Similar products from Surespan

Dome AOV Roof Top Smoke Ventilator

Dome AOV Roof Top Smoke Ventilator

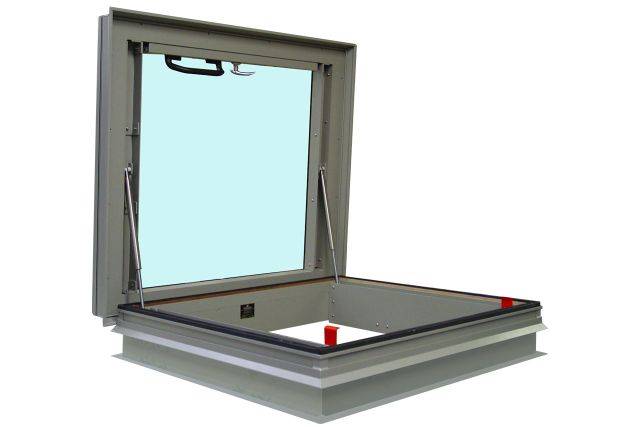

Glazed Roof Hatch

Glazed Roof Hatch

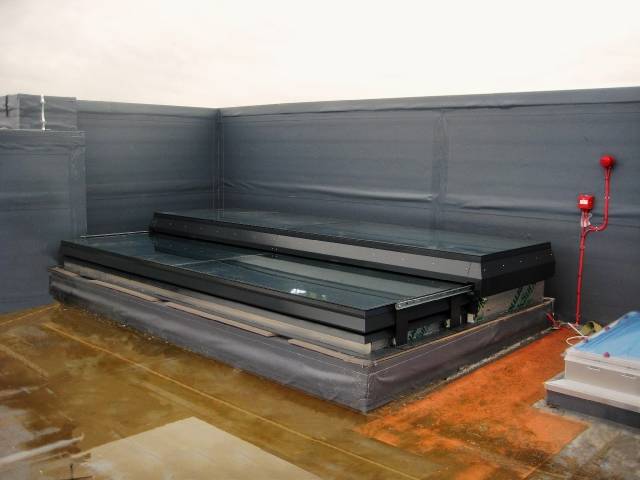

Sliding Glass Rooflight

Sliding Glass Rooflight

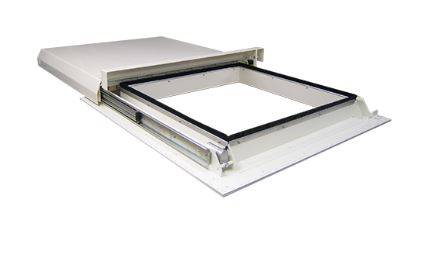

Sliding Roof Access Hatch - SLHD

Sliding Roof Access Hatch - SLHD

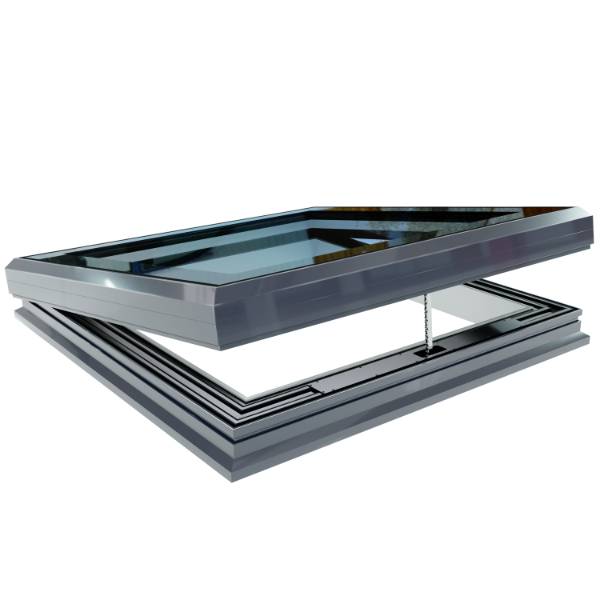

Sunsquare Aero Access Opening Skylight - Electrically Operated Rooflight
