Rockspan® Range - External Insulated Sandwich Panel

What We Do

EuroClad are an international supplier of architectural metal building solutions to the construction industry.

We manufacture highly engineered building envelope products including roof and wall cladding systems, insulated sandwich panels and architectural flashings and fabrications.

Quality & Durability

Our Eurobond Panels complying with:

• BS EN ISO 14001 panels are manufactured under Environmental Management System Certification.
• BS EN ISO 9001 standard, ensuring long term reliability and service life.
• BS EN ISO 45001 Occupational Health and Safety Certification.
• BS EN ISO 37301 Compliance Management Systems
• CE marked to BS EN 14509: 2013.

Fire Performance

The Rockspan Range offers a Euroclass A2-s1, d0 classification for Reaction to Fire when tested and classified to BS EN 13501-1:2018.

The Rockspan Range can also offer fire resistance performances from 60 minutes up to 4 hours Insulation and Integrity (to BS EN 1364-1:2015) depending on thicknesses and orientation. Specific performances should be verified by our technical team on a project-by-project basis, to the correct standards.

Rockspan

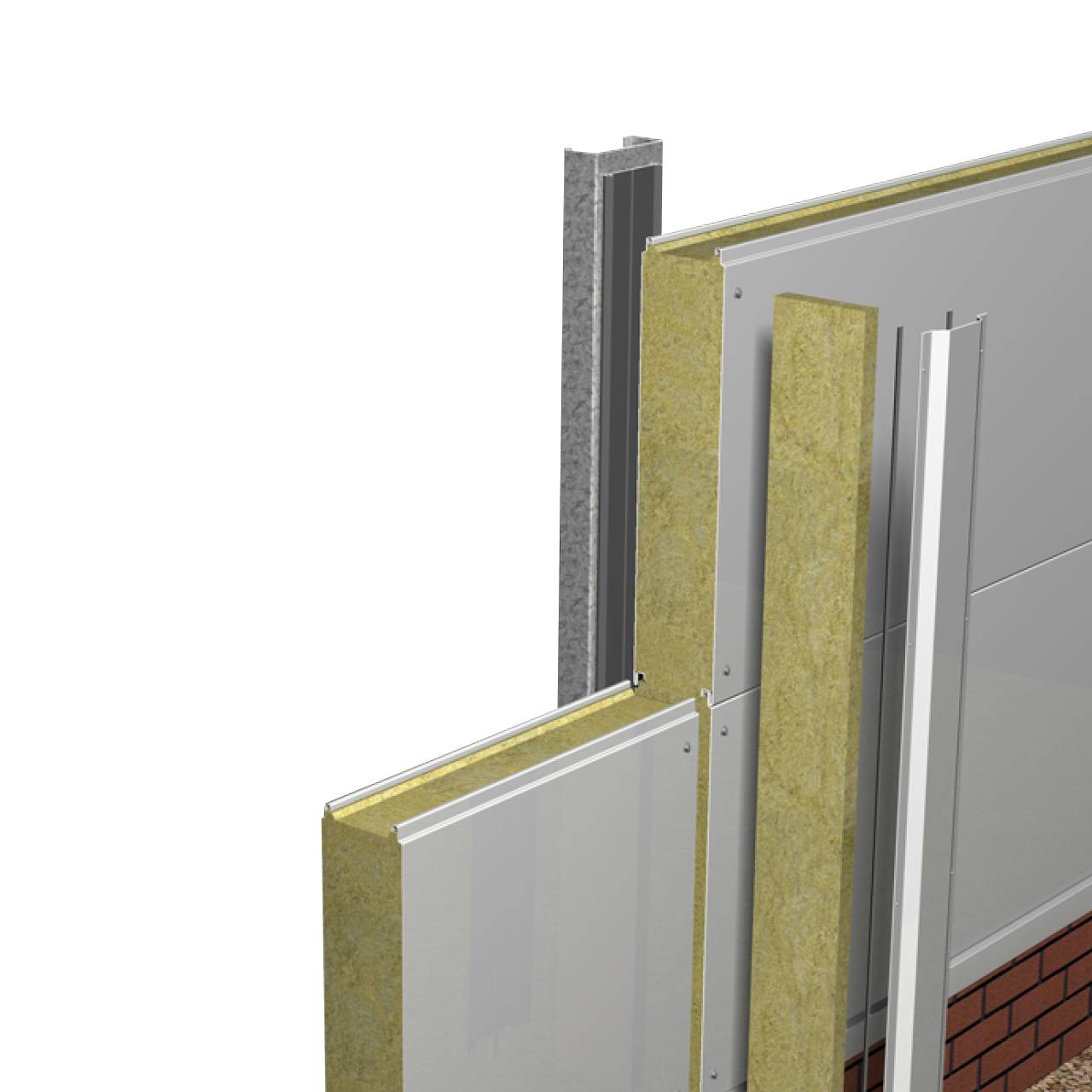

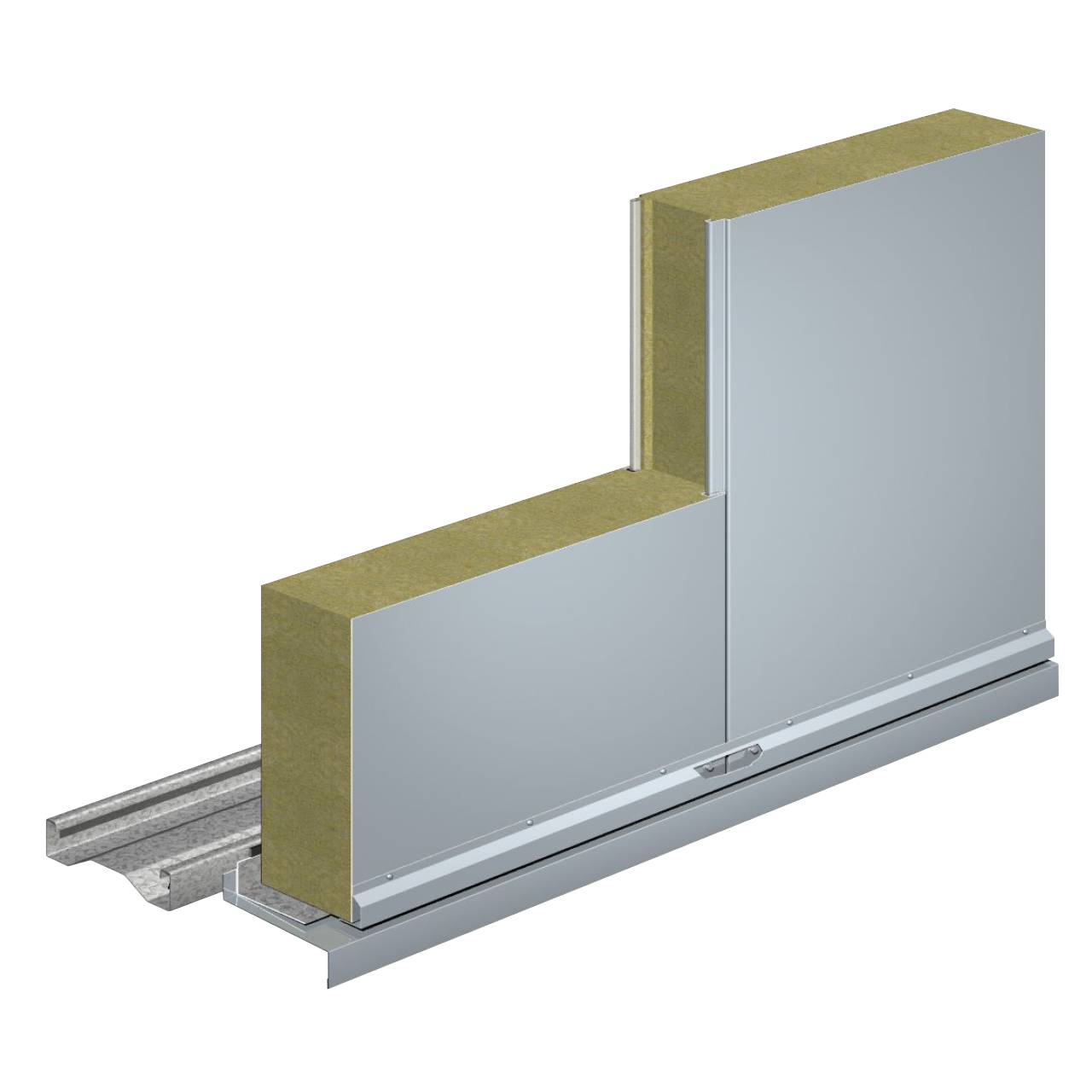

The Rockspan Range of external sandwich wall panels offer a through-fix joint detail to minimise construction time. These panels can be installed in both vertical and horizontal orientation and can be finished in a satin line or flat profile.

A building solution suitable for a wide range of applications and specifiable in an array of colours. Panels are also available with a distinctive V-Groove profile that can be installed both vertically and horizontally across the building facade.

Features and benefits:

• Lengths 1800–12 500 mm.
• Widths 1000 or 1200 mm.
• 1100 mm Maximum width for export.
• 115 kg/m³ density stone wool core.
• CE marked.
• Through-fix detail to minimise construction time.
• Vertical or horizontal installation.
• Lengths subject to verification for fire/structural performance.
• Nominal 0.5 mm or 0.7 mm external steel face, in a range of coatings and colours.

Sustainability:

The Euroclad Group is built on a foundation with sustainability at the core, the company has been a keen advocate of environmental standards achieving BES 6001, and through the Planet Passionate sustainability programme, we continue to push even further in achieving ambitious sustainability targets.

In 2024, Euroclad was awarded a Gold Medal by EcoVadis, the world's largest provider of sustainability ratings to assessed businesses.
