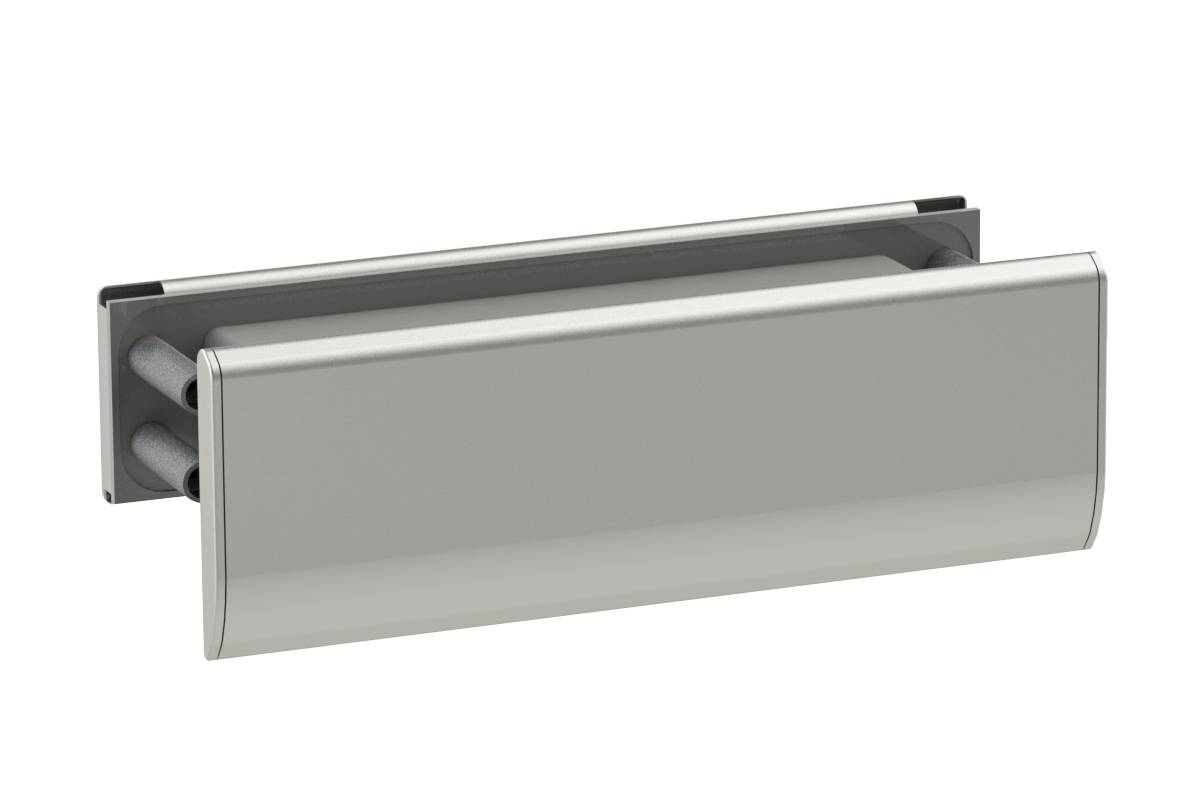

RJ007 Slimline Letterplate
Verified by manufacturer 6 months ago
RJ007-LP30SIL - 30 min Fire Resistance / Silver
RJ007-LP30SIL - 30 min Fire Resistance / Silver
Certifire Certificate
Certificate type
Fire and security letterplate.
Application
Suitable for use on 44 mm timber doors and 54 mm timber doors.
Description
The RJ007 letterplate is stylish, slimline and secure. Designed to meet the exacting security standards of TS 008:2015, it is tested to withstand a series of physical tests based on the common methods of burglary.
Providing up to 60 minutes fire resistance, this high performance letterplate is available in a range of finishes to complement the aesthetics of any door.
Features and benefits:
- Tested to TS 008:2015.
- Slimline profile.
- Internal projection only 14 mm.
- No visible fixings.
- Anti-vandal® feature.
- 37° opening to protect against 'key fishing'.
- Quick and easy to install.
- Can withstand thousands of openings.
- Smooth working mechanism.
Test evidence:
- Fire: BS 476-22:1987 in an FD30.
- Fire: BS 476-22:1987 in an FD60.
- Smoke: BS EN 1634-3:2004.
- Security: PAS 24:2016.
- Classified to TS 008:2015.
- Durability: 20 000 cycles.
General information
Color | Silver Black White Gold Other Guidance for specification option: Available in silver, chrome, satin chrome, gold, black and white. |
Finish | Anodized |
Material | Aluminium Intumescent |
Shape | Rectangle |
Length | 300 mm |
Width | 14 mm |
Height | 99 mm |
Uniclass | |
CAWS | L20/280 Doors L20/55 Doorsets L20/480 Doorsets L20/430 Wood doorsets L20/420 Wood doorsets L20/410 Wood doorsets L20/25 Wood panelled doors L20/20 Wood flush doors L20/250 Wood panelled doors L20/230 Wood flush doors L20/30 Wood doors L20/270 Wood doors P21/52 Letter plates P21/730 Letter plates |
Specification data - Letter plates
Standard | To TS 008:2015. |
Third-party certification | Certfire (CF5688); Kitemark (KM670828). |
Fire resistance | To BS 476-22:1987, 30 minutes. |
Operation | Outward opening gravity flap. |
Size | 300 x 99 mm. |
Material and finish | Aluminium outer casing with an intumescent lining. |
Colour | Silver. |
Security | BSI certified for PAS 24:2016. Secured by Design accredited. |
Classification | TS008:2015. |
Durability | 20 000 cycles. |
Projection | 14 mm. Manufacturer guidanceInternal projection. |
Door thickness | 44 mm. 54 mm. Manufacturer guidanceTimber door thickness. |
Smoke control | To BS EN 1634-3:2004. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
Certifire Certificate
Certifire CF5688
Literature

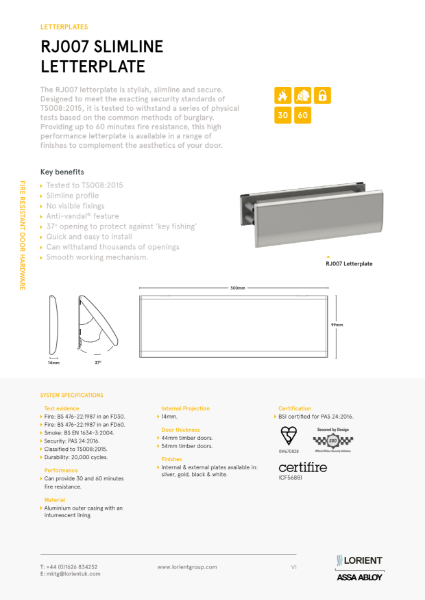

RJ007 datasheet
Fire resistant door hardware protection brochure
RJ007 FD30 fitting instruction

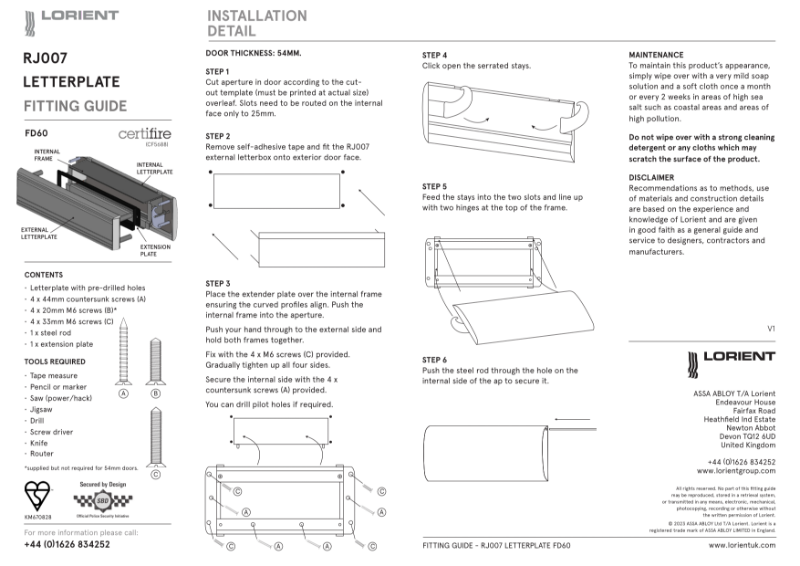

RJ007 FD60 fitting instruction
