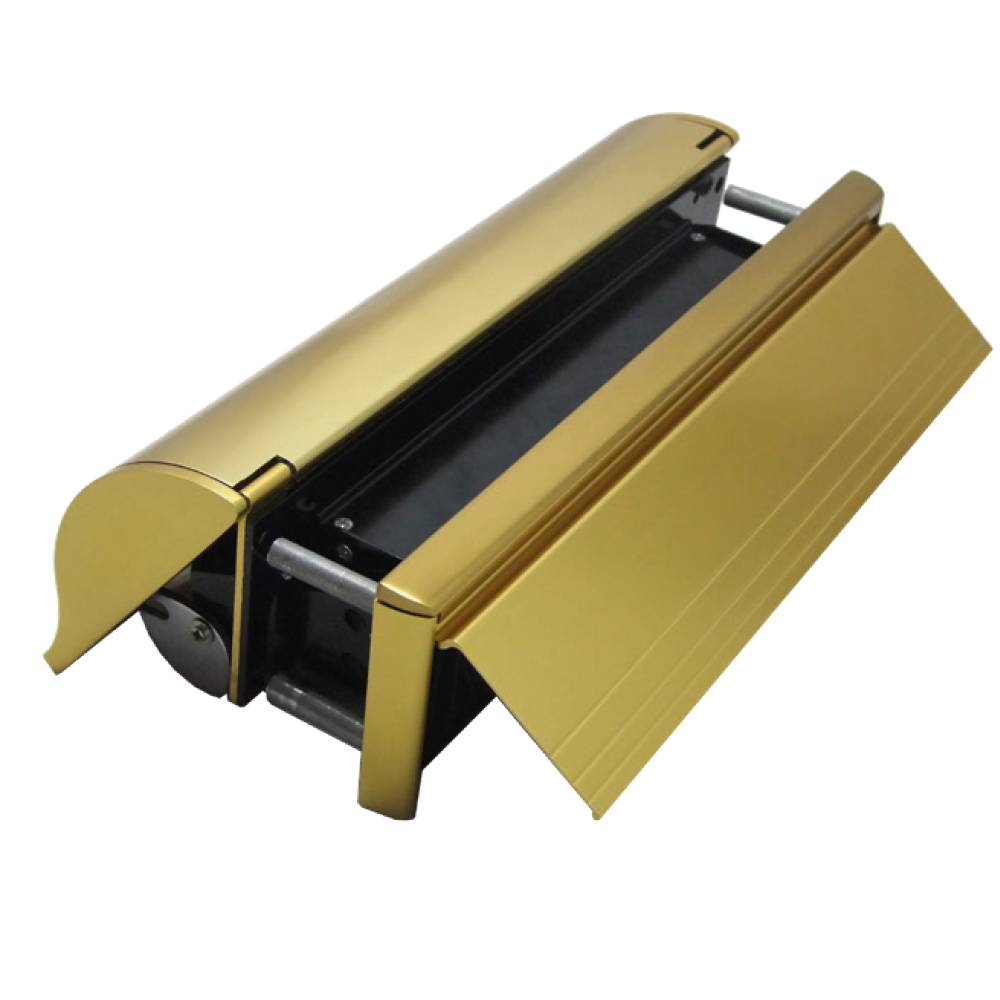

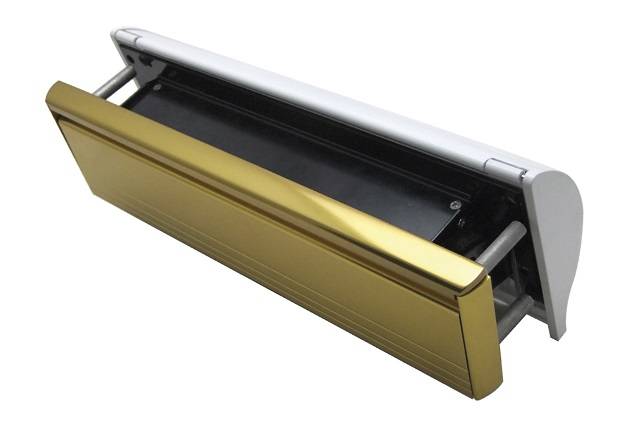

RJ008 Fire and Security Letterplate
Verified by manufacturer 5 months ago
Certifire Certificate
Certificate type
Security and fire resistant letterplate.
Application
- 44mm timber door.
- 54mm timber door.
Description
A heavy duty door letterplate.
Features and benefits:
- Designed to meet the exacting security standards of TS008, the RJ008 letterplate is tested to withstand a series of physical tests based on the common methods of burglary.
- Providing up to 60 minutes fire resistance, the high-performance letterplate is available in several stylish finishes.
- Tested to TS008.
- No visible fixings.
- Anti-vandal® feature.
- 37° opening to protect against 'key fishing'.
- Quick and easy to install.
- Can withstand thousands of openings.
- Smooth working mechanism.
- Classified to TS008.
Internal frame size:
- Letterplate length: 300 mm.
- Letterplate height: 115 mm.
- Projection: 40 mm.
External frame size:
- Distance between screw holes: 277 mm.
- Letterplate length: 305 mm.
- Letterplate height: 77 mm.
- Mail aperture: 53 x 260 mm.
General information
Color | Gold Silver Black White |
Finish | Anodized Polished |
Material | Aluminium Intumescent Manufacturer guidanceAluminium outer casing with an intumescent lining. |
Shape | Other |
Length | 300 mm 305 mm |
Width | 300 mm Manufacturer guidanceInternal frame sizes 300mm x 115mm. Projection: 35mm. External frame sizes 305mm x 77mm. Distance between screw holes: 277mm. Mail aperture: 53mm x 260mm. |
Height | 77 mm 115 mm |
Uniclass | |
CAWS | L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/55 Doorsets P21/52 Letter plates P21/730 Letter plates |
Specification data - Letter plates
Third-party certification | Certifire.Guidance for specification option: CF5688. |
Fire resistance | To BS 476-22:1987, 30 minutes.Guidance for specification option: FD30. To BS 476-22:1987, 60 minutes.Guidance for specification option: FD60. |
Size | 305 x 77 mm. |
Material and finish | Anodized aluminium.Guidance for specification option: Aluminium outer casing with an intumescent lining. Polished aluminium.Guidance for specification option: Aluminium outer casing with an intumescent lining. |
Colour | Gold.Polished.Silver. |
Door thickness | 44 mm. 54 mm. |
Durability | 20 000 cycles. |
Security | PAS 24:2016. Classified to TS008:2015. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
Certifire Certificate
Certifire CF5688
Literature

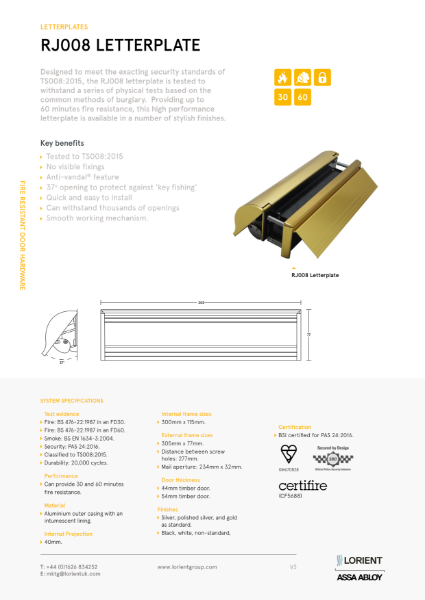

RJ008 letterplate datasheet
RJ008 letterplate FD30 fitting instructions
RJ008 letterplate FD60 fitting instructions
Fire resistant door hardware protection brochure
