Risycor CXE-Fix Set
Description

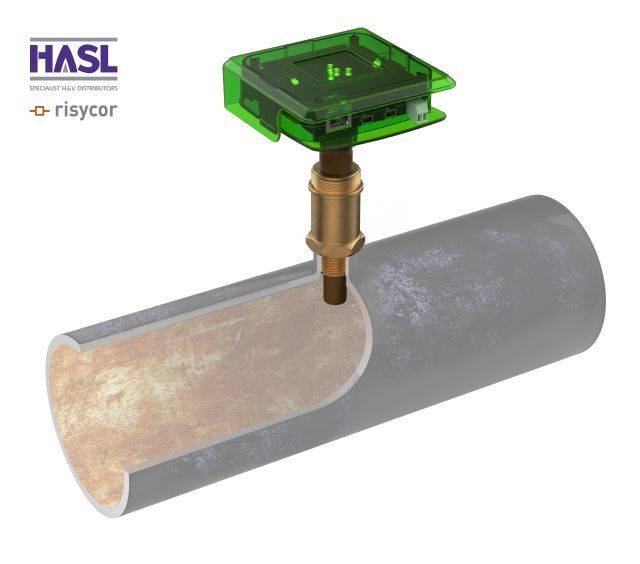

The Risycor CXE corrosion monitor with alarm function designed for heating and cooling systems and provides remote readout of data through ethernet (within LAN) using a web browser. Mounted perpendicular to the pipe with the threaded connector X-fix, which places the metal coupon at the tip of the probe in the water flow. The oxidation of this coupon is representative of the uniform corrosion within the system. The logger records the corrosion rate against time and warns of inadmissible values or a defect. The memory can be read out with a computer.

Components:

  • Risycor CXE Logger.
  • Risycor CX Probe.
  • X-Fix (threaded connector).
  • Mains adaptor.
  • Risycor CXE-fix set.

General information

Uniclass 2015

Pr_80_51_51_15 Corrosion monitorsPrimary
Specification data - Corrosion monitors

Product Reference

Risycor CXE-Fix Set

Standard product features

Outputs (signals, alarm):

  • Visual: Various LEDs for display of operating and alarm status.
  • USB: Memory readout.
  • Wired network: Readout through ethernet (within LAN) using a web browser.
  • Volt-free contact for: Building management system, remote surveillance, other signal transmitter (SMS module, audible alarm, flashing light etc.), shutting down of the boiler.
  • Alarm in case of: Corrosion rate too high (adjustable), fault in the corrosion monitor, end of the service life of the metal coupon on the probe.

Technical characteristics:

- Physical:

  • Pressure range: 0–6 bar.
  • Temperature range: 5–95°C, integrated temperature compensation.
  • Environment: 0–45°C, no condensation.
  • Storage: -20 to +60°C.
  • Risycor CX probe: Polyphenylene sulfide (PPS).
  • Risycor CXE logger: Polycarbonate (PC).
  • Coupon: Fe.
  • X-fix threaded connector: Brass CW614N.

- Electrical:

  • Mains adaptor: CEE 7/16, 230 V a.c., 50 Hz.
  • 5 V d.c. mini-USB.
  • Power consumption: 6 W.
  • Volt-free contact – nominal; 24 V d.c./V a.c., 100 mA, maximum; 48 V d.c./V a.c., 2 A, 60 W.
  • RJ45.
  • IP52.

- Other:

  • Capacity of the memory: 10+ years.
  • Data storage: every seven hours.

- Dimensions:

  • Risycor CXE Logger: 101 x 104 x 32 mm.
  • Risycor CX Probe: 20 mm diameter x 135 mm.
  • X-fix thread connector: 34 mm diameter x 70 mm with R1/2¨ thread (maximum 25 mm deep).
  • Total weight: 860 g.
