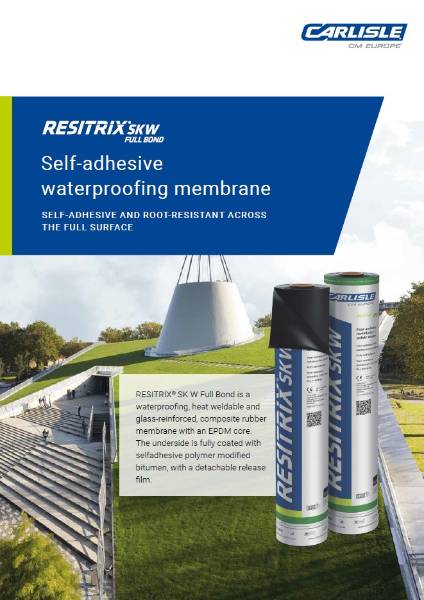

RESITRIX® SK W Full Bond

Description

A heat weldable and glass- reinforced, composite rubber membrane with an EPDM core.The underside is fully coated with self-adhesive polymer modified bitumen, with a release film.

Benefits:

  • Life expectancy of decades
  • Fully elastic down to temperatures of -30°C
  • Resistant to the effects of ozone, UV and infrared radiation without additional surface protection.
  • Resistant to a wide range of environmental chemicals and atmospheric emissions.
  • Compatible with bitumen.
  • Contains no chlorine and plasticizers.
  • Highly slip resistant even when wet.
  • No shrinkage throughout the entire service life.
  • Recyclable.
  • Root resistance according to FLL-Procedure and BS EN 13948.

Fixing:

  • Self- adhesive application on surfaces fully primed with FG 35 primer.
  • Self- adhesive application on surfaces partly primed with FG 35 primer.
  • Self- adhesive application without FG 35 primer, where the substrate consists of a fresh coating of bitumen.
  • Application without FG 35 primer, with additional mechanical fastenings (including provisional bonding).

General information

Uniclass 2015

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J41/115 Single layer reinforced bitumen membrane warm deck roof covering

J41/125 Single layer reinforced bitumen membrane inverted roof covering

J41/135 Single layer reinforced bitumen membrane cold deck roof covering

J41/405 Single layer reinforced bitumen waterproof covering

J42/110 Warm deck roof covering

J42/120 Inverted roof covering

J42/130 Cold deck roof covering

J42/400 Waterproof membrane

Q37/110 Intensive green roof

Q37/130 Extensive green roof

Specification data - Polymeric membranes

Product Reference

RESITRIX® SK W Full Bond

Fixing

Fully primed with FG 35 primer

Partly primed with FG 35 primer

With additional mechanical fasteners

Without primer

Standard product features

Size (w x l):

1 x 10 m.

Thickness:

2.5 mm ± 10%.

Weight:

2.75 kg/m².

General:

- Tensile strength to DIN EN 12311-2:

  • Longitudinal: 361 N/50 mm.
  • Transverse: 333 N/50 mm.

- Elongation at break to DIN EN 12311-2:

Longitudinal and transverse: 600%.

- Dimensional stability after six hours at 80°C to DIN EN 1107-2:

  • Longitudinal: + 0.1 %.
  • Transverse: + 0.2 %.

- Fire behaviour to DIN 4102-1:

B 2.

- Reaction to fire to DIN EN 13501-1:

Class E.

- Fire behaviour to DIN 4102-7 and DIN EN 1187:

Resistant to flying sparks and radiating heat.

Third party certifications

  • 06/4329
  • European Technical Approval: ETA-06/0257
