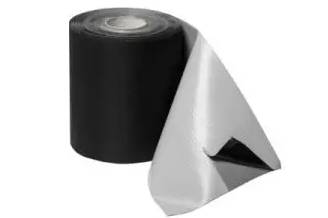

ARBO Easy Stick GS EPDM - EPDM Strip with Fibreglass Reinforcement

Verified by manufacturer 2 days ago

Carlisle Construction Materials Limited

Long lasting EPDM strip, with fibreglass reinforcement and a self-adhesive butyl underlay, designed to provide durability and a watertight building.

Jump to:
+44 (0)1623 627285 Website

Application

  • Arbo Easy Stick GS EPDM can provide a wind and damp proof membrane for construction buildings.
  • Suitable for use in many construction applications including sealing window and door frames, cavity walls and roof gutters.

Description

Arbo Easy Stick GS EPDM is a long lasting EPDM strip, with fiberglass reinforcement and a self-adhesive butyl underlay, designed to provide durability and a watertight building.


Arbo Easy Stick GS EPDM is 1.3 mm thick including a butyl backing that can provide a wind and damp proof membrane for construction buildings.


Supplied in 20 m reels, 1 m wide (that can be slit to size) and can be used for many construction applications. Due to the fiberglass reinforcement layer, the product is made even stronger and can handle movements in the building.


Features and benefits:

  • Naturally UV-resistant.
  • Permanently flexible.
  • Resistant to extreme temperature variations.
  • Expected lifespan of 50 years under normal conditions.
  • Complies to EN 13967/ EN 13984.

General information

Color

Black

Material

EPDM

Butyl

Shape

Other

Guidance for specification option:

Roll.

Length

20000 mm

Width

1000 mm

Height

1.3 mm

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

F30/46 Damp-proof course – plastics

F30/320 Damp-proof courses – plastics

J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane

J42/400 Waterproof membrane

J42/28 Waterproof membrane

J42/130 Cold deck roof covering

J42/110 Warm deck roof covering

J42/120 Inverted roof covering

J42/10 Warm deck roof covering

Specification data - Polymeric membranes

Material

Ethylene propylene diene monomer (EPDM).

Standard

To BS EN 13948.

Performance characteristics

-

Reaction to fire

To EN 13501-1, Class E.

Watertightness

To EN 1928, pass.

Tensile properties

To EN 12311-2, ≥6 N/mm².

Tear resistance

To EN 12310-1, ≥50 N.

Recycled content

None permitted.

Width (minimum)

1 m.

Guidance for specification option:

As standard.

Other.

Guidance for specification option:

Can be cut to suit in 50 mm intervals. Consult manufacturer and insert requirements.

Thickness (minimum)

1.3 mm.

Colour

Black.

Shear resistance of joints (to EN 12317-2)

To EN 12317-2, ≥200 N/50 mm.

Water vapour transmission

To EN 1931, 170.000.

Elongation to break

To EN 12311-2B, ≥400%.

Weight (minimum)

1.4 kg/m².

Roll length (minimum)

20 m.

Reinforcement

Fibreglass reinforcement.

Adhesive

Self-adhesive butyl underlay.

Sustainability data

Material

EPDM

Butyl

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

50 year

Similar products from Carlisle Construction Materials Limited

Hertalan Easy Cover

Hertalan Easy Cover

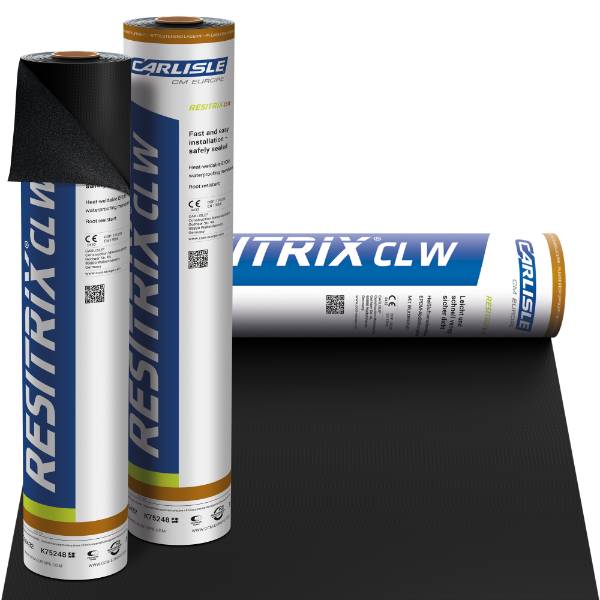

RESITRIX® CL
