NBS Source

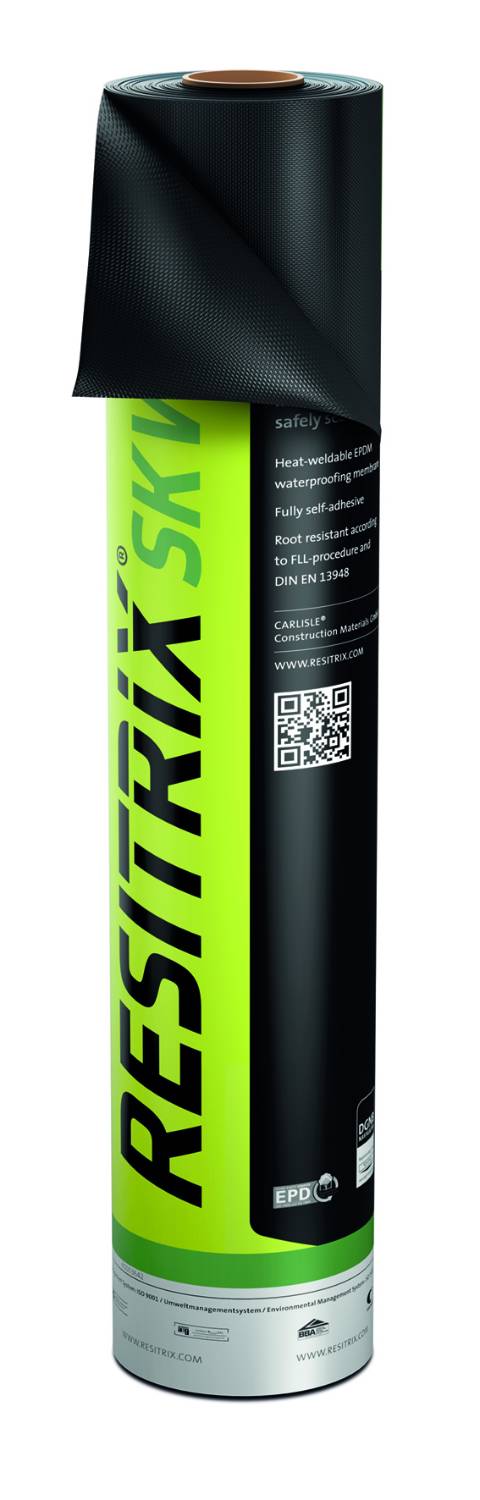

RESITRIX® SK W Full Bond

Verified by manufacturer 5 months ago

Carlisle Construction Materials Limited Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Fully self-adhesive and root resistant waterproofing membrane.

Jump to:
+44 (0)1623 627285 Website

Application

Suitable for use in substrates requiring waterproofing.

Description

A heat weldable and glass-reinforced, composite rubber membrane with an EPDM core. The underside is fully coated with self-adhesive polymer modified bitumen, with a release film.


Features and benefits:

  • Life expectancy of decades.
  • Fully elastic down to temperatures of -30°C.
  • Resistant to the effects of ozone, UV and infrared radiation without additional surface protection.
  • Resistant to a wide range of environmental chemicals and atmospheric emissions.
  • Compatible with bitumen.
  • Contains no chlorine and plasticizers.
  • Highly slip resistant even when wet.
  • No shrinkage throughout the entire service life.
  • Recyclable.
  • Root resistance according to FLL-Procedure and BS EN 13948.

General information

Color

Black

Finish

Anti-slip

Material

Rubber

EPDM

Bitumen

Shape

Rectangle

Length

10000 mm

Width

1000 mm

Height

2.5 mm

WarrantyDescription

20 year

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J41/115 Single-layer reinforced bitumen membrane warm deck roof covering

J41/125 Single-layer reinforced bitumen membrane inverted roof covering

J41/135 Single-layer reinforced bitumen membrane cold deck roof covering

J41/405 Single-layer reinforced bitumen waterproof covering

J42/110 Warm deck roof covering

J42/120 Inverted roof covering

J42/130 Cold deck roof covering

J42/400 Waterproof membrane

Q37/110 Intensive green roof

Q37/130 Extensive green roof

Product range

Roofing Membranes

Specification data - Polymeric membranes

Material

Ethylene propylene diene monomer (EPDM); Rubber; Glass.

Standard

To DIN EN 13956, DIN EN 13967, DIN 18531, DIN 18195, DIN 18532, DIN 18533, DIN 18534, DIN 18535.

Performance characteristics

Root-resistant to DIN EN 13948.

Third-party certification

British Board of Agrément (BBA) Certificate, QA Certificate.

Width (minimum)

1000 mm.

Thickness (minimum)

2.5 mm (± 10%).

Colour

Black.

Accessories

Not required.

FG35 Primer.

Fixing

Fully primed with FG 35 primer.

Self- adhesive application on surfaces fully primed with FG 35 primer.


Partly primed with FG 35 primer.

Self- adhesive application on surfaces partly primed with FG 35 primer.


With additional mechanical fasteners.

Application without FG 35 primer, with additional mechanical fastenings (including provisional bonding).


Without primer.

Self- adhesive application without FG 35 primer, where the substrate consists of a fresh coating of bitumen.


Weight

2.75 kg/m².

Tensile strength (to EN 12311-2)

Longitudinal: 361 N/50 mm; Transverse: 333 N/50 mm.

Elongation at break (to EN 12311-2)

Longitudinal and transverse: 600%.

Dimensional stability (to EN 1107-2)

Longitudinal: +0.1 %; Transverse: +0.2 %.

Dimensional stability after six hours at +80°C.

Flammability (to DIN 4102)

Fire behaviour to DIN 4102-7 and DIN EN 1187:

  • Resistant to flying sparks and radiating heat.

B2.

Reaction to fire (to EN 13501-1)

Class E.

Environmental information

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Recyclable

Literature

RESITRIX SKW

RESITRIX SKW

RESITRIX Installation

RESITRIX Installation

Case studies

Earth Trust

Earth Trust

Third party certifications

  • 06/4329
  • European Technical Approval: ETA-06/0257
