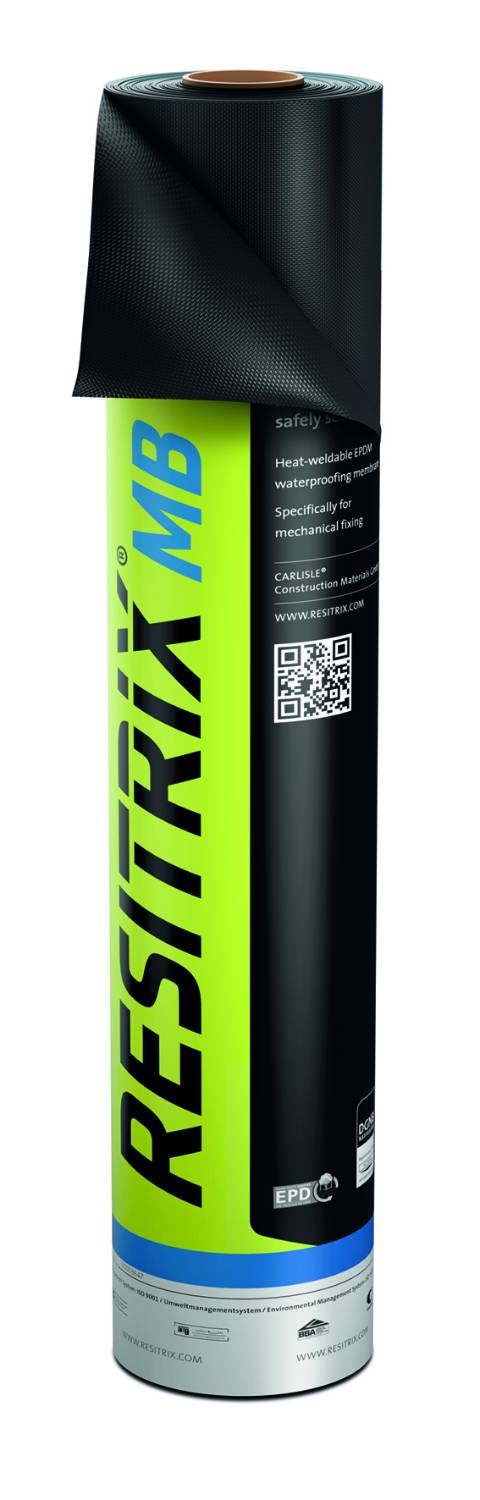

RESITRIX® MB

Name: RESITRIX® MB
Brand: Carlisle Construction Materials Limited
SKU: gxdwamQxhBjXymaHQ1CDg

Verified by manufacturer 9 months ago

Carlisle Construction Materials Limited

Mechanically fixed waterproofing membrane.

Jump to:

+44 (0)1623 627285 Website

Application

Suitable for substrates requiring a mechanically fixed waterproofing membrane.

Description

A heat weldable and glass- reinforced, composite rubber membrane with an EPDM core. The underside has a polymer modified bitumen coating, with PE separating film.

Features and benefits:

Fully elastic down to temperatures of -30°C.
Resistant to the effects of ozone, UV and infrared radiation without additional surface protection.
Resistant to a wide range of environmental chemicals and atmospheric emissions.
Compatible with bitumen.
Contains no chlorine and plasticizers.
Highly slip resistant even when wet.
No shrinkage throughout the entire service life.
Life expectancy of decades.
Recyclable.

General information

Color	Black
Finish	Anti-slip
Material	EPDM Rubber Bitumen
Shape	Rectangle
Length	10000 mm
Width	1000 mm
Height	3.1 mm
Warranty description	20 year

Uniclass	Pr_25_57_51_66 Polymeric membranesPrimary
CAWS	J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering J41/405 Single-layer reinforced bitumen waterproof covering J42/110 Warm deck roof covering J42/120 Inverted roof covering J42/130 Cold deck roof covering J42/400 Waterproof membrane

Product range	Roofing Membranes

Specification data - Polymeric membranes

Material	Ethylene propylene diene monomer (EPDM); Rubber; Glass.
Standard	To DIN EN 13956, DIN EN 13967, DIN 18531, DIN 18195, DIN 18532, DIN 18533, DIN 18534 and DIN 18535.
Third-party certification	British Board of Agrément (BBA) Certificate; QA Certificate.
Width (minimum)	1 m.
Thickness (minimum)	3.1 mm (± 10%).
Colour	Black.

Fixing	Fully bonded with hot bitumen. Loose laid with mechanical fixing. Loose laid with ballast.
Weight	3.5 kg/m².
Tensile strength (to EN 12311-2)	Longitudinal: 361 N/50 mm; Transverse: 333 N/50 mm.
Elongation at break (to EN 12311-2)	Longitudinal and transverse: 600%.
Dimensional stability (to EN 1107-2)	Longitudinal: + 0.1 %; Transverse: + 0.2 %. Guidance for specification option: Dimensional stability after six hours at +80°C.
Flammability (to DIN 4102)	B2. Manufacturer guidance Fire behaviour to DIN 4102-7 and DIN EN 1187: Resistant to flying sparks and radiating heat.
Reaction to fire (to EN 13501-1)	Class E.

Sustainability data

Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	- Manufacturer guidance Recyclable.

Literature

RESITRIX® MB

RESITRIX Product Brochure

RESITRIX Installation Guide
